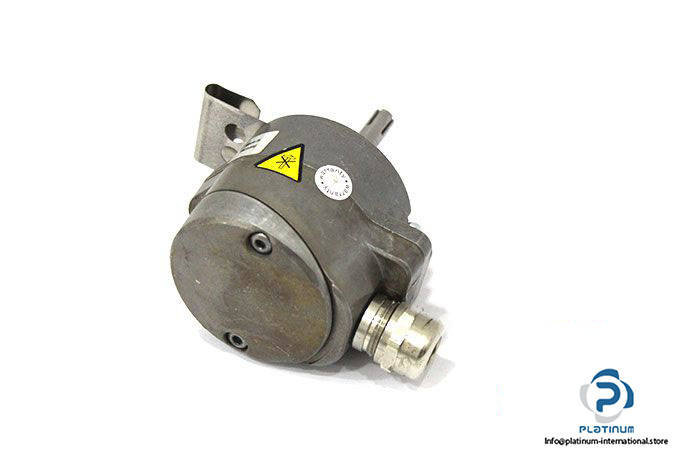

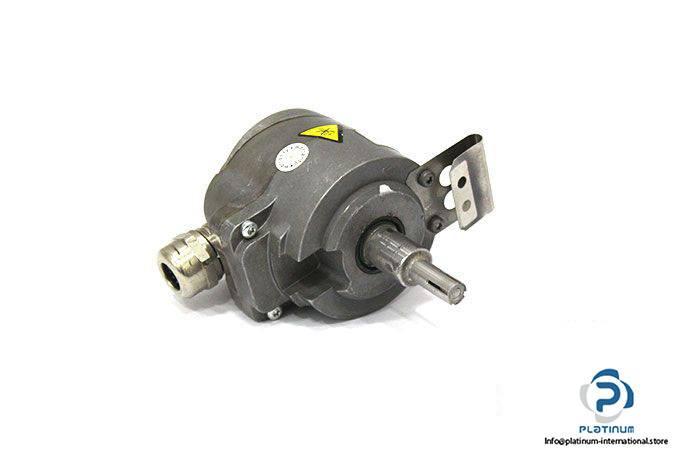

SEW ES1C 1858661 Incremental Rotary Encoder
Gebraucht
Auf Anfrage verfügbar
445,00$
INCREMENTAL ROTARY ENCODER SEW Eurodrive ES1C ist ein robuster und explosionsgeschützter inkrementeller Encoder mit 1024 Auflösung, HTL-Ausgang und IP66-Schutz, ideal für präzise Bewegungssteuerung in industriellen Anwendungen.
102472Add-OnCIDNDT71EncoderES1CEurodriveExplosionforHTLIncrementalIndustrialIP66OGOutputProofResolutionRotarySewshaft
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SEW EURODRIVE ES1C INCREMENTAL ROTARY ENCODER
The ES1C incremental rotary encoder from SEW Eurodrive is an explosion-proof, high-resolution encoder engineered for precision motion feedback in demanding industrial applications. Built with durable housing and IP66 protection, it ensures long-lasting performance in harsh environments.
Manufacturer: SEW Eurodrive
Type: Incremental Rotary Encoder
Model: ES1C

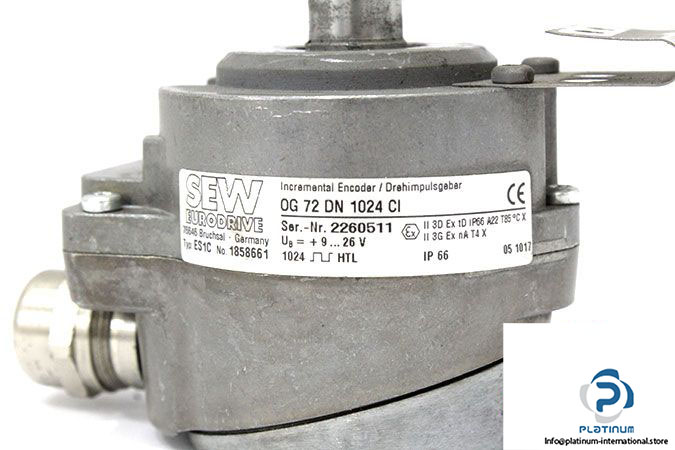

Order Code: OG 72 DN 1024 CI
Part No.: 1858661
Serial No.: 2260511
| Uses | DT71 “ DV225, CT71 “ CV200 |
| Supply Voltage | 9 “ 26 V DC |
| Current Consumption | 340 mARMS |
| Pulse Frequency | max. 120 kHz |
| Resolution | 1024 |
| Signal Output | HTL |
| Vibration Resistance | max. 100 m/s² |
| Connection | Terminal box on incremental encoder |
| Explosion Proof | Yes (Ex Rated) |
| Mounting Type | Add-on encoder with spread shaft |
| Protection | IP66 |
