SEW ES1R 1860607 Incremental Rotary Encoder
250,00$
INCREMENTALER DREHENCODER SEW „Eurodrive ES1R liefert eine Auflösung von 1024 bei 120 kHz mit TTL-Signalausgang. Entwickelt für SEW-Motoren DT71"DV225 und CT71"200CV. IP66/IP56 Schutz und Temperaturbereich von -30°C bis 60°C.

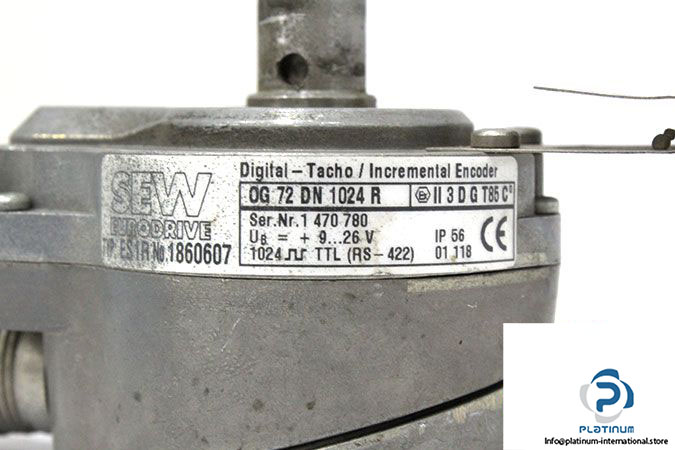

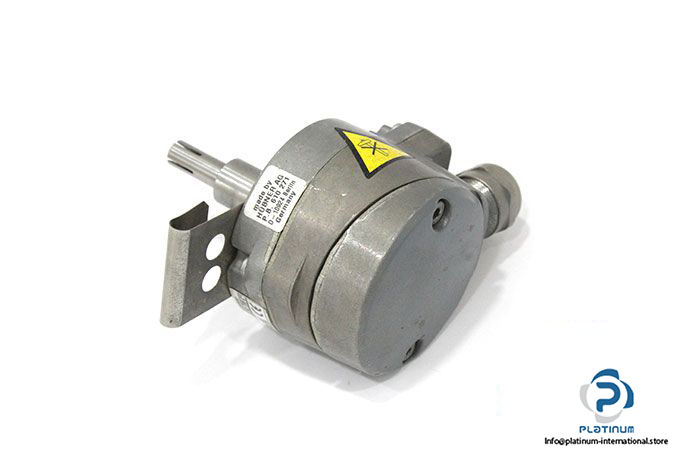

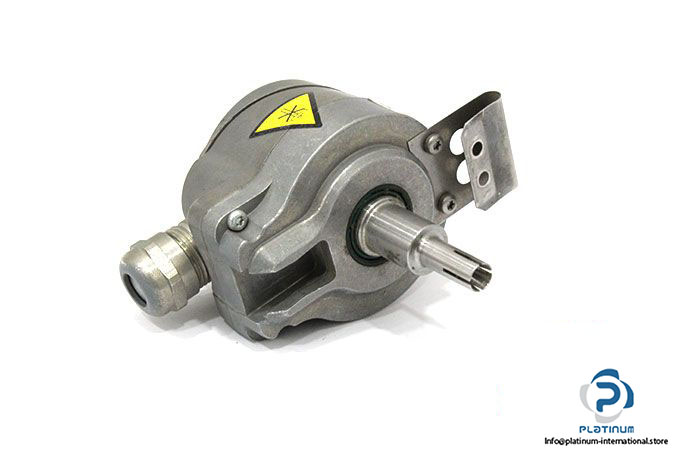

SEW “ Eurodrive ES1R Incremental Rotary Encoder
The SEW “ Eurodrive ES1R is a robust incremental rotary encoder engineered for precision and reliability in motion control systems. Ideal for integration with SEW motors from the DT71 to DV225 and CT71 to 200CV series, it ensures optimal performance in industrial automation environments.
Manufacturer: SEW “ Eurodrive
Type: Incremental Rotary Encoder
Model: ES1R
Order Code: OG 72 DN 1024 R
Part No.: 1860607
| Uses | For motors DT71 “ DV225, CT71 “ 200CV |
| Supply Voltage | 9 “ 26 V DC |
| Current Consumption | max. 180 mARMS |
| Resolution | 1024 |
| Pulse Frequency | 120 kHz |
| Signal Output | TTL |
| Vibration Resistance | ‰¤ 100 m/s² |
| Speed | max. 10000 rpm |
| Protection | IP66/IP56 |
| Ambient Temperature | -30°C / 60°C |
