SEW KAF47 CM71S/BR/TF/RH1M/SB64 Helical Bevel Gearmotor
Gebraucht
Auf Lager1 EinheitVersandbereit
HELICAL BEVEL GEARMOTOR
SEW KAF47 CM71S is a powerful helical bevel gearmotor with a 93.61 ratio, 5 Nm torque, 400 V max voltage, and resolver encoder. Ideal for precise and heavy-duty industrial operations.400VB5BevelCM71SDriveEncoderFlangeGearGearmotorHelicalHighIndustrialKAF47motormountedratioResolverSewUnitWith
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

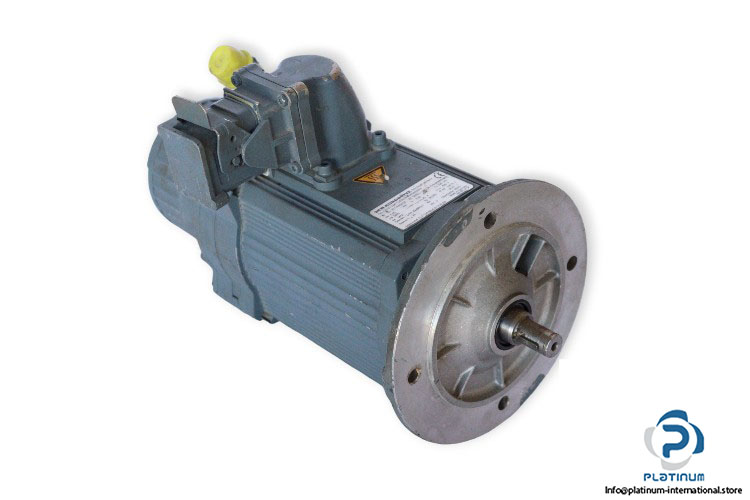

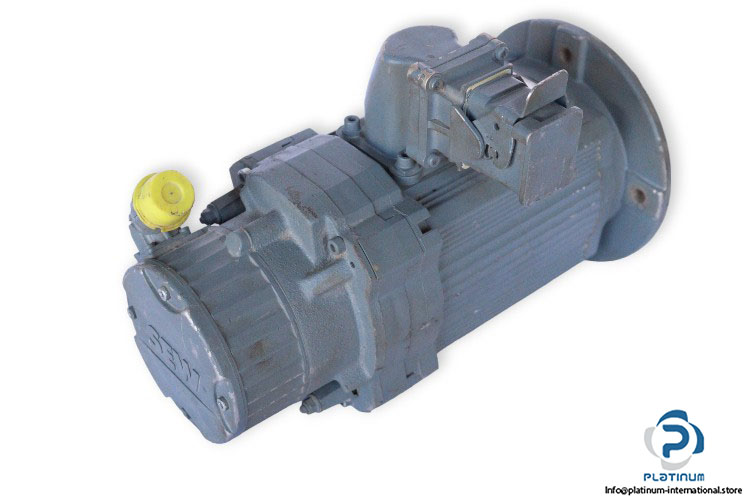

SEW KAF47 CM71S/BR/TF/RH1M/SB64 HELICAL BEVEL GEARMOTOR
This SEW helical bevel gearmotor offers high performance and reliability for industrial applications requiring compact construction, precise torque delivery, and versatile mounting options. Equipped with a resolver encoder and high-efficiency components, it ensures long-term operational efficiency.
Manufacturer: SEW
Type: Helical Bevel Gearmotor
Model: KAF47 CM71S/BR/TF/RH1M/SB64
Nr: 01.3217690618
| Gear Unit | KAF47 |
| Motor Size | 71 |
| Speed Class | 3000 r/min |
| Torque at Standstill | 5 Nm |
| Standstill Current | 3.30 A |
| Max. Current | 13.20 A |
| Max. Voltage | 400 V |
| Frequency | 150 Hz |
| Mounting Position | M1A |
| Degree of Protection | 65 |
| Insulation Class | F |
| Gear Type (R) | Helical Gear Unit, IN B5 Flange Mounted |
| Gear Unit Size | 47 |
| Ratio | 93.61 |
| Gear Output Speed | 76 r/min |
| Motor Speed | 3000 r/min |
| Rectifier Brake | XBSG |
| Rated Voltage | 24 VDC |
| Rated Torque | 5 Nm |
| Thermistor | PTC Resistor |
| Encoder | RH1M, Resolver |
| Plug Connector | SB64 |
