SEW MDX60A0220-503-4-00 Control Unit

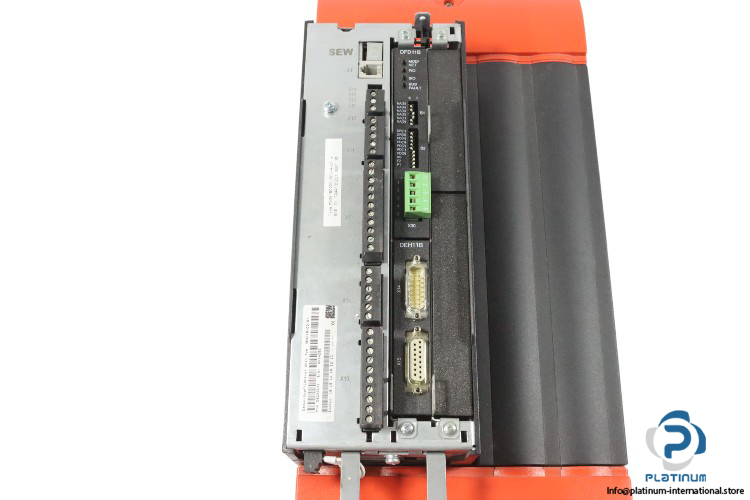

SEW MDX61B-00/0T Control Unit

The SEW MDX61B-00/0T Control Unit is a highly efficient and reliable motor control solution for industrial applications. With a rated supply voltage of 3×380-500V and a rated output power of 22 kW, this control unit ensures optimal performance and protection for motors in various industrial environments.

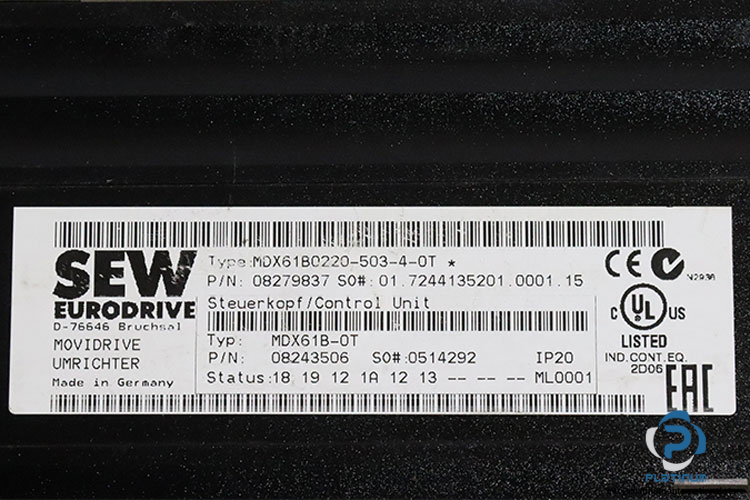

Manufacturer: SEW

Type: Control Unit

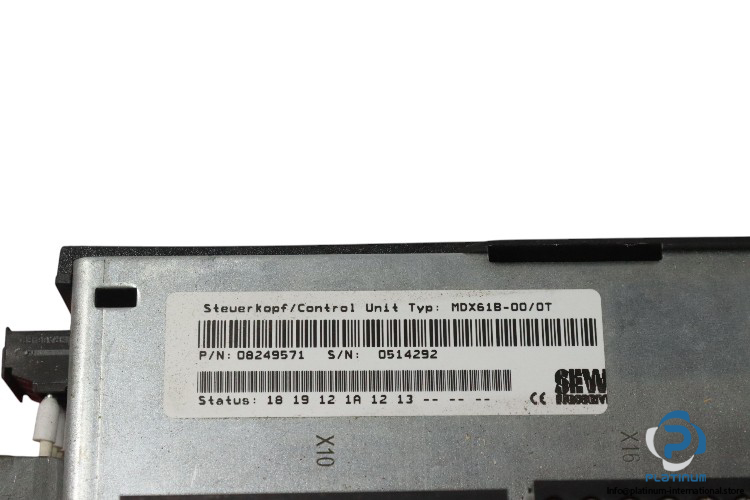

Model: MDX61B-00/0T

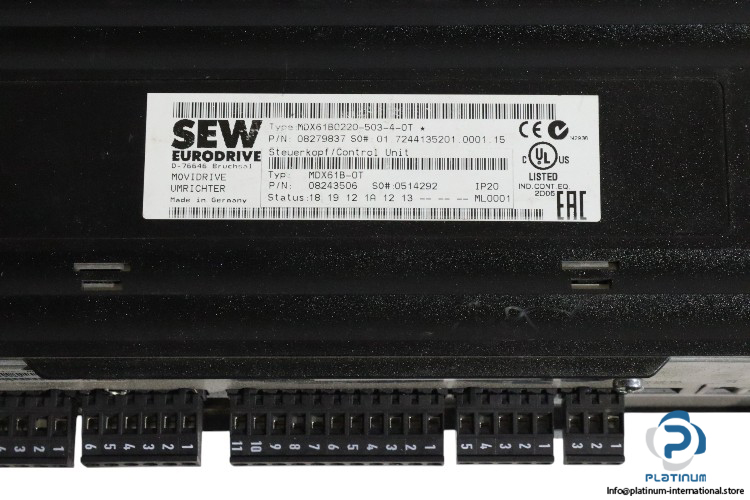

Part No.: 08279837

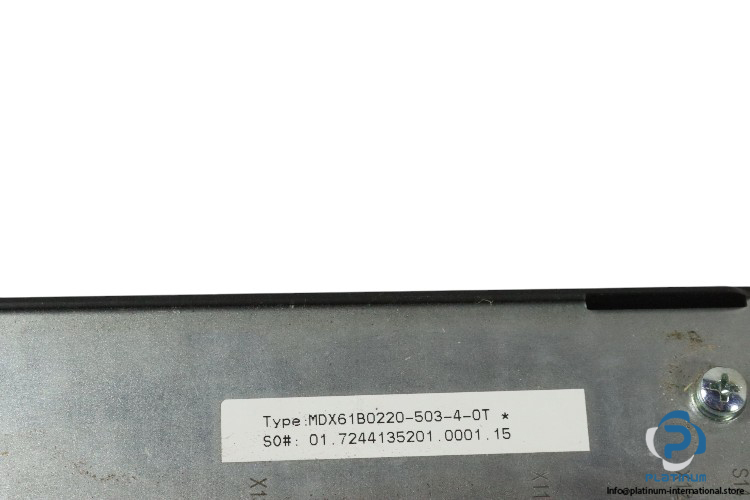

SO No.: 01.7244135201.0001.15

REF No.: 08249571 / 08243506 / 0514292

Technical Data:

• Size: 3
• Unit Design: Application version
• Rated Supply Voltage: 3×380-500 V +/- 10%
• Rated Supply Current: 41.40 A
• Rated Supply Frequency: 50-60 Hz +/- 5%
• Rated Output Power: 22.00 kW
• Rated Output Power: 30.00 HP
• Output Voltage: 3×0-V/mains
• Nominal Output Current: 46.00 A
• Output Frequency: 599.00 Hz
• Linear Motor Load: 22 kW
• Square Motor Load: 30 kW
• Ambient Temperature Min: 0°C
• Ambient Temperature Max: +50°C
• Enclosure: IP20

Attachment:

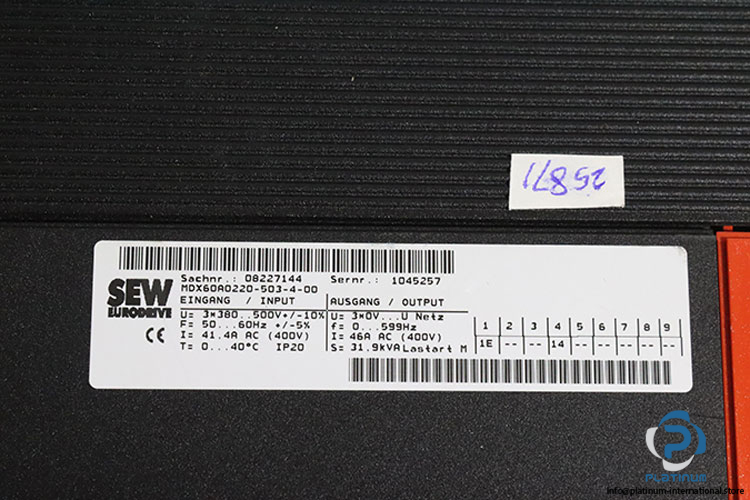

SEW MDX60A0220-503-4-00 Inverter Drive

• Voltage: 3×380-500 V
• Current: 41.4 A
• Frequency: 50-60 Hz
• Output Voltage: 3×0-380-500 V/3-phase
• Output Current: 46 A
• Frequency: 0-599 Hz
• Power: 31.9 kVA
