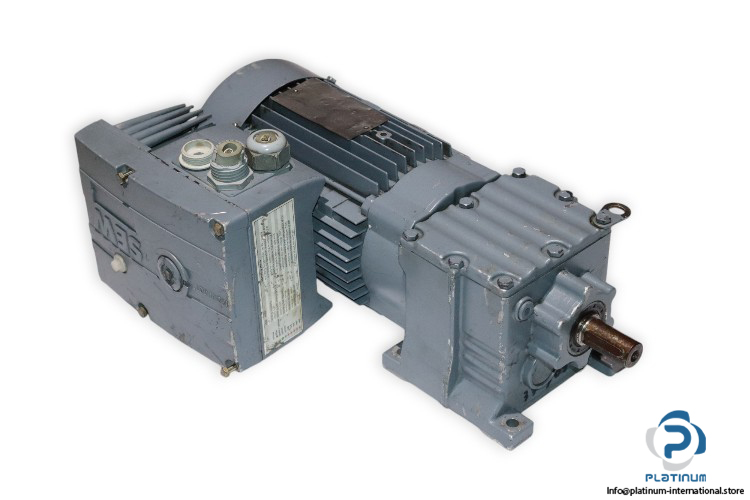

SEW R17 DT80K-4 MM05 Helical-Gearmotor
The SEW R17 DT80K-4 MM05 Helical-Gearmotor is a high-performance gearmotor designed for industrial applications requiring efficient power transmission. With a robust design and integrated MOVIMOT inverter drive, it offers variable speed control and reliability in demanding environments.
Manufacturer: SEW
Type: HELICAL-GEARMOTOR

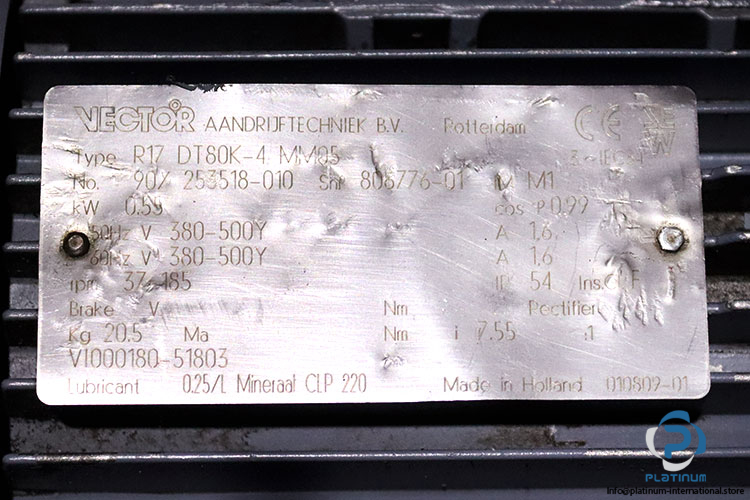

Model: R17 DT80K-4 MM05
Part No.: 90/253518-010
Input:
Output:
This helical-gearmotor with an integrated MOVIMOT inverter provides a versatile and energy-efficient solution for variable speed applications.
| Gear Unit | R17 |
| Speed [r/min] | 37 - 185 |
| Total Ratio | 7.55 |
| Mounting Position | M1 |
| Motor Power [kW] | 0.55 |
| Multi Range-Voltage 50Hz [V] | 380-500 |
| Multi Range-Voltage 60Hz [V] | 380-500 |
| MM Rated Main Current [A] | 1.60 |
| MM Rated Output Current [A] | 1.60 |
| Thermal Class [°C] / Enclosure [IP] | F / 54 |

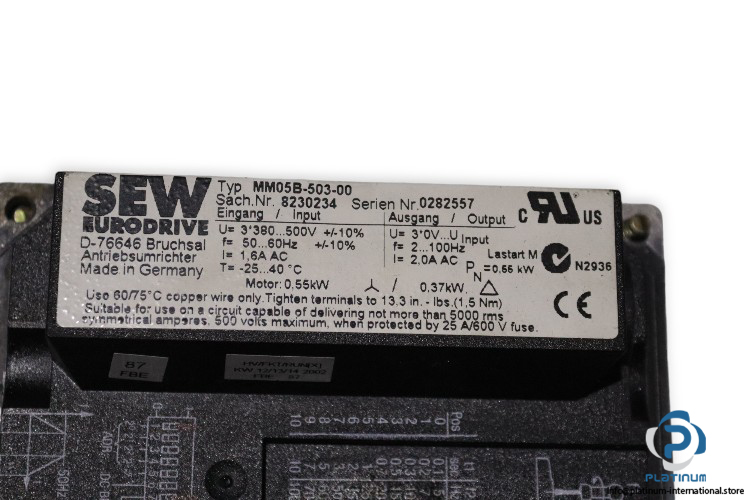

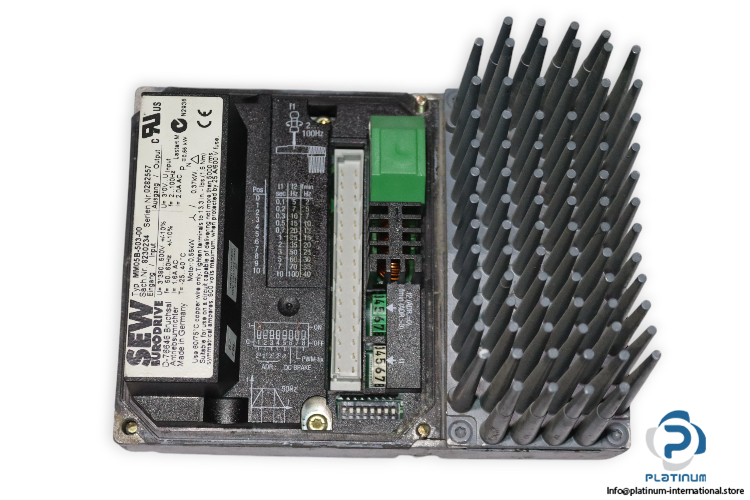

| Attached with | SEW MM05B-503-00 MOVIMOT Inverter Drive |
| Supply Voltage | 3-Phase 380 to 500 V AC |
| Rated Current | 1.6 A |
| Frequency | 50 / 60 Hz |
| Rated Voltage | 3-Phase 0 / 380 to 500 V AC |
| Rated Current | 2 A |
| Frequency | 2 to 100 Hz |
