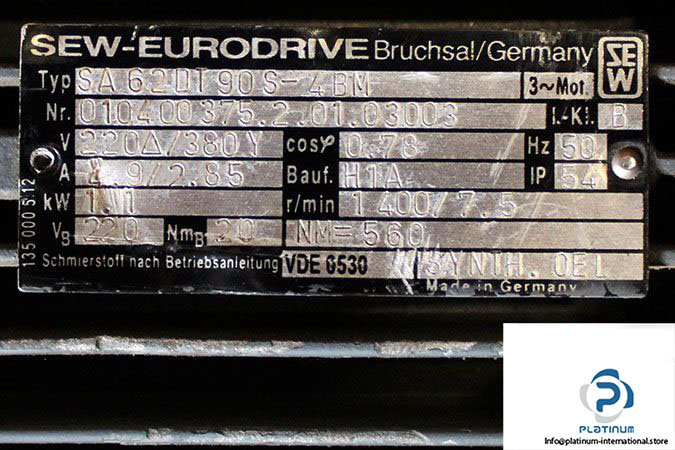

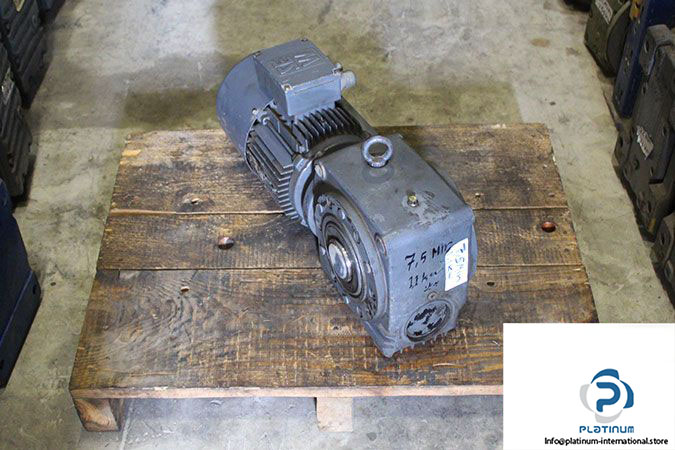

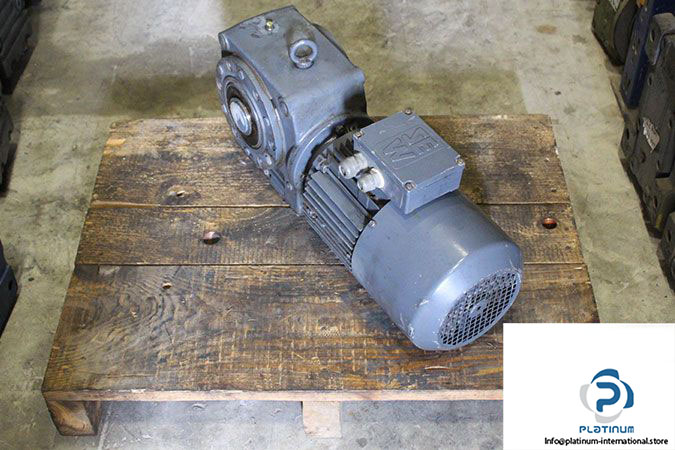

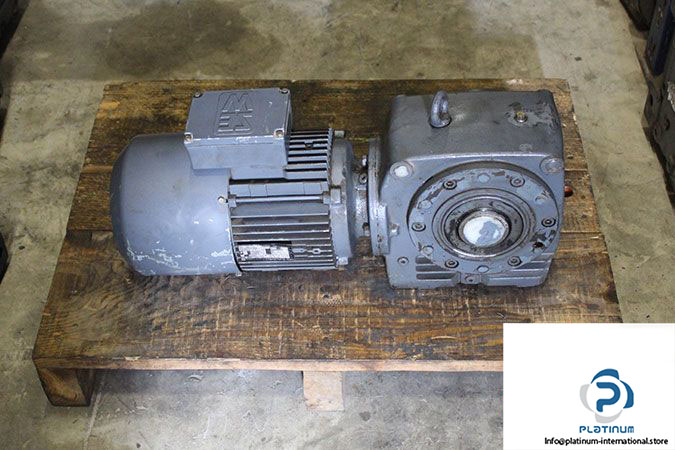

SEW SA62 DT90S-4BM Helical Worm Gearmotor

Manufacturer: Sew-Eurodrive

Type: Helical Worm Gearmotor

Model: SA62DT90S-4BM

Sew SA62 Gear

Gear Type (SA): Helical Worm Gear Unit, Hollow Shaft

Gear Box Size: 62

Ratio: 186.67

Rated Torque: 560 Nm

Hollow Diameter: 40 mm

Gear Unit Output Speed: 7.5 r/min

Lubrication: SYNTH.OIL

Sew DT90S-4BM AC Motor

Motor Size: 90

No. of Pole: 4

Nominal Voltage (Delta): 220 V

Nominal Voltage (Star): 380 V

Rated Current (Delta): 2.9 A

Rated Current (Star): 2.85 A

Rated Power: 1.1 Kw

Frequency: 50 Hz

Motor Speed: 1400 r/min

Power Factor: 0.78 %

Insulation Class: B

Mounting Position: H1A

Degree of Protection: IP54

Brake Voltage: 220 V

Brake Torque: 20 Nm

Double-Disc, Spring-Loaded Brake

Gross Weight: 49.4 kg
