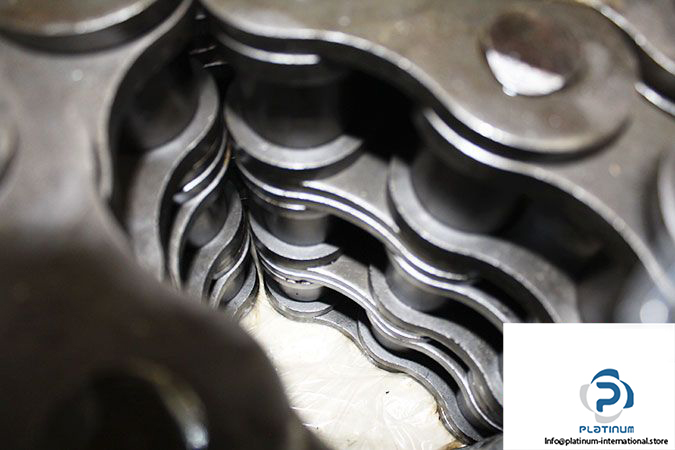

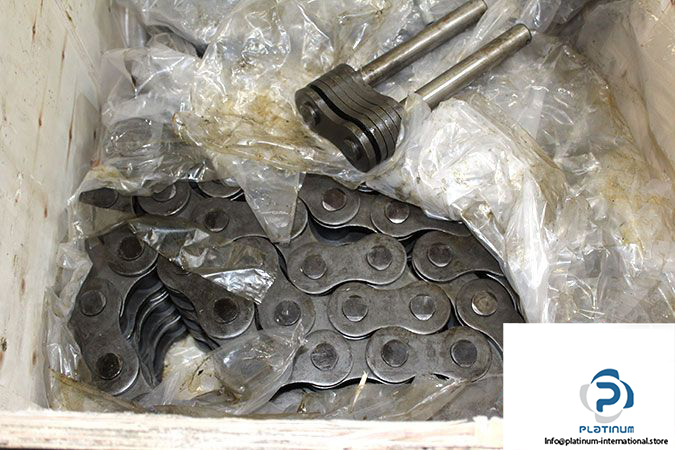

SH Chain ISO 48-B3 Triplex Roller Chain

Type: Triplex Roller Chain

ISO: 48 B 3

Pitch P: 76.2 mm

Roller Diameter d1: 48.2 mm

Width Between Inner plates: 47.7 mm

Pin Diameter: 29.22 mm

Pin Length L_max:  29.22 mm

Pin Length L_C: 289.4 mm

Inner plate Depth h₂: 64.2 mm

Plate Thickness T/t_max: 21/10

Weight per foot q: 24.44 kg/m
