Siboni 75PM137TG10 E DA15 Permanent Magnets DC Motor
Gebraucht
Auf Lager2 EinheitenVersandbereit
PERMANENT MAGNET DC MOTOR
SIBONI 75PM137TG10 E DA15 delivers 280 W at 65 VDC with high torque and continuous S1 duty, ideal for automation and drive systems requiring precision and endurance.280W65VDC75PM137TG10ContinuousDA15dcDriveDutyEEncoderHighIncrementalIndustrialIP44MagnetmotorPermanentSiboniTorque
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

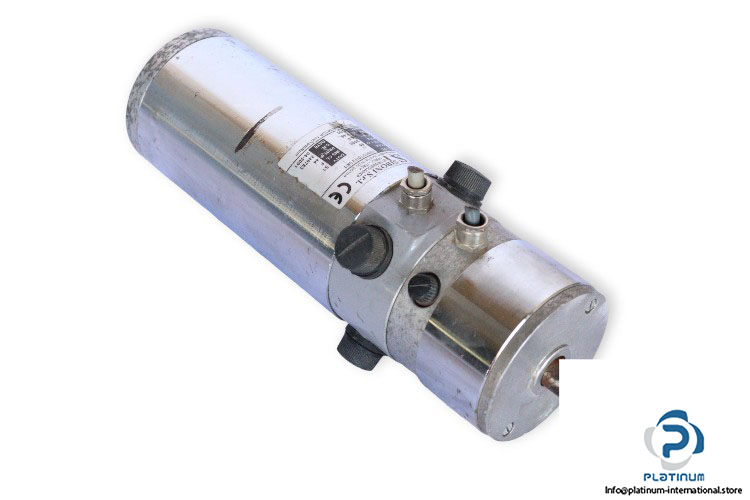

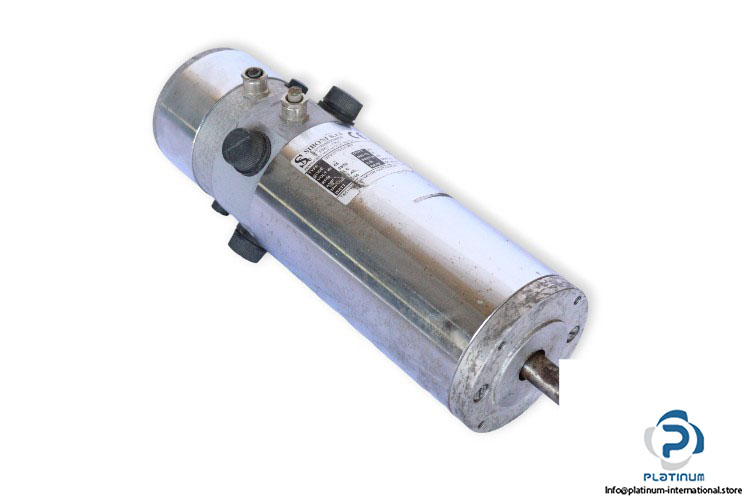

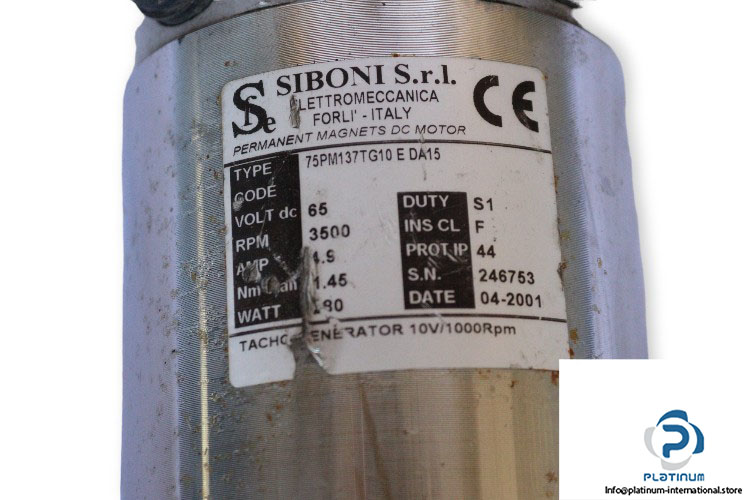

SIBONI 75PM137TG10 E DA15 PERMANENT MAGNET DC MOTOR
High-efficiency permanent magnet DC motor designed for demanding continuous-duty applications requiring stable performance, compact design, and precision speed control. Ideal for integration in industrial automation and drive systems.
Manufacturer: SIBONI
Type: Permanent Magnets DC Motor
Model: 75PM137TG10 E DA15
Serial No.: 246753
| Rated Voltage | 65 VDC |
| Rated Current | 4.9 A |
| Rated Power | 280 W |
| Rated Torque | 0.9 Nm |
| Continuous Stall Torque | 8.5 Nm |
| Continuous Stall Current | 1.45 Nm |
| Winding Code | 137 |
| Rated Speed | 3500 rpm |
| Maximum Speed | 6000 rpm |
| Start Peak Torque | 34 A |
| Moment of Inertia | 7x10»´ |
| Rated Temperature | 0 / 40 °C |
| Protection Class [IP] | 44 |
| Duty | S1 Continuous |
| Insulation Class | F |
| Encoder | Incremental |
| Tacho Voltage Constant | 10 V/1000RPM |
| Power Supply | 5 VDC / 8“24 VDC |
