Sick 6010541 Cable
Neu
Auf Lager1 EinheitVersandbereit

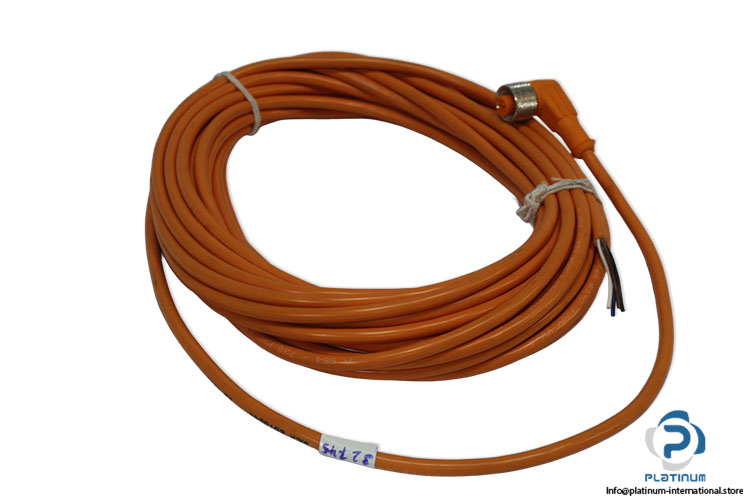

SICK 6010541 Industrial Cable SICK industrial cable with M12 4-pin angled female connector, 10-meter cable length, IP67 protection, and durable PVC jacket for demanding industrial automation applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | 6010541 |

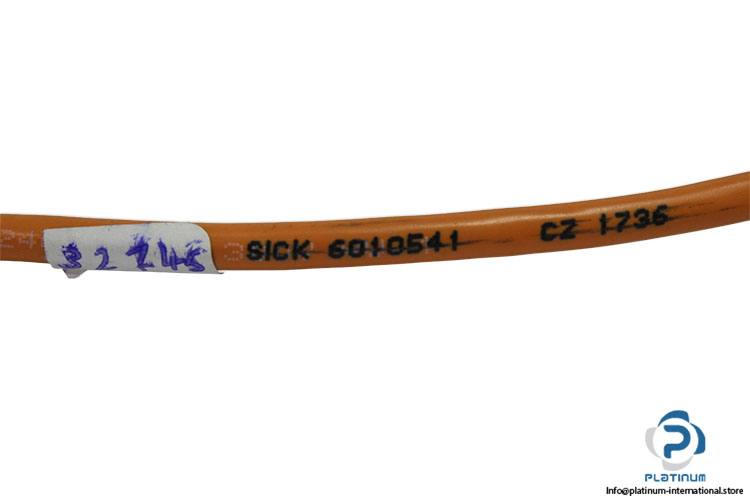

| Code | CZ 1736 |
| Cable length | 10 m |

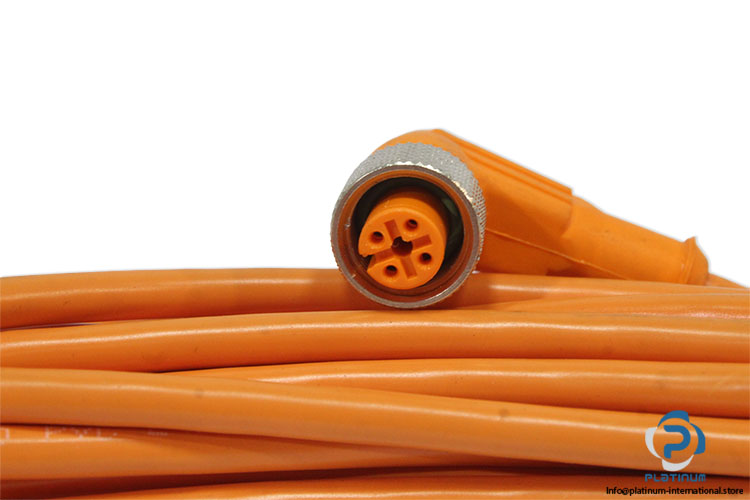

| connector 1 | Female connector, M12, 4-pin, angled |
| connector 2 | 4-wire, male |

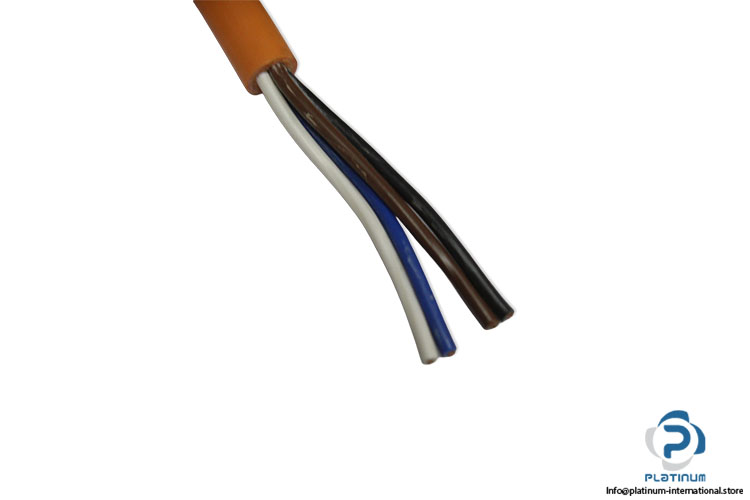

| Connection type | Flying leads |
| Connector material | TPU |
| Locking nut material | CuZn, nickel-plated brass |
| Tightening torque | 0.5 Nm |
| Cable | 10 m, 4-wire, PVC |
| Jacket material | PVC |
| Jacket color | Orange |
| Cable diameter | 5 mm |
| Conductor cross section | 0.25 mm² |
| Shielding | Unshielded |
| Bending radius | Flexible use > 10 x cable diameter Stationary position > 5 x cable diameter Reference voltage : 250 V |
| Current loading | 4 A |
| Application | Zones with chemicals |
| Enclosure rating | IP67 |
| Operating temperature | Flexible use +5 °C ... +80 °C Stationary position–40 °C ... +80 °C Head–25 °C ... +80 °C |
| Stock key | CON-003 |
| Condition | New |
| SKU | 1099223 |
| Weight | 0,36 |
