Sick A3M60B-S1PB013X13 Absolute Encoder
Gebraucht
Auf Lager1 EinheitVersandbereit
211,11$
ABSOLUTE ENCODER
Sick|Stegmann A3M60B-S1PB013X13 absolute encoder with Profibus interface, 13-bit resolution, 8192 steps, 8192 revolutions, 10“32 V DC, and solid shaft servo flange design.1051018138192A3M60B-S1PB013X13AbsoluteAutomationBitEncoderFlangeIndustrialProfibusrevolutionsServoshaftSickSolidstainlessSteelStegmann
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

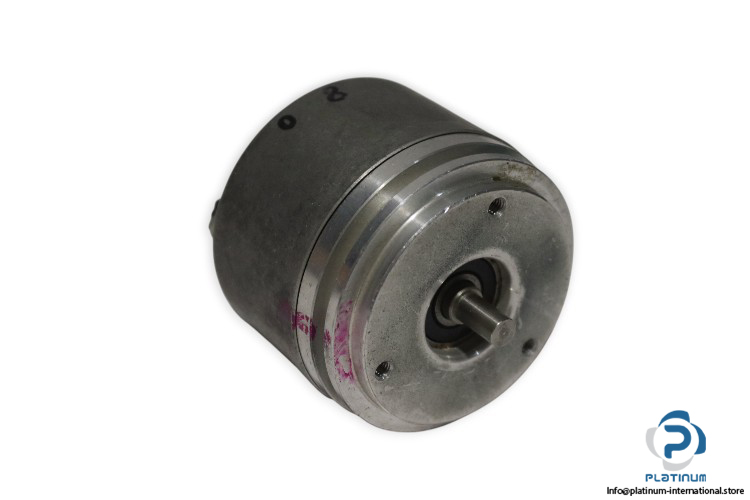

Sick|Stegmann A3M60B-S1PB013X13 Absolute Encoder
The Sick|Stegmann A3M60B-S1PB013X13 is a compact and high-precision absolute encoder designed for industrial automation and motion control. With Profibus interface, high 13-bit resolution, and durable construction, it ensures reliable performance in demanding environments.

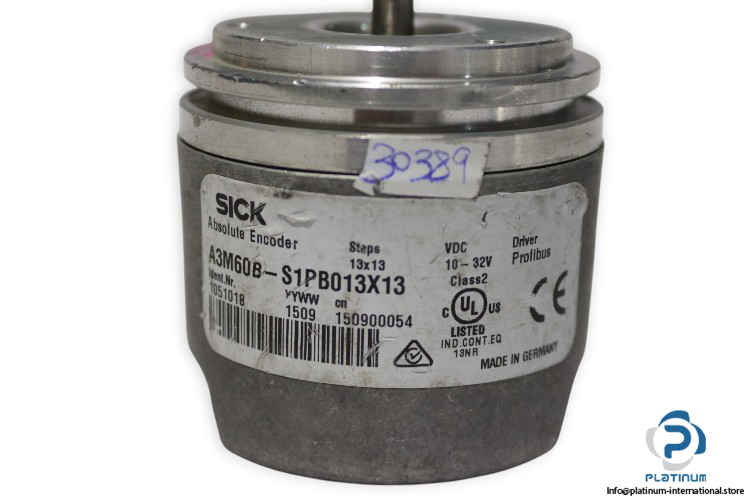

Manufacturer: Sick|Stegmann
Type: Absolute Encoder
Model: A3M60B-S1PB013X13
Yyww/cn: 1509 150900054
Part No.: 1051018
| Voltage | 10 to 32 V DC |
| Step | 13 x 13 |
| Driver | Profibus |
| Class | 2 |
| Number of Steps per Revolution (Max. Resolution) | 8192 (13 bit) |
| Number of Revolutions | 8192 (13 bit) |
| Initialization Time | Approx. 1 s |

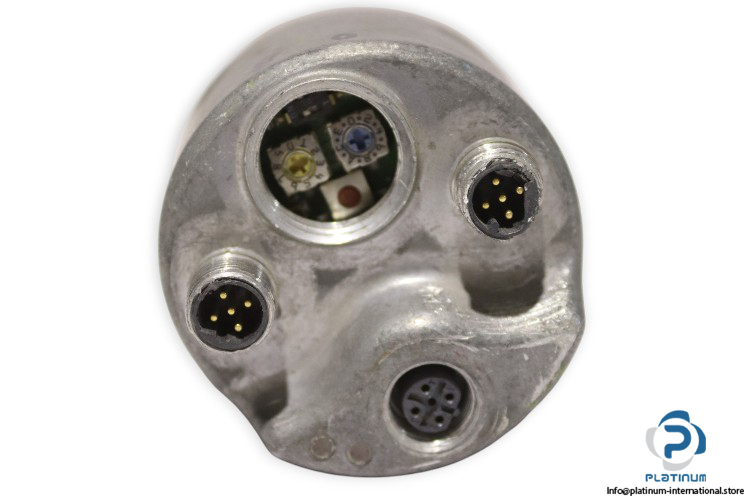

| Connection Type | Male connector, 2x, M12, 5-pin, axial; Female connector, 1x, M12, 5-pin, axial |
| Power Consumption | ‰¤ 1.5 W |
| Material | Stainless steel / Aluminum |
| Operating Temperature | -10 °C to +70 °C |
| Shaft Diameter | 6 mm |
| Shaft Length | 10 mm |
| Mechanical Design | Solid shaft, Servo flange |
