Sick AFM60A-BENB018X12 Absolute Encoder
Gebraucht
Auf Lager2 EinheitenVersandbereit
444,44$
ABSOLUTE ENCODER
Sick|Stegmann AFM60A-BENB018X12 absolute encoder with PROFINET interface, 18 x 12 bit resolution, 262144 steps, 4096 revolutions, 10“30 V DC, blind hollow shaft, and rugged design.1059034184096AbsoluteAFM60A-BENB018X12AutomationBitBlindEncoderHighhollowIndustrialProfinetResolutionrevolutionsshaftSickstainlessSteelStegmann
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

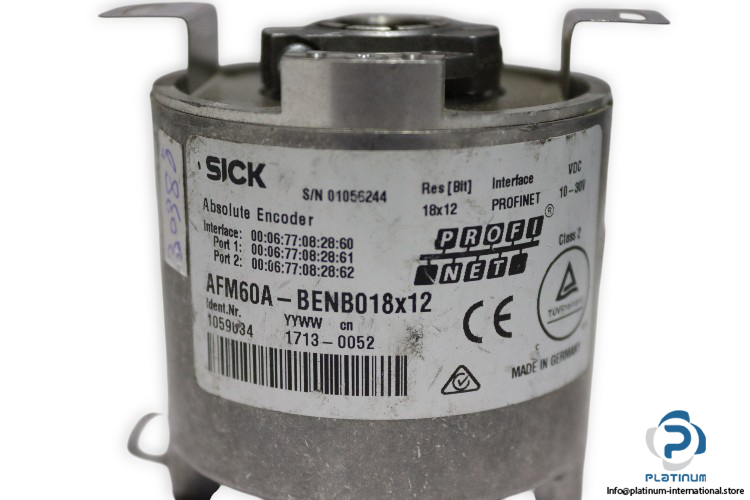

Sick|Stegmann AFM60A-BENB018X12 Absolute Encoder
The Sick|Stegmann AFM60A-BENB018X12 is a high-resolution absolute encoder designed for precise motion control and automation applications. With PROFINET interface, blind hollow shaft design, and rugged stainless steel/aluminum construction, it delivers reliable performance in demanding industrial environments.
Manufacturer: Sick|Stegmann
Type: Absolute Encoder
Model: AFM60A-BENB018X12
Yyww/cn: 1713-0052
Part No.: 1059034
S/N: 01056244
| Voltage | 10 to 30 V DC |
| Resolution (bit) | 18 x 12 |
| Interface | PROFINET |
| Class | 2 |
| MAC Address | 00:06:77:08:28:60 |
| Port 1 | 00:06:77:08:28:61 |
| Port 2 | 00:06:77:08:28:62 |
| Number of Steps per Revolution (Max. Resolution) | 262144 (18 bit) |
| Number of Revolutions | 4096 (12 bit) |
| Initialization Time | 6 s |

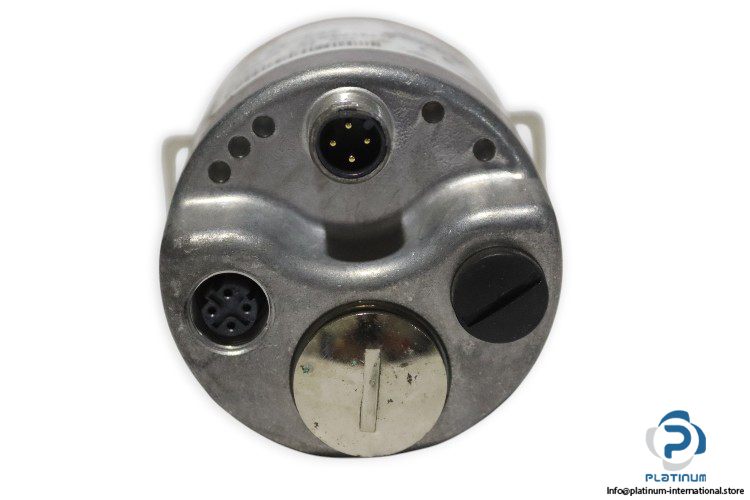

| Connection Type | Male connector, 1x, M12, 4-pin, axial; Female connector, 2x, M12, 4-pin, axial |
| Power Consumption | ‰¤ 3 W (without load) |
| Material | Stainless steel / Aluminum |
| Operating Temperature | -40 °C to +85 °C |
| Shaft Diameter | 12 mm |

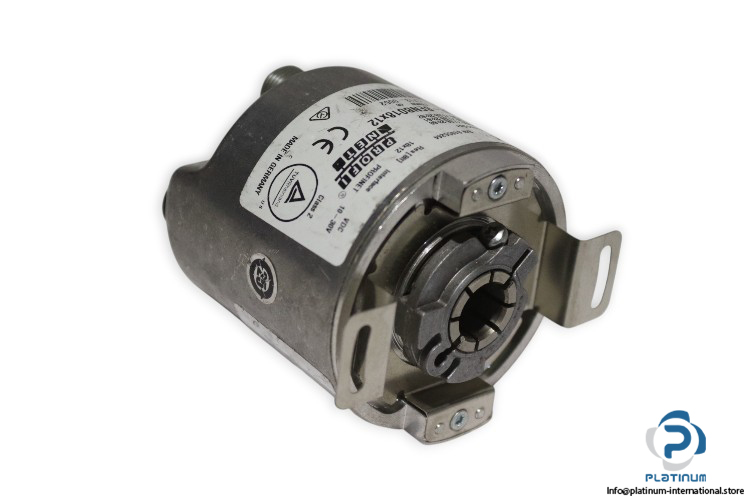

| Mechanical Design | Blind hollow shaft |
