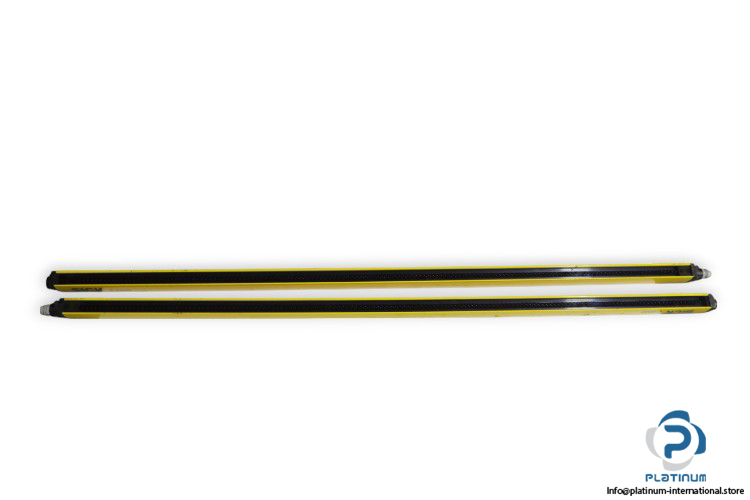

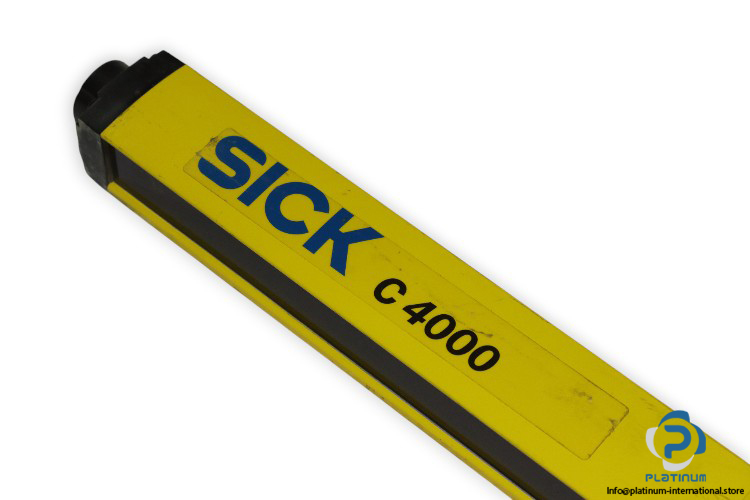

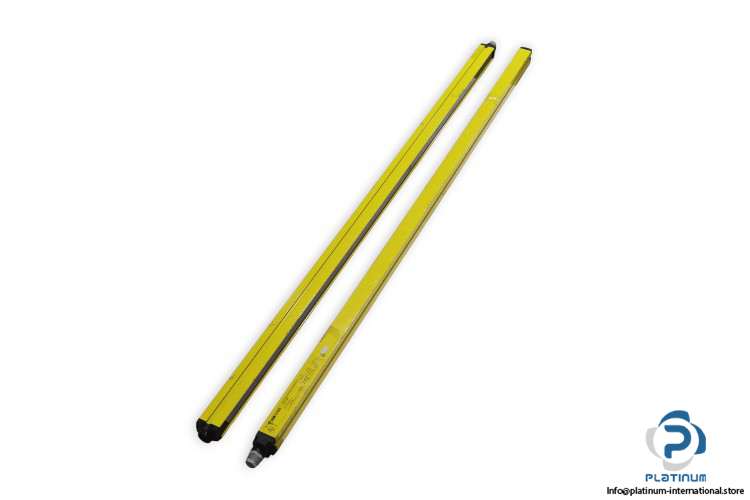

Sick C40S-1503CA010 Safety Light Curtain
777,77$
SICK C4000 safety light curtain pair with 1,500 mm protective field height, 30 mm resolution, and 21 m scanning range. Includes sender and receiver with IP65 rating, suitable for industrial safety systems.
Manufacturer: SICK
Type: Safety Light Curtain

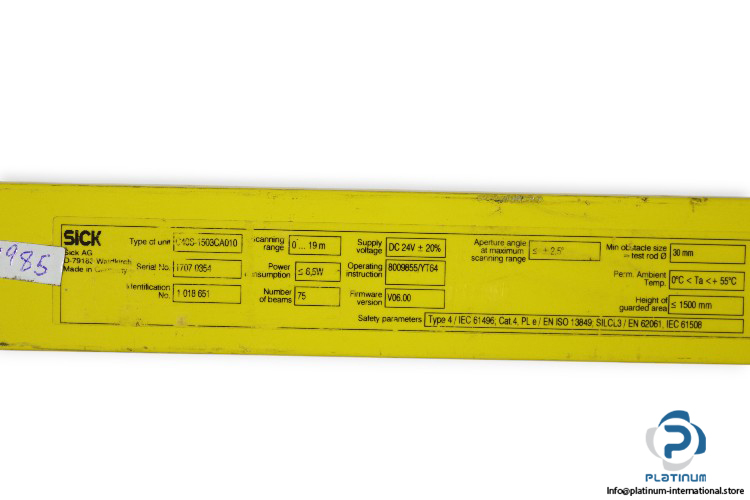

Model (Sender): C40S-1503CA010
MNR: C4000
Part No.: 1018651
Serial No.: 17070354

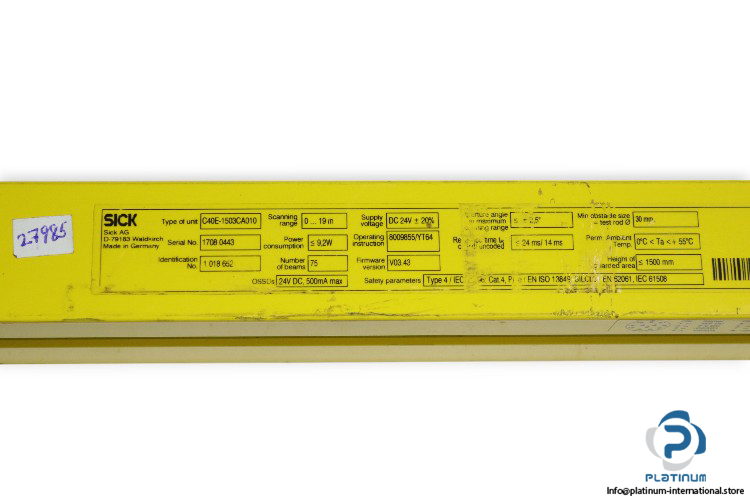

Model (Receiver): C40E-1503CA010
Part No.: 1018652
MNR: C4000
The SICK C4000 Safety Light Curtain is a high-performance sender-receiver system designed for advanced personnel protection and machine safety in industrial environments. Engineered for fast response and precise object detection, it supports seamless integration into safety systems while providing a protective field height of 1,500 mm and long-range scanning up to 21 meters.
- Supply Voltage VS: 24 V DC (19.2 V to 28.8 V)
- Power Consumption (Sender): 6.5 W
- Resolution: 30 mm
- Number of Beams: 75
- Protective Field Height: 1,500 mm
- Scanning Range: Up to 21 m

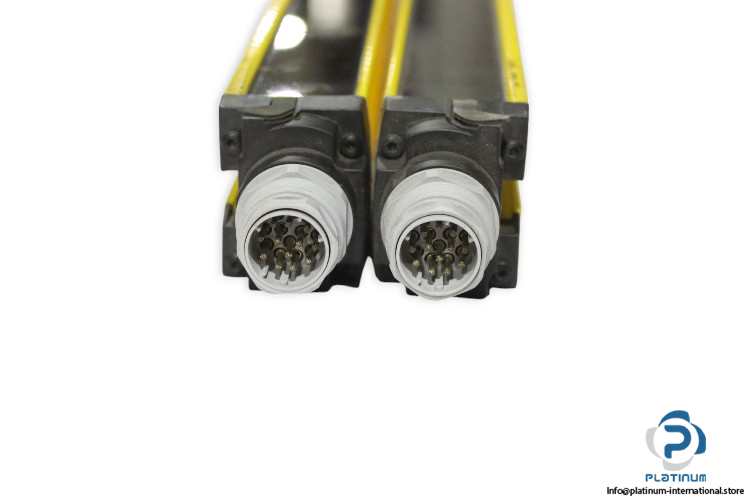

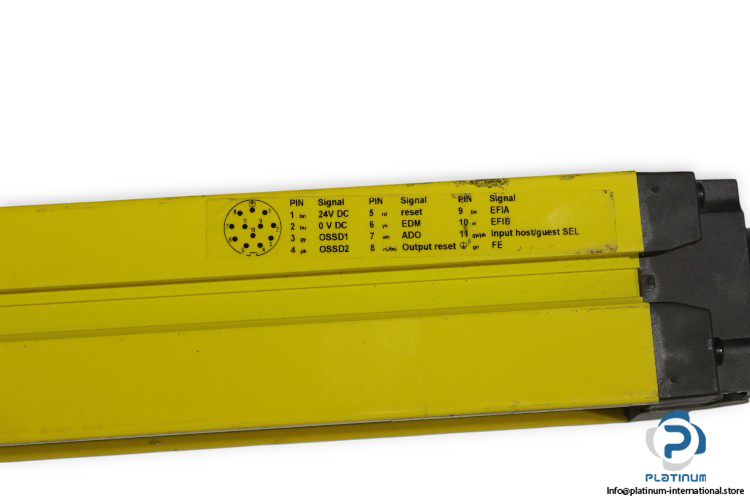

- System Connection: Hirschmann M26, 12-pin Male Connector
- Enclosure Rating: IP65 “ dust-tight and water-resistant
- Wave Length: 950 nm
- Ambient Operating Temperature: 0 °C to +55 °C
- Housing Material: Aluminum Extruded Profile
- Application: Normal Industrial Environment
- System Parts: Sender (C40S-1503CA010) and Receiver (C40E-1503CA010)
This reliable solution from SICK ensures personnel safety with superior durability and precision.
