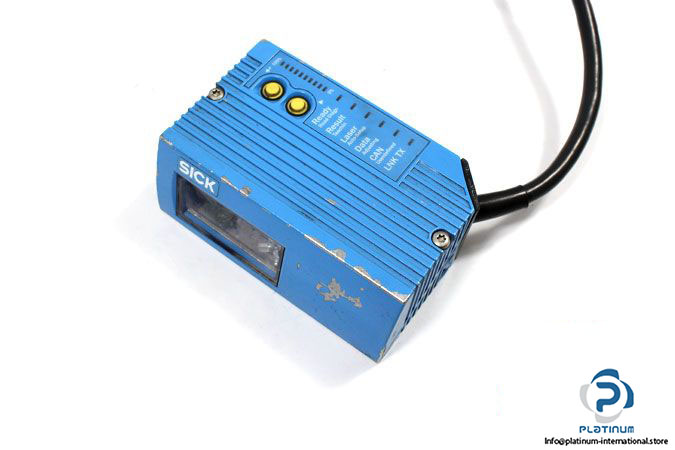

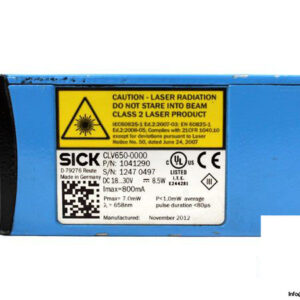

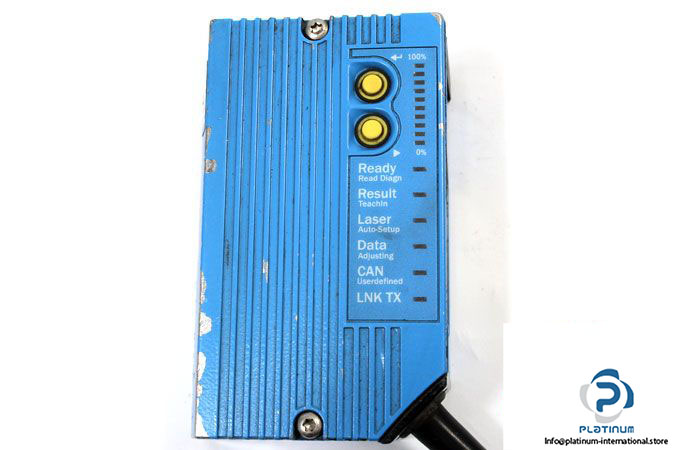

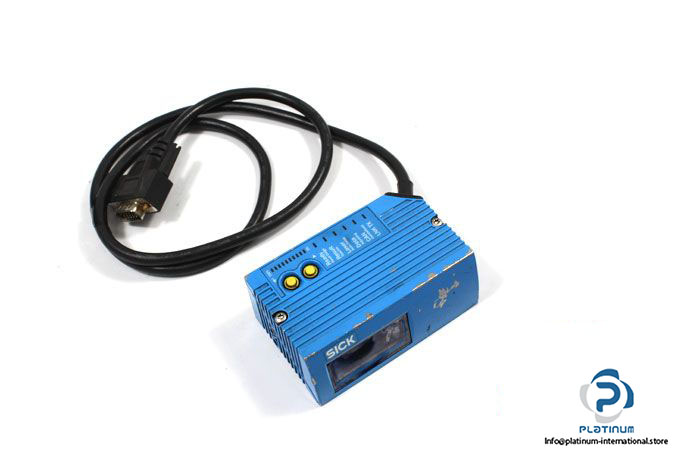

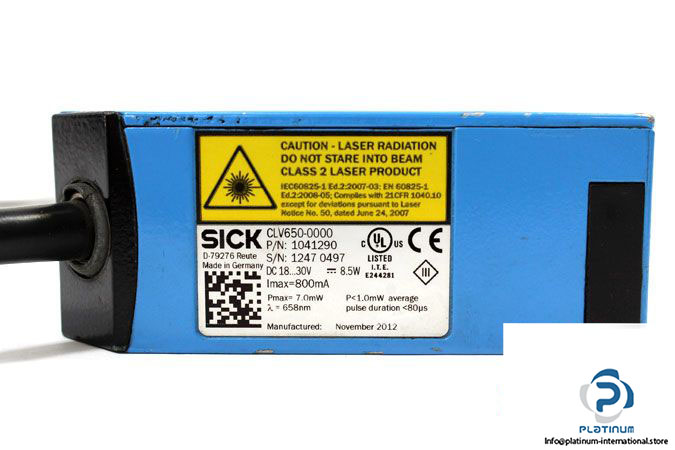

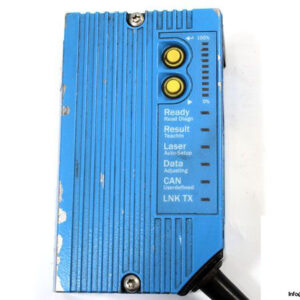

Sick CLV650-0000 BAR Code Scanner

Manufacturer:  SICK

Type:  BAR CODE SCANNER, STANDARD DENSITY

Model : CLV650-0000

Part No.: 1041290

Operating Voltage: 18 … 30 V DC

Operating Current: 800 mA

Power consumption: 8.5 W

Version: Standard density

Reading field: Front

Scanner design: Line scanner

Focus: Auto focus

Light source: Visible red light, 680 nm

Laser Class: 2

Scanning frequency: 600 … 1000 Hz

Code resolution: 0.25 … 1 mm

Reading distance: 140 … 1,625 mm

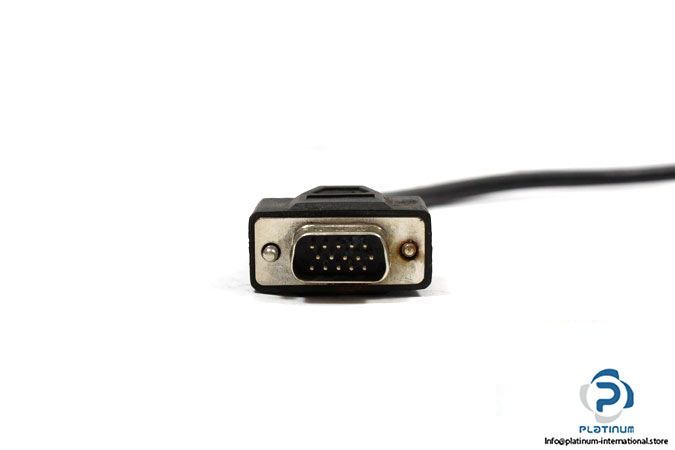

Connector type: Cable, D-sub connector, 15-pin

Protection class: III

Readable code structures: 1D

Bar code types: All current code types, Code 39, Code 128,

Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN,

Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen,

MSI/Plessey

No. of multiple readings: 1 … 99

Ambient Operating temperature: 0 … 40°C

Dimensions (L x W x H):  61 x 96 x 38 mm

Housing material: Aluminum die cast

Front screen material: Glass
