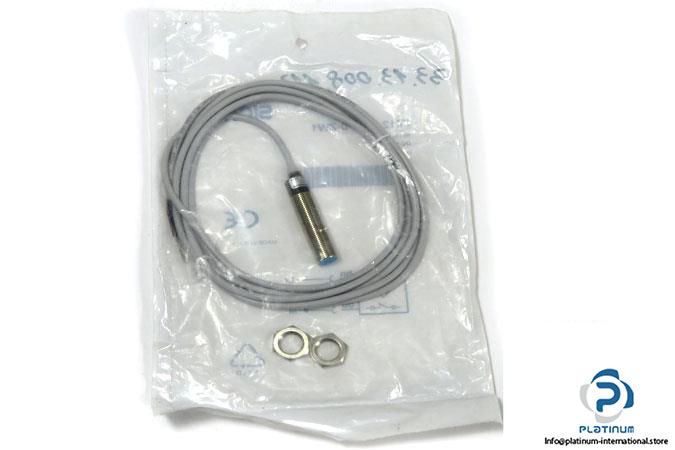

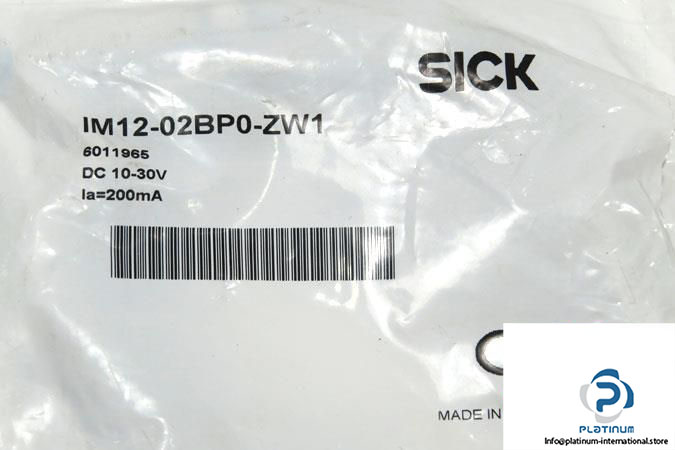

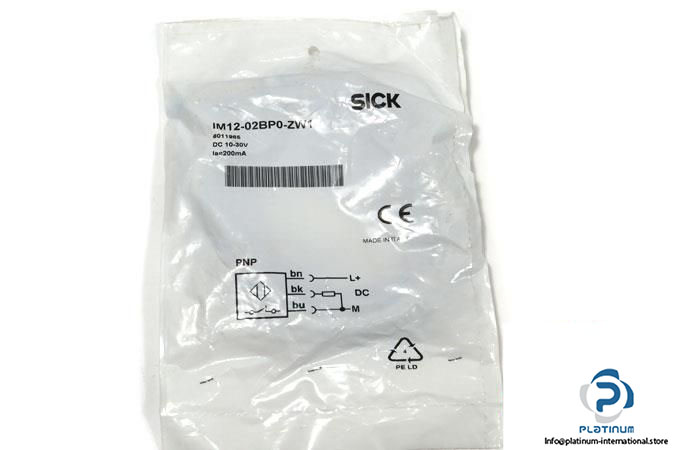

Sick IM12-02BPO-ZW1 Inductive Proximity Sensor

Manufacturer:  SICK

Type: INDUCTIVE PROXIMITY SENSOR

Model: IM12-02BP0-ZW1

Part No.: 6011965

Applications: for use in the industrial environments

Sensing Range: 2 mm

Time delay before availability: 100 ms

Operating Voltage: 10 … 30 V DC

Ripple: 10 %

Switching frequency: 2000 Hz

Continuous current: 200 mA DC

Switching output: PNP

Switching mode: Normally closed

Connector type: PVC, 2 m

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, housing length: 12, 50 mm

Housing: Threaded type

Housing material: Nickel-plated Brass

Sensing face material: Plastic

Mounting: flush mountable
