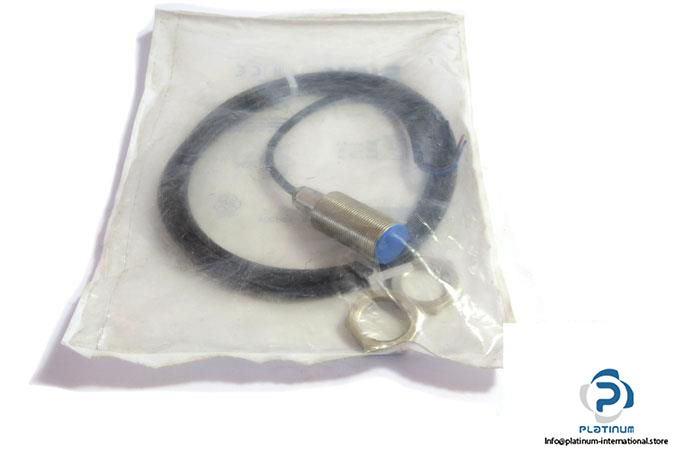

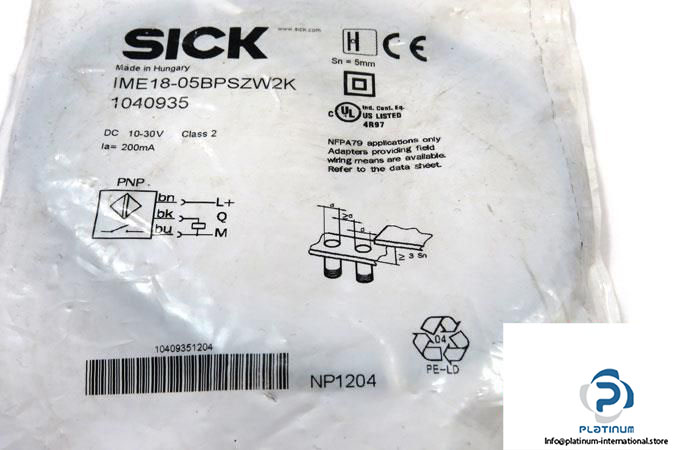

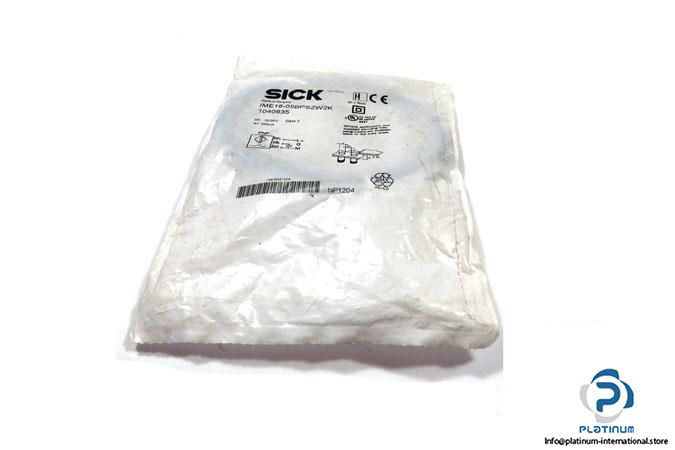

Sick IME18-05BPSZW2K Inductive Proximity Sensor

Manufacturer: SICK

Type: INDUCTIVE PROXIMITY SENSOR

Model:  IME18-05BPSZW2K

Part No.: 1040935

Sensing range: 5 mm

Safe sensing range: 4.05 mm

Time delay before availability: ≤ 100 ms

Supply Voltage: 10 … 30 V DC

Current consumption (without load): 10 mA

Continuous current I_a: 200 mA

Power Consumption (without load): 10 mA

Voltage Drop: 2 V

Switching Output: PNP

Output function: Normally open

Switching Frequency: 1000 Hz

Connection type, length: 3 wire PVC Cable, 2m

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Material: Metal, Nickel-plated brass

Mounting: Flush mountable

Housing: Cylindrical thread

Thread size: M18 x 1

Diameter: 18 mm

Housing, thread length: 48, 33 mm

Condition: New
