Sick KT5G-2P1251S29 Contrast Sensor
Kontrastsensor Der SICK KT5G-2P1251S29 Kontrastsensor bietet eine Erfassungsdistanz von 200 mm, eine Versorgungsspannung von 10 bis 30 V DC und einen Stromverbrauch von 100 mA. Mit PNP-Schaltausgang, M12-Stecker, IP67-Schutz und einem Betriebstemperaturbereich von -10°C bis 55°C.

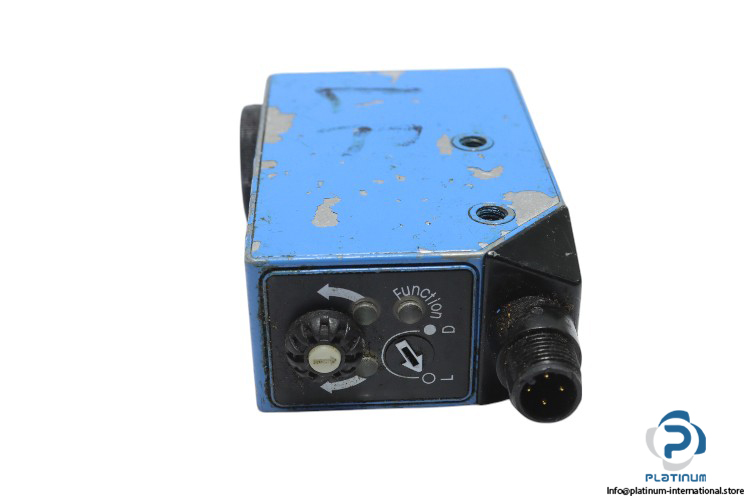

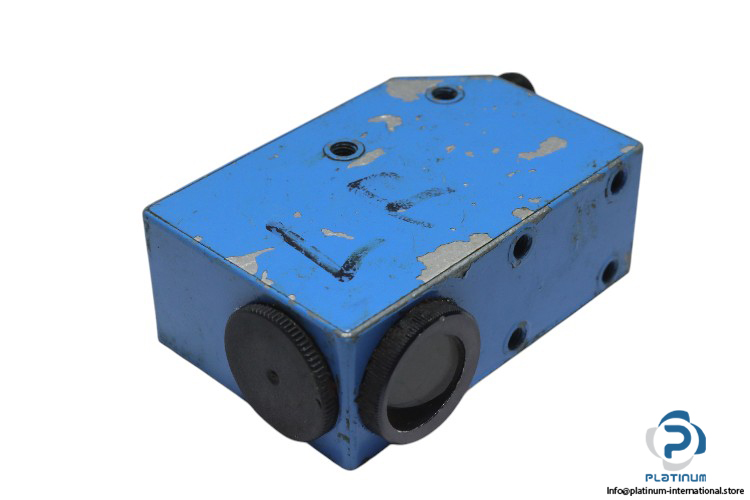

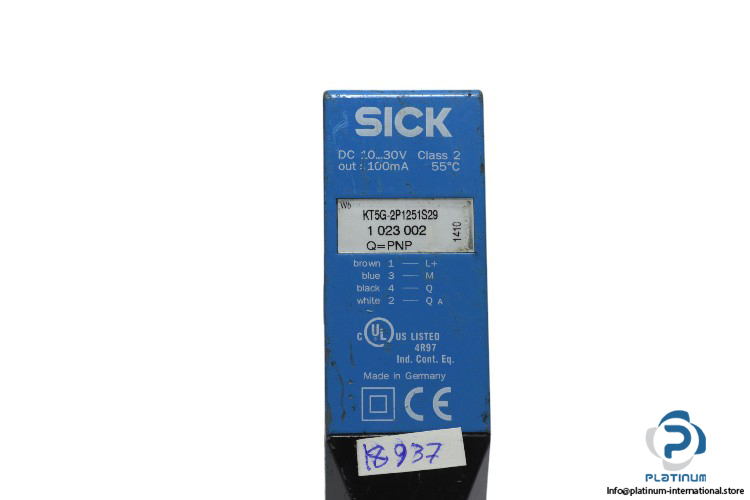

SICK KT5G-2P1251S29 Contrast Sensor
The SICK KT5G-2P1251S29 Contrast Sensor is a high-precision optical sensor designed for detecting contrasts and variations in light intensity, ideal for applications in industrial automation and material handling. With a sensing distance of up to 200 mm, it ensures accurate detection of objects or markings, even in fast-paced environments.
This sensor operates with a supply voltage range of 10 to 30 V DC and has a current consumption of 100 mA, providing efficient and reliable performance. It features a PNP switching output, with an analog output of 2 to 10 mA, making it versatile for various control systems and processes.
The sensor is designed for easy integration with its M12, 4-pin male connector and is housed in a durable, rectangular metal (zinc die-cast) enclosure that offers an IP67 enclosure rating, ensuring protection against dust and water. With an operating temperature range of -10°C to 55°C, the SICK KT5G-2P1251S29 sensor is built to withstand a variety of industrial environments.
Manufacturer: SICK
Type: Contrast Sensor
Model: KT5G-2P1251S29
Part Number: 1 023 002
The SICK KT5G-2P1251S29 Contrast Sensor is a reliable and robust solution for a wide range of industrial applications, ensuring high performance in harsh environmental conditions.
| Sensing Distance | ≤ 200 mm |
| Supply Voltage | 10 to 30 V DC |
| Current Consumption | 100 mA |
| Switching Output | PNP |
| Analog Output | 2 to 10 mA |
| Connection Type | Male connector M12, 4-pin |
| Housing Design | Rectangular |
| Dimensions (W x H x D) | 30.4 x 53 x 80 mm |
| Housing Material | Metal, zinc diecast |
| Enclosure Rating | IP67 |
| Operating Temperature | –10 to 55 °C |
