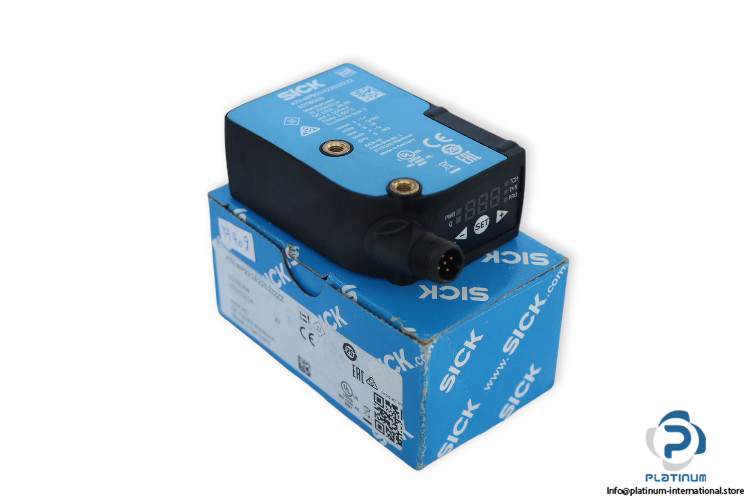

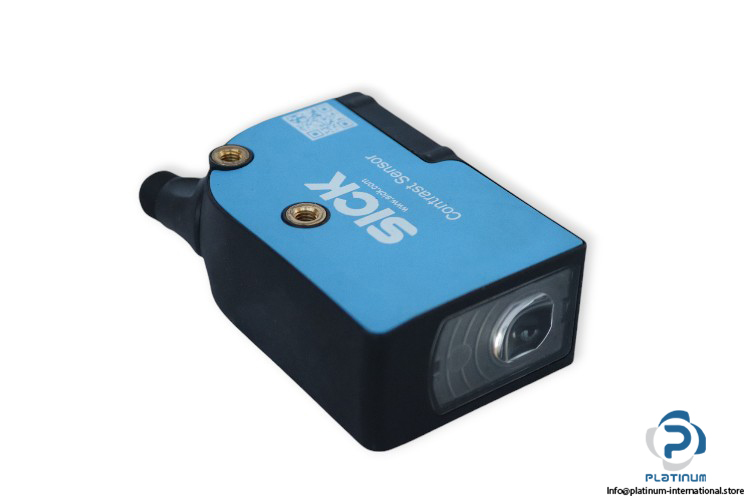

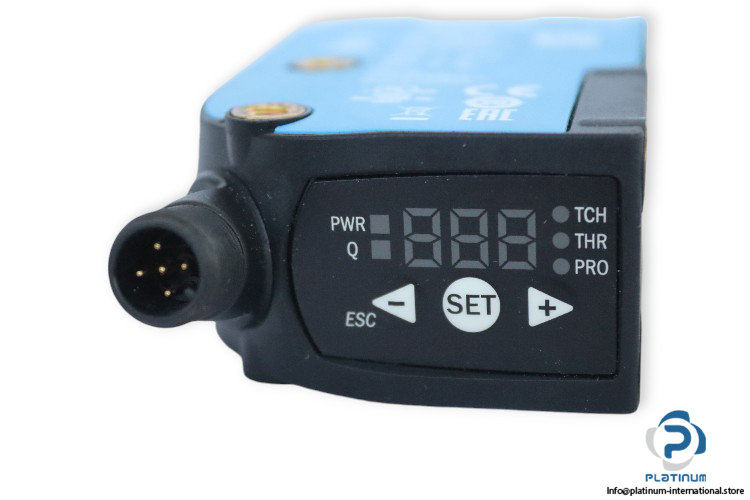

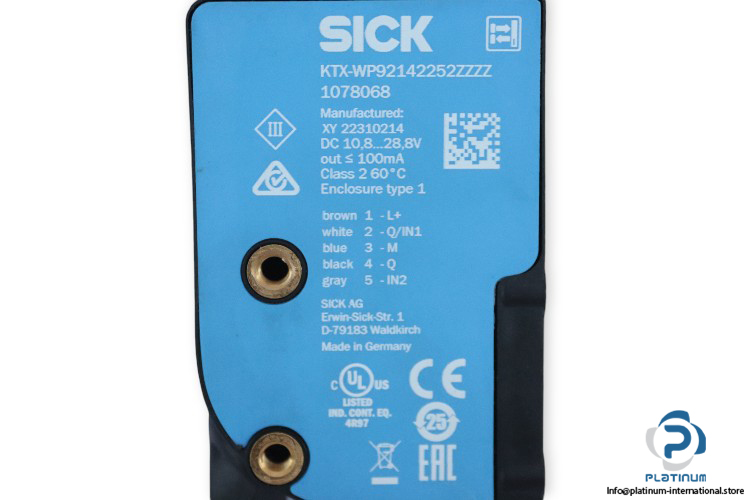

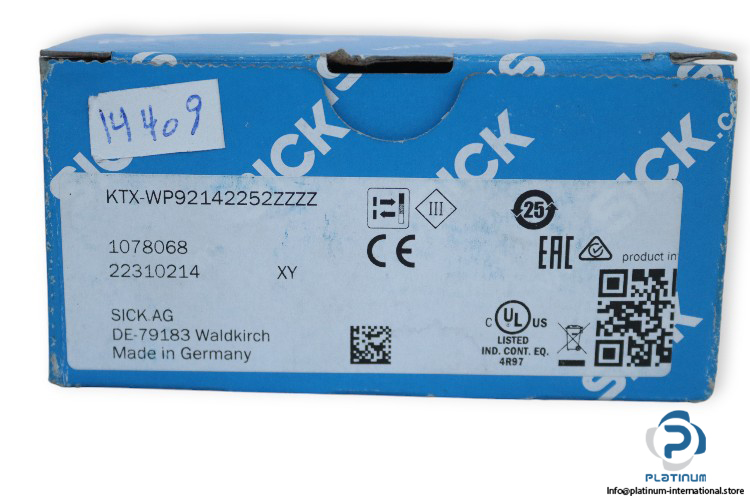

Sick KTX-WP92142252ZZZZ Contrast Sensor

Manufacturer: SICK
Type: Contrast Sensor
Model: KTXWP92142252ZZZZ
Part No.: 1078068 / 22310214

Sensing Range: 13 mm
Housing Design (Light Emission): Large
Operating Voltage: 10.8 … 28.8 V DC
Output Current: 100 mA
Switching Output: PNP
Connection Type: Male Connector M12, 5-Pin
Output Function: Light/Dark Switching
Light Spot Direction: Horizontal
Light Source: LED, RGB
Wave Length: 470 / 525 / 625 nm
Light Spot Size: 3.8 x 0.9 mm
Housing Material: VISTAL®
Protection Class: IP67
Operating Temperature: -20 … 60 °C
Dimensions: 12 x 40 x 22 mm
