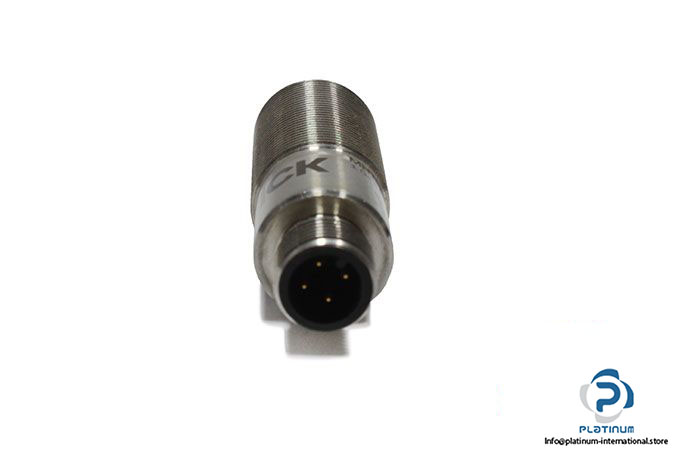

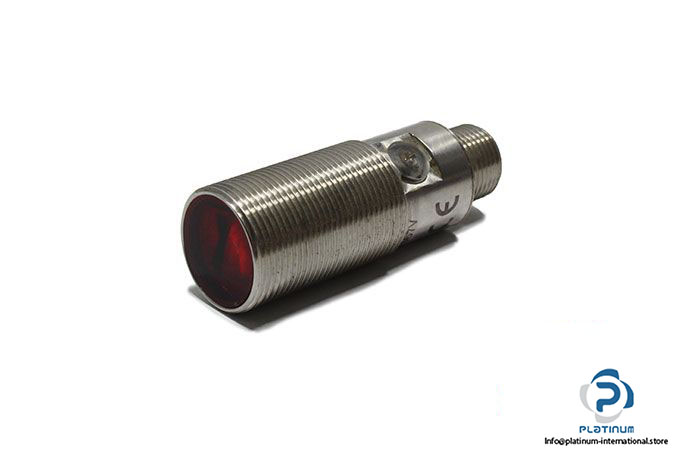

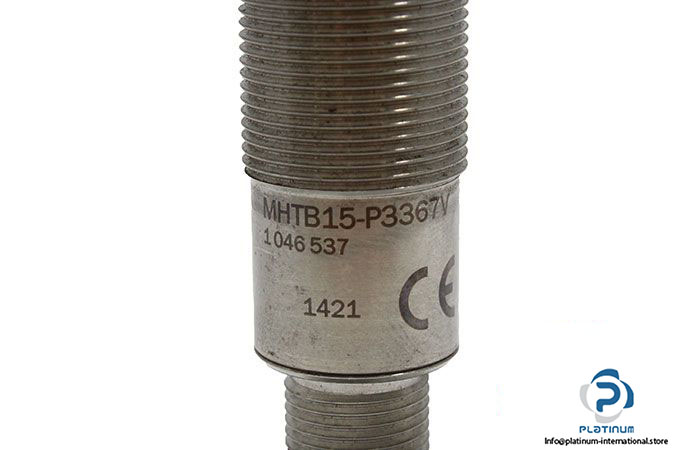

Sick MHTB15-P3367V Photoelectric Proximity Sensor

Manufacturer: SICK

Type: Photoelectric Proximity Sensor

Model: MHTB15-P3367V

Part No.: 1046537

Housing Design (Light Emission): Cylindrical, straight

Housing Length: 52.9 mm

Thread Diameter (Housing): M18 x 1

Sensing Range: 3 … 300 mm

Type of Light: Visible red light

Supply Voltage: 10 … 30 VDC

Power Consumption: ≤ 30 mA

Protection Class: III

Output Type: PNP

Switching Frequency: 700 Hz

Switching Mode: Light switching

Connection Type: Connector M12, 4-pin

Housing Material: Stainless steel, Stainless steel V4A

Enclosure Rating: IP 67, IP 68, IP 69K

Ambient Operating Temperature: -25  … 55 °C
