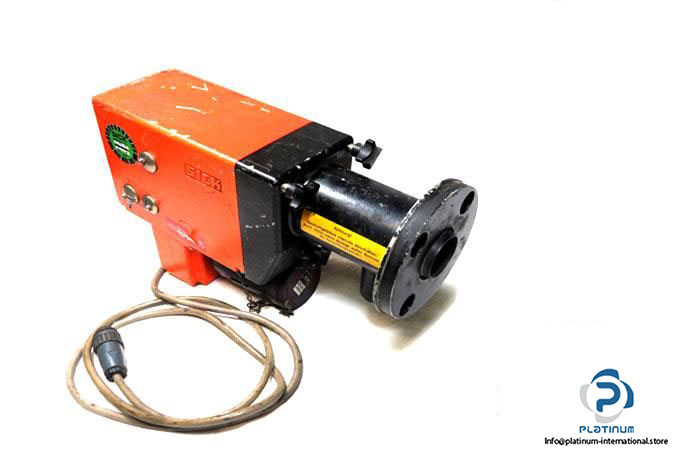

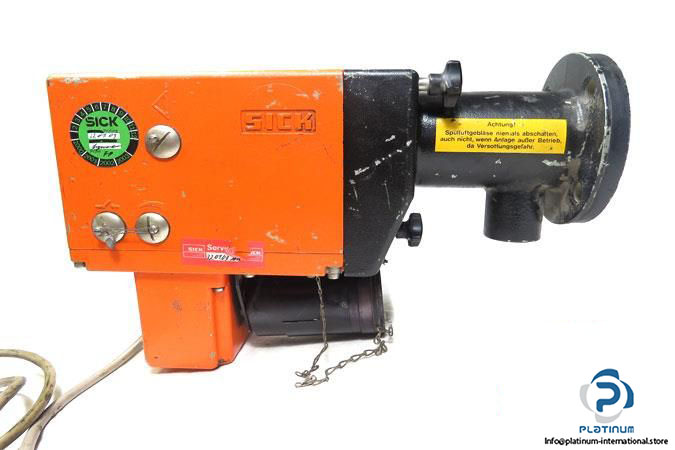

Sick RM61- 02 Dust Measuring Device

Manufacturer: SICK

Type: DUST MEASURING DEVICE

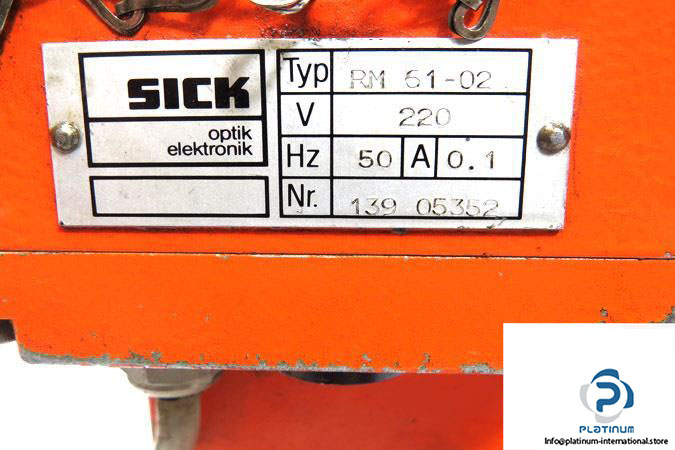

Model: RM 61- 02

Main Components:

Transceiver Unit:

Part No.:139 05352

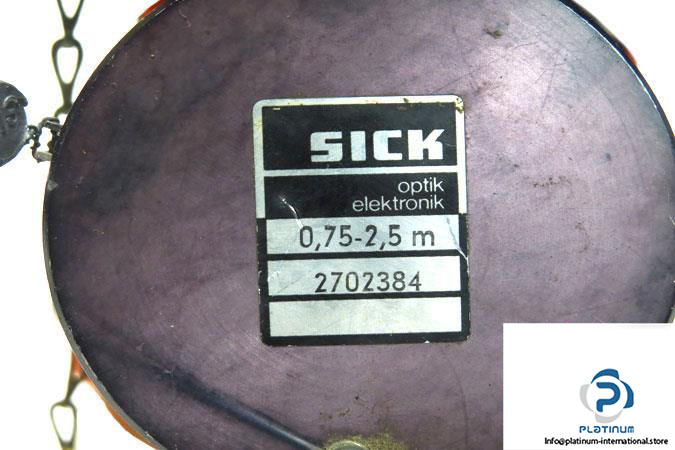

Reflector Unit:

Part No.: 2702384

Supply voltage: 220 V AC

Frequency: 50 Hz

Dust concentration (min., max.): 0 …200 / 0… 4000 mg/m³

Connection: PVC Cable

Class protection: IP65

Ambient operating temperature: -20 … +55°C

Supplied Accessories: lens cloth

Condition: Used

Plant Data:

Measuring path: 0.75 … 2.5 m

Meas. gas temperature: above the dew point up to 600 °C

Meas. gas pressure: max. +10 hPa

Replaced by: (OMD41) Opacity and Dust Concentration Monitor

Part No.: 2027216
