Sick UM30-214111 Ultrasonic Sensor

Manufacturer: Sick

Type: Ultrasonic Sensor

Model: UM30-214111

Part No.: 6037662

Sensing Range: 350 mm … 3,400 mm, 5000 mm

Operating Voltage: 9 …. 30 V DC

Output Current: 200 mA

Electrical Design: PNP

Switching Frequency: 4 Hz

Response Time: 180 ms

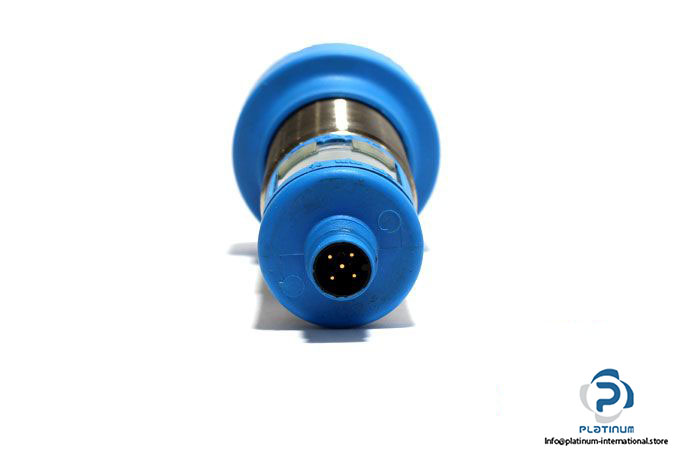

Connector Type: Male M12 Connector, 5-pin

Enclosure Rating: IP65/IP67

Ambient Operating Temperature: -20 … 70°C

Diameter, Housing Length: 47.5 x 102 mm

Housing Material: Nickel-plated brass, PBT

Sensing Face Material: Ultrasonic transducer: polyurethane foam, glass epoxy resin

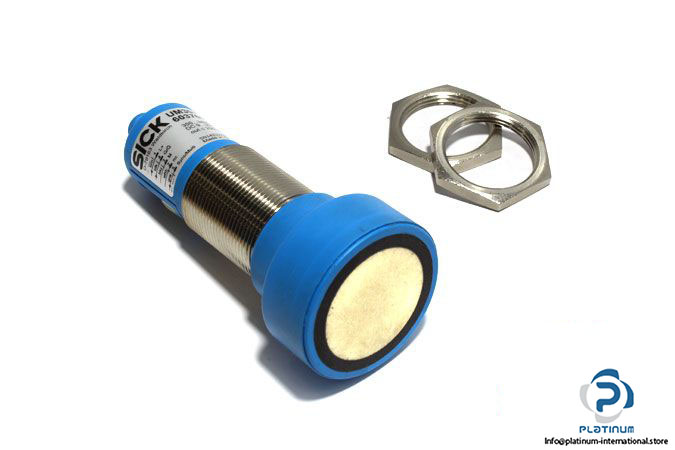

Supplied Items: 2 Lock nuts
