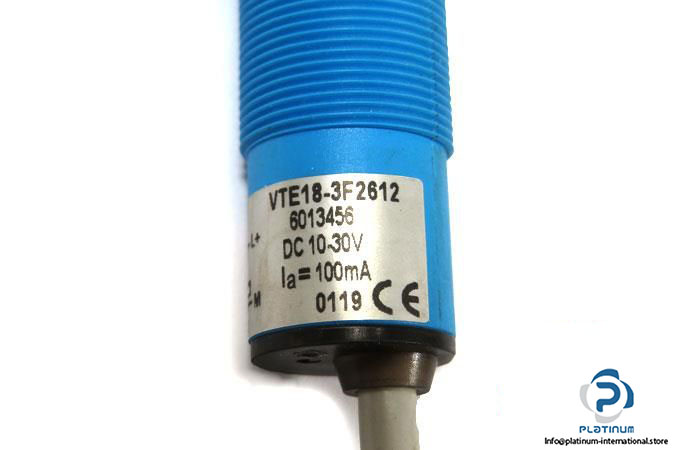

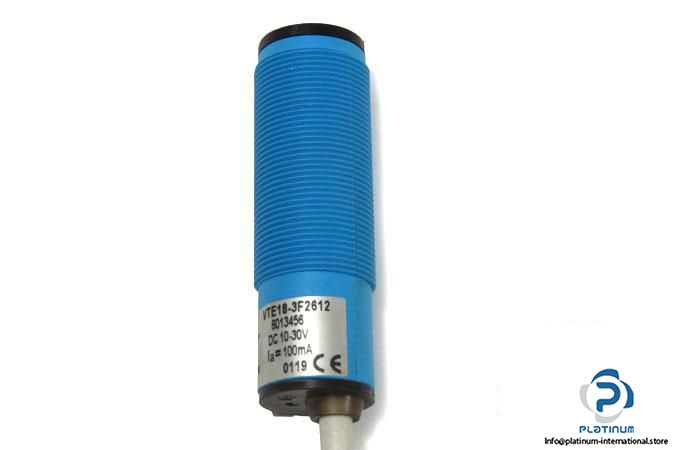

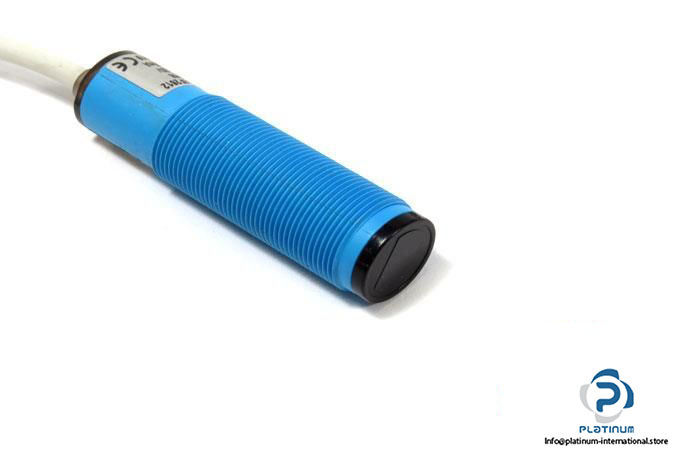

Sick VTE18-3F2612 Photoelectric Proximity Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC PROXIMITY SENSOR, ENERGETIC

Model: VTE18-3F2612

Part No.: 6013456

Sensing Range: 3 … 200 mm

Response time max.: 2 ms

Operating Voltage: 10 … 30 V DC

Ripple: 10%

Switching frequency: 250 Hz

Continuous current: 100 mA DC

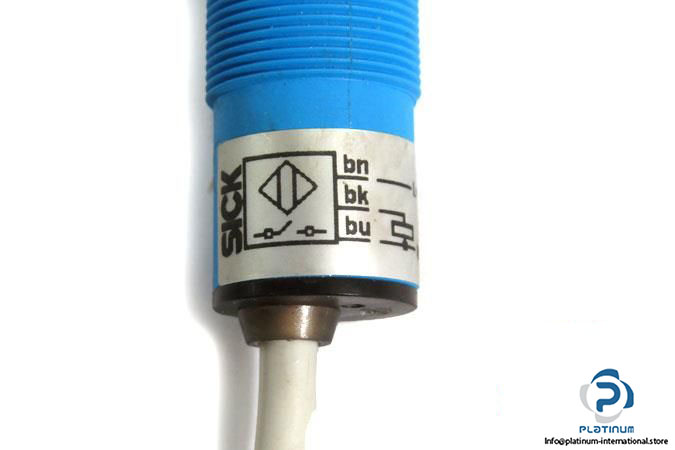

Switching output: PNP

Switching mode: Light switching

Type of light: Infrared light

Light spot size, distance: 10, 200 mm

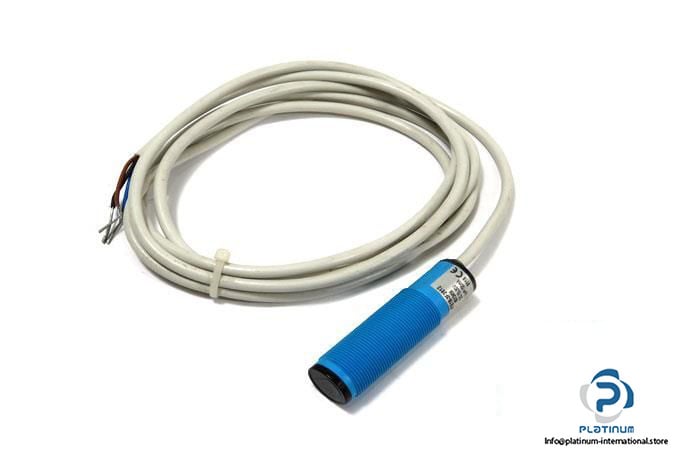

Connector type: PVC cable, 2 m

Protection class: III

Enclosure rating: IP67

Ambient Operating temperature: -25 … 75°C

Diameter, housing length: 18, 63.6 mm

Housing: Threaded type

Housing material: Plastic

Optics material: Plastic PMMA

Mounting: flush-mountable
