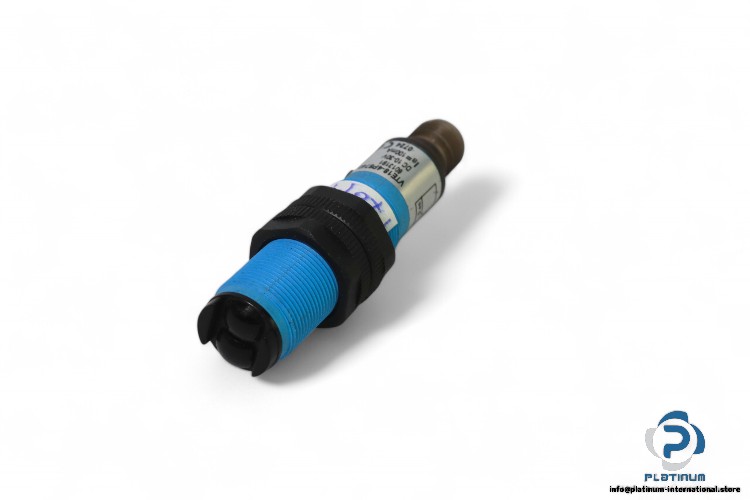

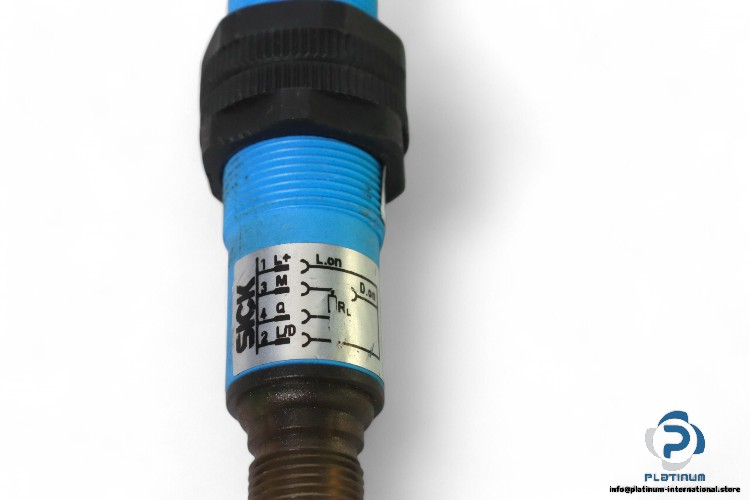

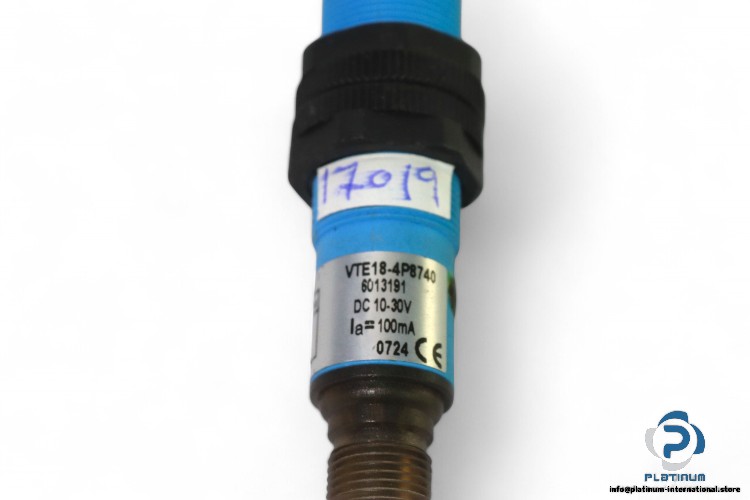

Sick VTE18-4P8740 Photoelectric Proximity Sensor

Manufacturer: SICK
Type: Photoelectric Proximity Sensor
Model: VTE 18-4P8740
Part no.: 6013191

Supply voltage: 10 V DC … 30 V DC
Current consumption: 30 mA
 Switching output: PNP
Switching mode: Light/dark switching
 Switching mode selector: Selectable via L/D control cable Output current Imax.: 100 mA
Housing design (light emission): Cylindrical
Housing length: 78 mm
Thread diameter (housing): M18 x 1
Optical axis: Axial
Sensing range max.: 10 mm … 800 mm
Sensing range: 10 mm … 700 mm
Focus Approx.: 2.8°
Type of light: Infrared light
Light source: LED
Light spot size (distance): Ø 40 mm (800 mm)
Angle of dispersion Approx.: 2.8°
Adjustment: Potentiometer, 270°

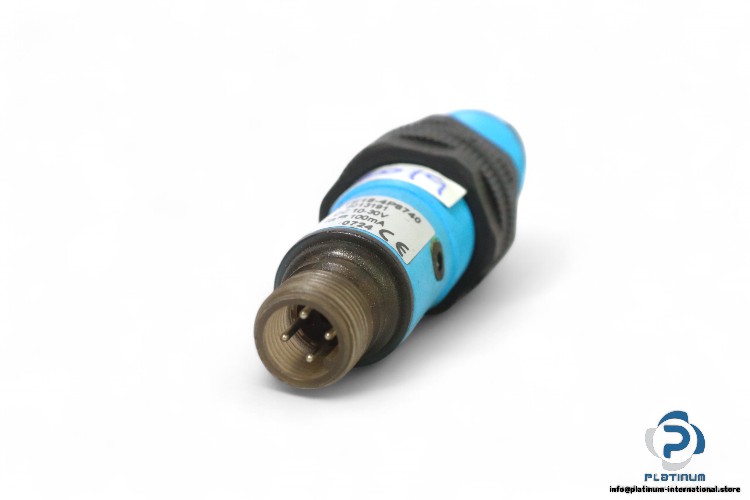

Connection type: Male connector M12, 4-pin
Housing material: Plastic, PBT/PC
Enclosure rating: IP67
Ambient operating temperature: –25 °C … +70 °C
Dimensions (W x H x D): 18 mm x 18 mm x 78 mm
