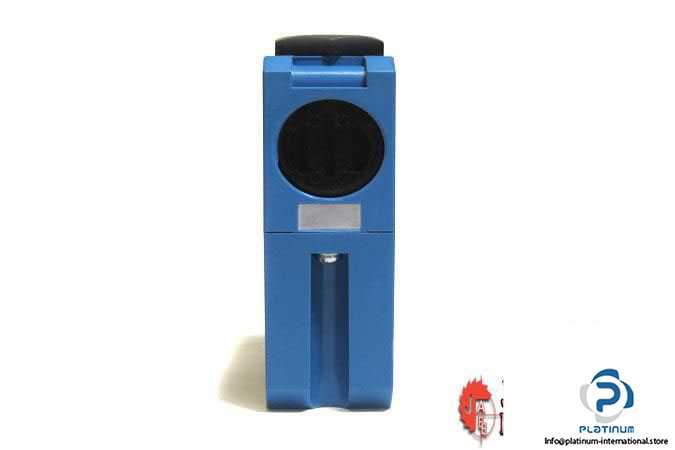

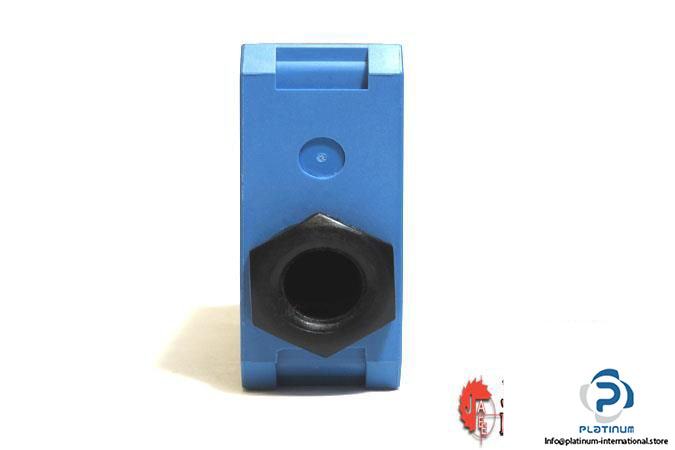

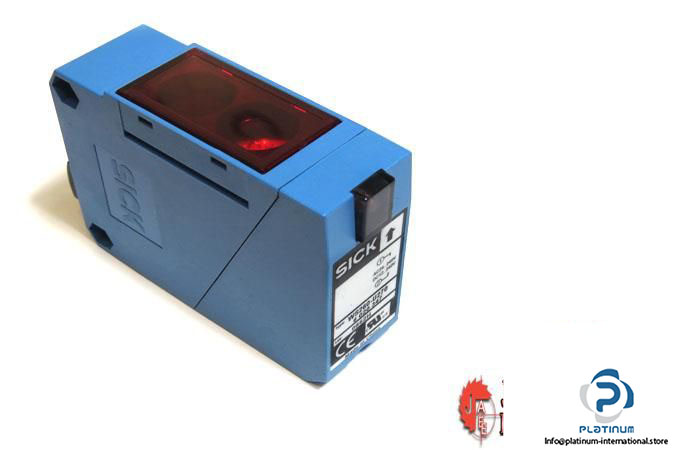

Sick WE260-S270 Through-Beam Photoelectric Sensor

Manufacturer: SICK

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR

Model: WE260-S270

Part No.: 6020676

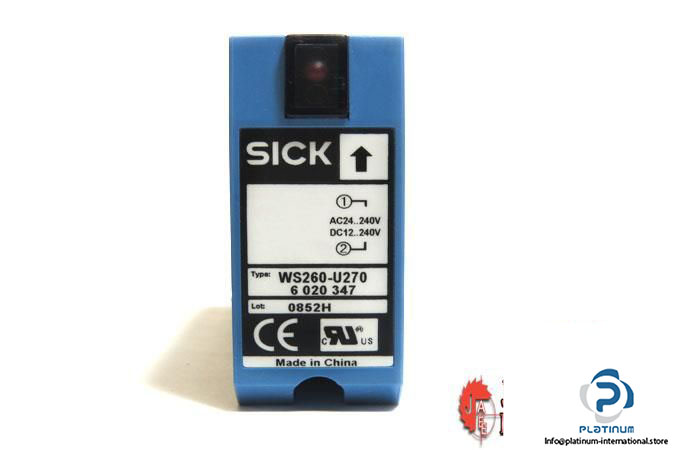

Configured with: WS260-U270

Supply voltage: 12 … 240 V DC, 24 … 240 V AC

Switching current (switching voltage): 3A(240 V AC) 3A(30 V DC)

Power consumption, receiver: ≤ 5 VA

Sensing range max.: 0 … 45 m

Sensing range: 0 … 40 m

Response time: ≤ 20 ms

Switching frequency:  25 Hz

Switching output: Relay, electrically isolated

Output function: Change over contacts

Light spot size: 40 m

Angle of reception: Approx. 20°

Adjustment: Potentiometer, 270°

Light source, type: LED, Visible red light

Connection type: Cable gland

Ambient operating temperature: -25 … +55°C

Enclosure rating: IP67

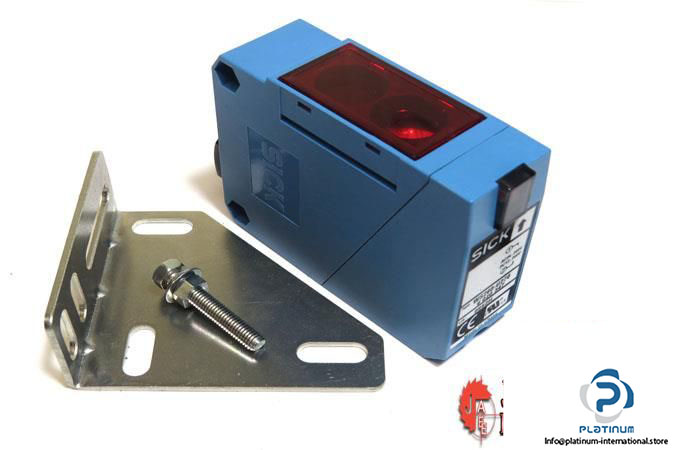

Items supplied: Mounting bracket BEF-W260

Dimensions (W X H X D): 25 X 78 X 63 mm
