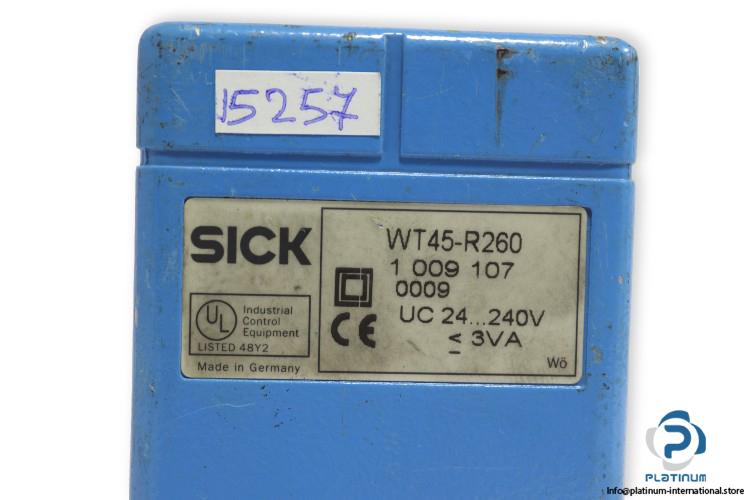

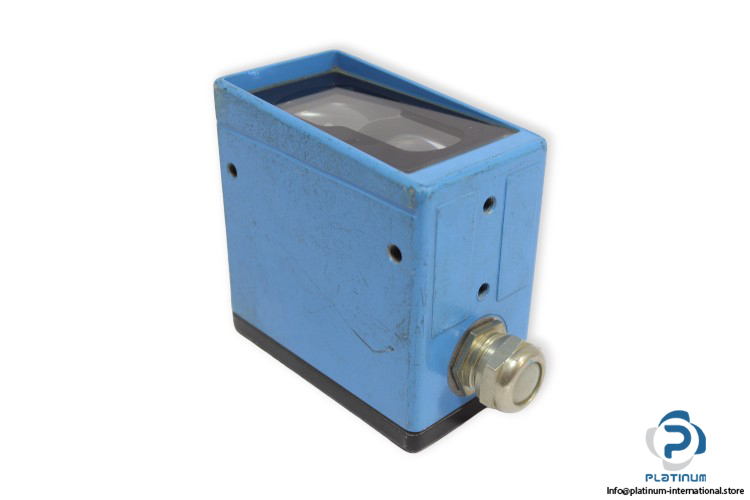

Sick WT45-R260 Photoelectric Proximity Sensor

Manufacturer: Sick
Type: Photoelectric proximity sensor
Model: WT45R260

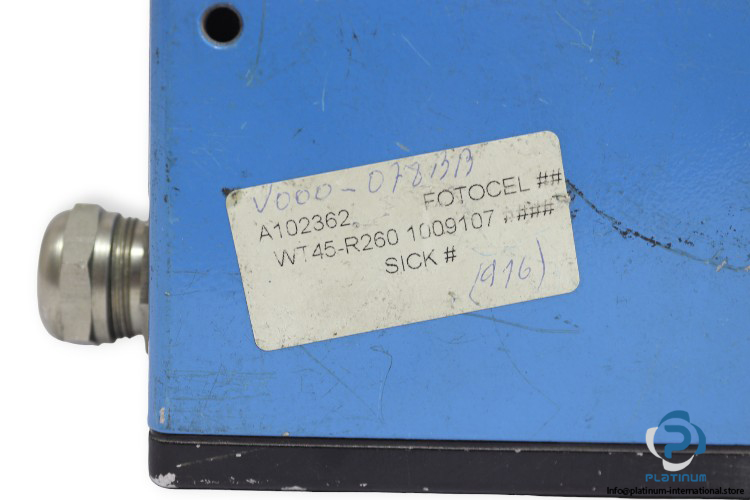

Part No.: 1 009 107 0009 / 1009107 / A102362

Supply voltage: 24 … 240 V AC/DC
Power consumption: ≤ 3 VA
Sensing range max: 200 … 2,000 mm
Sensing range: 200 mm … 2,000 mm
Type of light: Infrared light
Switching frequency: 10 Hz
Switching output: Relay, electrically isolated
Output function: Change-over contact
Switching current (switching voltage): 4 A @ 250 V AC, 4 A @ 24 V DC, 0.125 A @ 120 V DC, 4 A @ 250 V AC, general purpose / 2 A @ 250 V AC, pilot duty
Switching mode: Light/dark switching
Light source: LED
Light spot size (distance): Ø 35 mm (2,000 mm)
Adjustment: Potentiometer
Housing material: Metal
Housing design: Rectangular
Enclosure rating: IP67
Ambient operating temperature: -25 … +55°C
Dimensions (W x H x D): 60 x 105 x 105 mm
