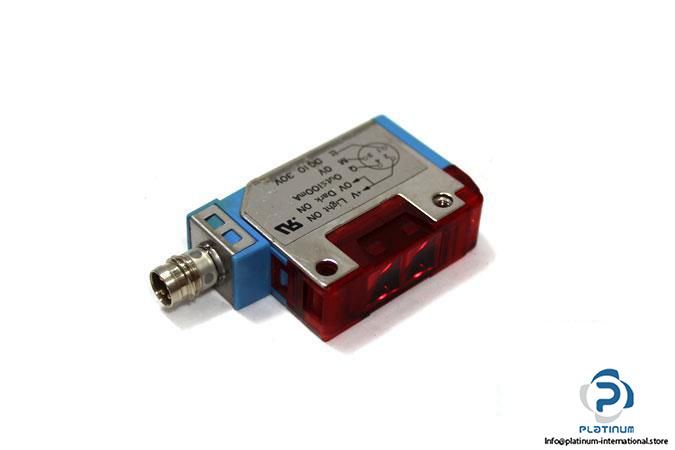

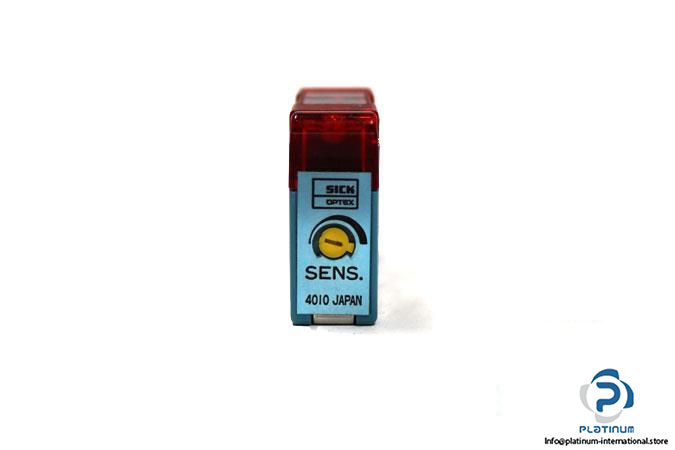

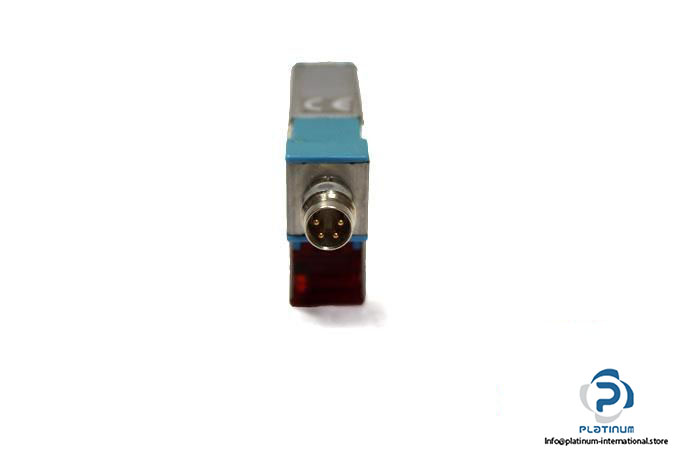

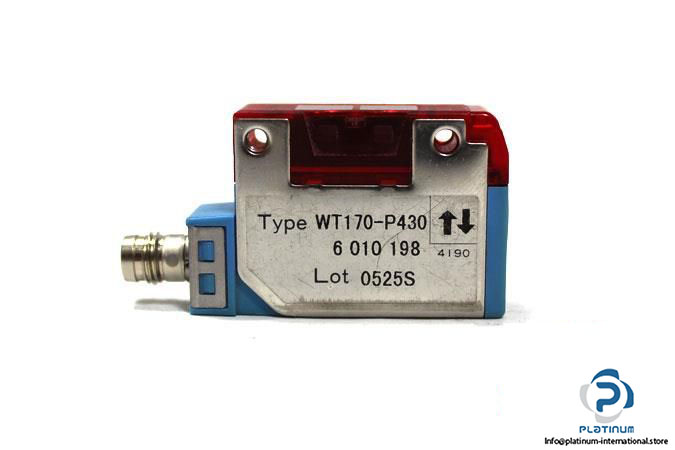

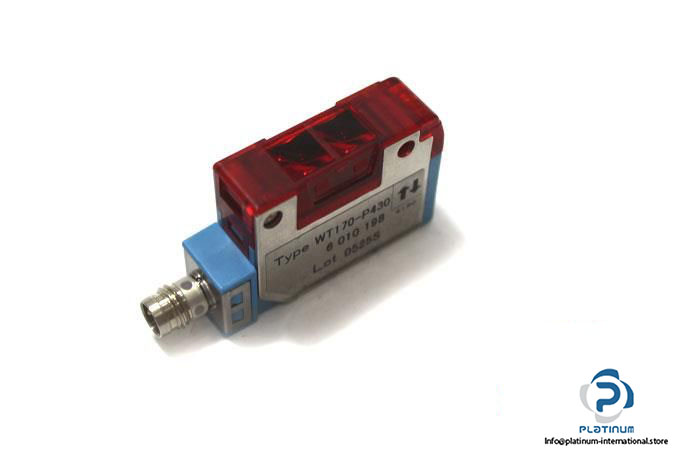

Sick WT170-P430 Photoelectric Proximity Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC PROXIMITY SENSOR, BACKGROUND SUPPRESSION

Model: WT170-P430

Part No.: 6010198

Sensing range max.: 10 … 550 mm

Sensing range: 10 mm … 400 mm

Response time: ≤ 0.7 ms

Operating Voltage: 10 … 30 V DC

Power consumption: 30 mA

Output current: 100 mA

Switching output: PNP

Switching mode: Light/dark switching

Light source, type of light: LED, visible red light

Connector type: Male connector M8, 4-pin

Enclosure rating: IP67

Ambient Operating temperature: -25 … 55°C

Dimensions: 12 x 37 x 28.6 mm

Housing: Rectangular

Housing material: Stainless steel, Stainless steel/ABS

Sensing face material: Plastic, PC

Condition: Used
