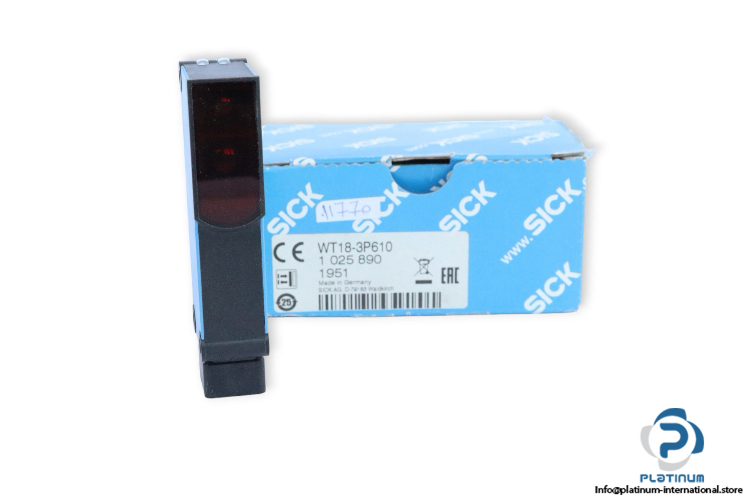

Sick WT18-3P610 Diffuse Proximity Sensor
Manufacturer: SICK
Type: Diffuse Proximity Sensor
Model: WT183P610
Part No.: 1025890 / 1951
Sensing Range: 50 … 700 mm
Housing Design (Light Emission): Rectangular
Supply Voltage: 10 … 30 V DC
Output Current Max.: 100 mA
Switching Output: PNP

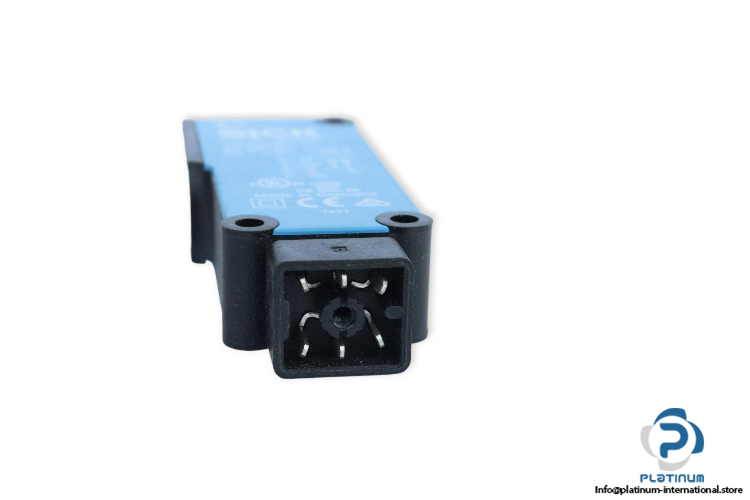

Connection Type: Cubic Connector, 6-Pin
Switching Mode: Light / Dark Switching
Housing Material: Plastic, ABS
Wave Length: 870 nm
Light Spot Size: 20 mm
Protection Class: IP65
Operating Temperature: -40 … 60 °C
Dimensions (W x H x D): 75.5 x 17.6 x 33.5 mm
