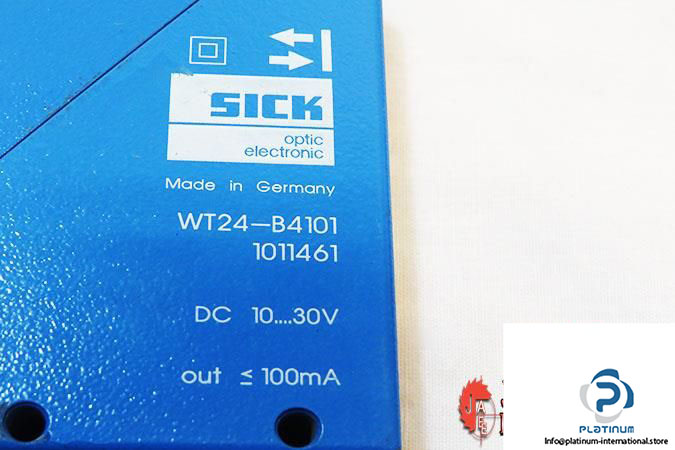

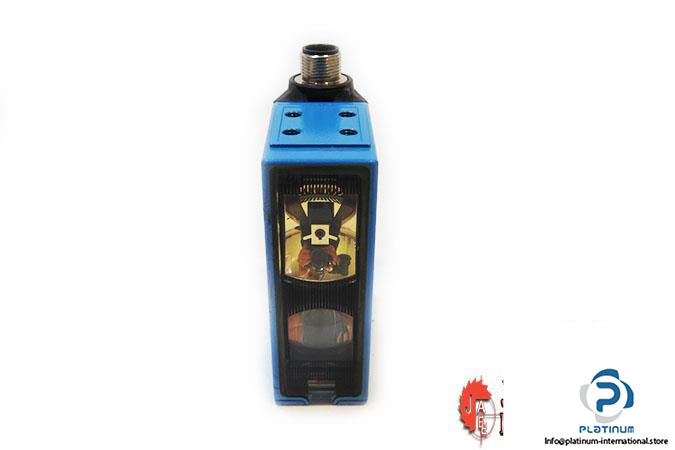

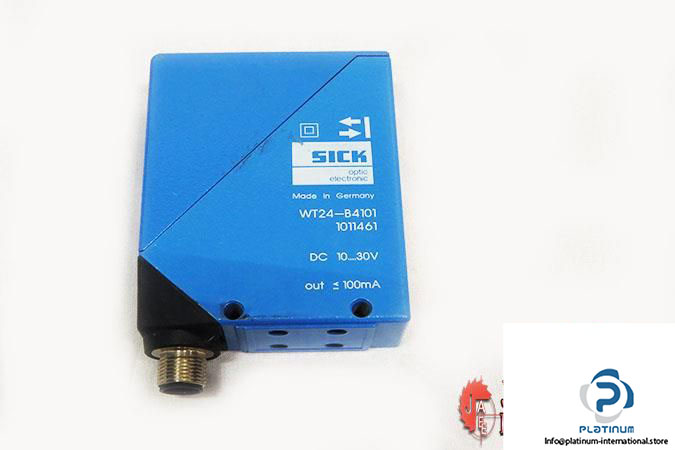

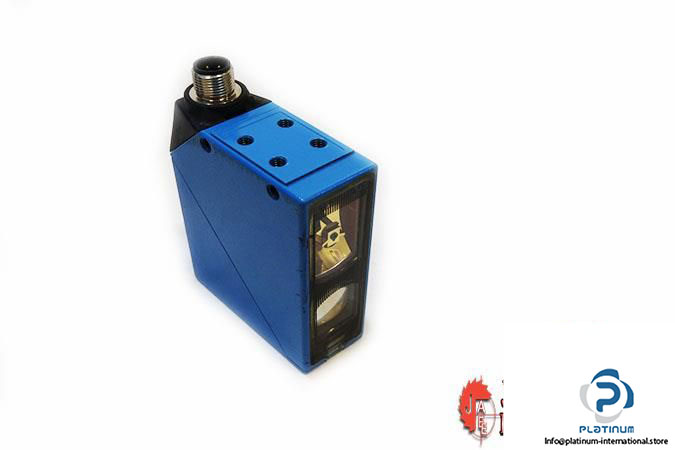

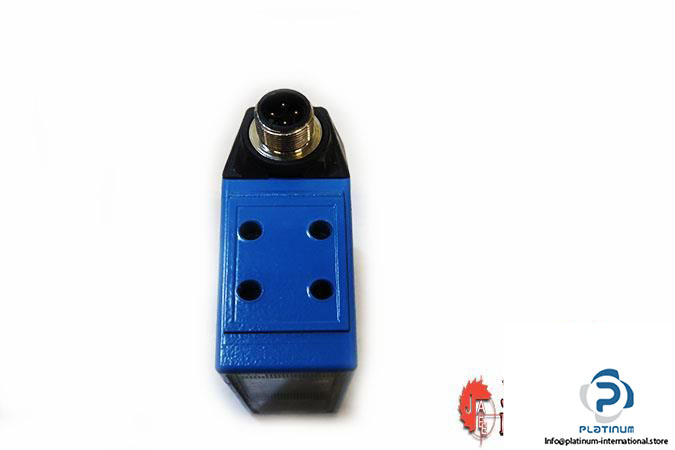

Sick WT24-B4101 Photoelectric Proximity Sensor

Manufacturer: SICK

Type: PHOTOELECTRIC PROXIMITY SENSOR

Model: WT24-B4101

Part No.: 1011461

Dimensions (W x H x D): 27 mm x 87.5 mm x 65 mm

Housing design (light emission): Rectangular

Sensing range max.: 100 mm … 2,500 mm

Sensing range: 100 mm … 2,500 mm

Type of light: Infrared light

Light source: LED ²

Light spot size (distance): Ø 80 mm (2,500 mm)

 Supply Voltage: 10 V DC … 30 V DC

Ripple: < 5 V_pp ²

Power consumption: ≤ 50 mA ³

Switching output: NPN/PNP

Output current I_max.: ≤ 100 mA

Ambient operating temperature: –40 °C … +60 °C

Weight: 330 g

Condition: New
