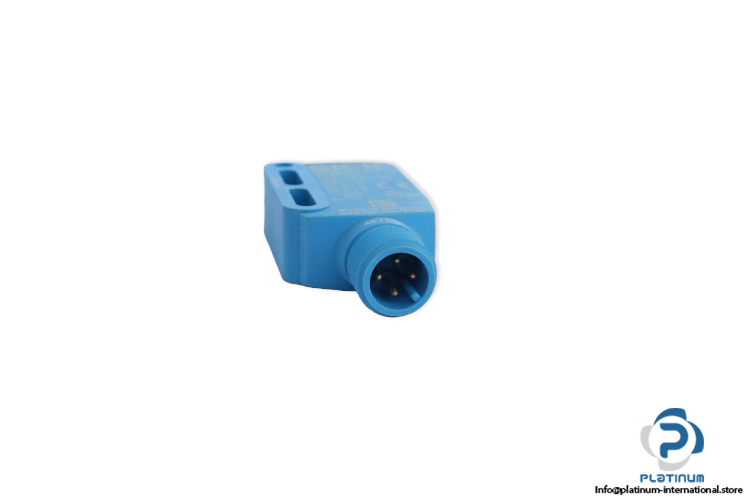

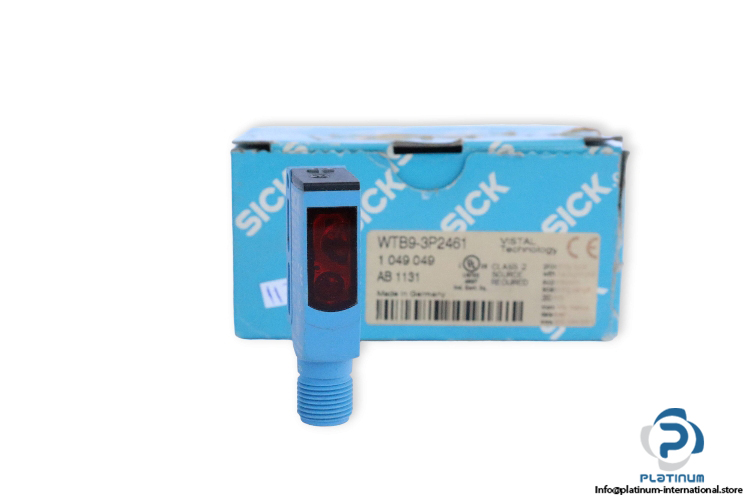

Sick WTB9-3P2461 Diffuse Proximity Sensor

Manufacturer: SICK
Type: Diffuse Proximity Sensor
Model: WTB93P2461
Part No.: 1049049 / AB 1131

Sensing Range: 20 … 350 mm
Housing Design (Light Emission): Rectangular
Supply Voltage: 10 … 30 V DC
Output Current Max.: 100 mA
Switching Output: PNP
Connection Type: Male Connector M12, 4-Pin
Switching Mode: Light / Dark Switching
Housing Material: Plastic, ABS
Wave Length: 650 nm
Light Spot Size: 4.5 mm
Protection Class: IP65
Operating Temperature: -40 … 60 °C
Dimensions (W x H x D): 52.2 x 12.2 x 23.6 mm
