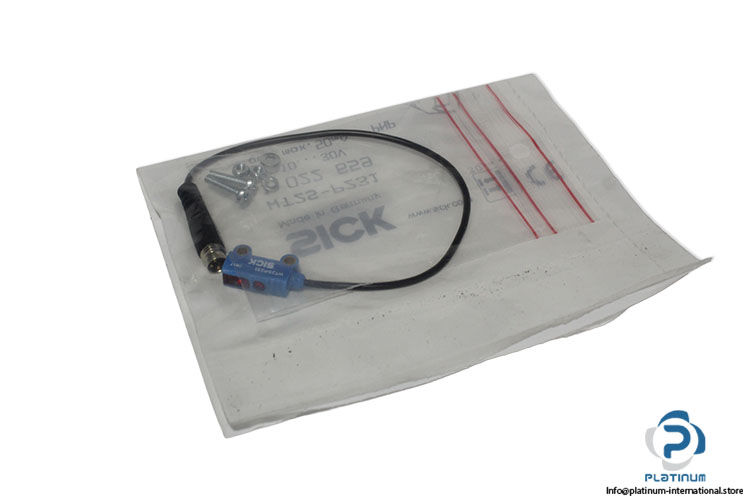

SICK WT2S-P231 Miniature Photoelectric Sensor
Neu
Auf Lager10 EinheitenVersandbereit
Photoelectric Sensor The SICK WT2S-P231 is an industrial photoelectric sensor with a 1 mm … 30 mm sensing range, PNP complementary output, and IP67 protection for reliable object detection.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | 1022 659 |
| Code | 10226590817 |
| Dimensions (W x H x D) | 7.6 mm x 25.1 mm x 12.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 1 mm ... 30 mm |
| Sensing range | 1 mm ... 30 mm |
| Focus | 15 mm |
| Type of light Visible | red light |
| Light source | PinPoint LED |
| Light spot size (distance) | 1.5 mm (15 mm) |
| Wave length | 660 nm |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | 5 Vpp |
| Switching output | PNP |
| Switching mode | Light switching |
| Output current Imax. | 50 mA |
| Response time | 0.6 ms |
| Switching frequency | 800 Hz |

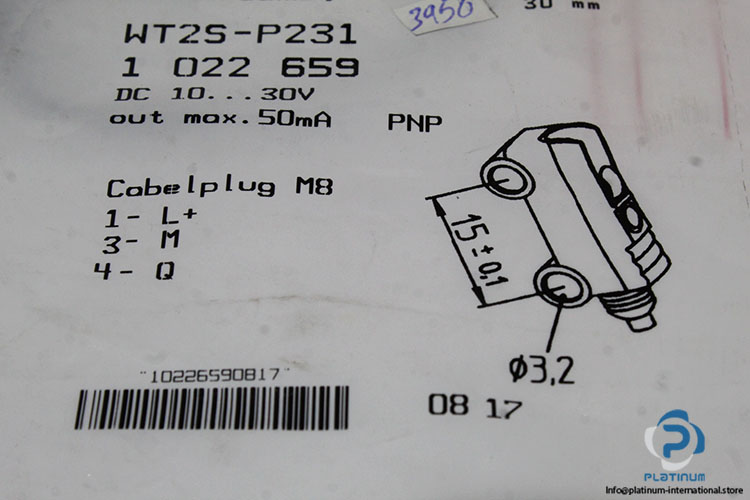

| Connection type Cable with connector | M8, 3-pin, 200 mm |
| Cable material | PVC |
| Cable diameter | 2.4 mm |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100995 |
| Weight | 0,02 |
