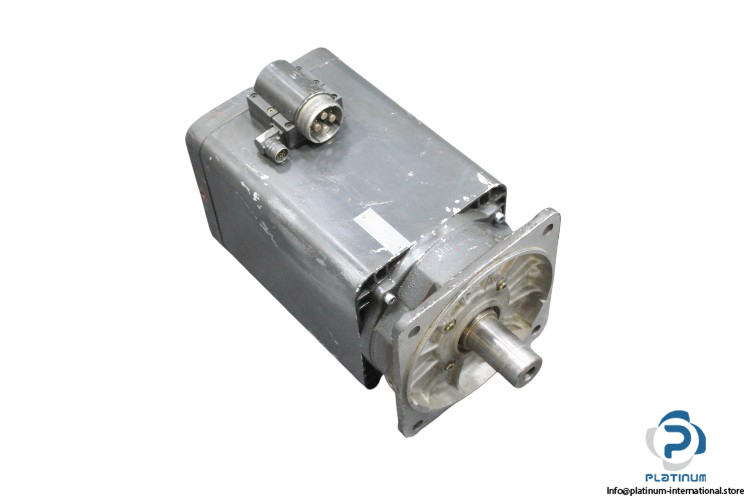

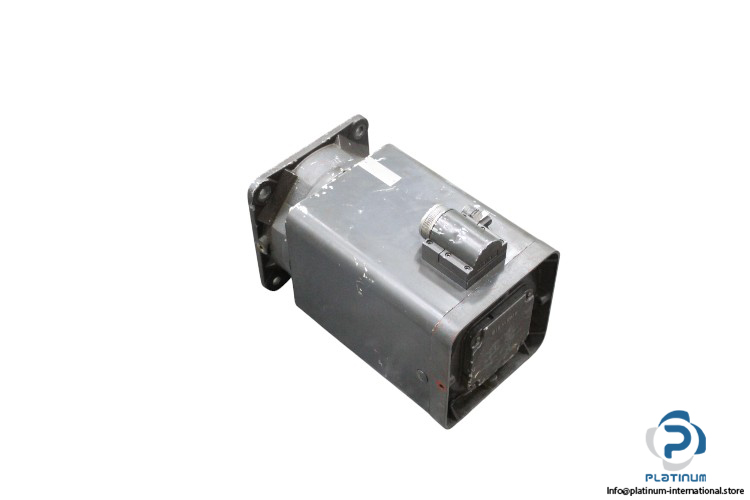

Siemens 1 FT5132-0AF71-1-Z Servo Motor
Gebraucht
Auf Lager1 EinheitVersandbereit
5 999,99$
Servo Motor
The Siemens 1FT5132-0AF71-1-Z is a high-performance servo motor with 12 Nm rated torque, IP64 protection, and 3000 rpm rated speed. Ideal for continuous-duty industrial applications requiring accuracy and durability.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Siemens 1FT5132-0AF71-1-Z Servo Motor
The Siemens 1FT5132-0AF71-1-Z is a high-performance servo motor built for demanding industrial motion control applications. With a robust design and advanced technical features like high stall torque and IP64 protection, it ensures precision, reliability, and durability in continuous-duty operations.

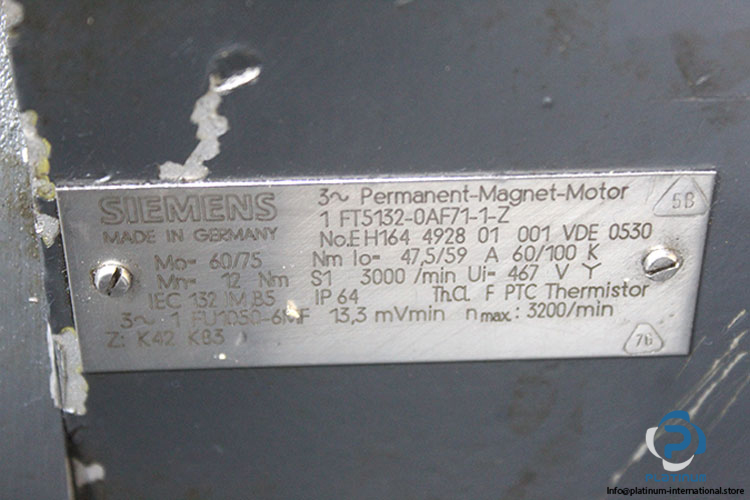

Manufacturer: Siemens
Type: Servo Motor
Model: 1FT5132-0AF71-1-Z
Part No.: EH164492801001VDE0530
| Power Supply | 3 Phase AC |
| Frame Size | 13 |
| Length | 2 |
| Cooling Type | A, Non“ventilated |
| Rated Voltage | 467 V (Star) |
| Rated Torque | 12 Nm |
| Stall Torque | 60/75 Nm |
| Stall Current | 47.5/59 A |
| Rated Speed | 3000 rpm |
| Maximum Speed | 3200 rpm |
| Voltage Constant | 13.3 mVmin |
| Resistor | 60/100 K |
| Mounting Position | B5 |
| Standard | IEC 132 |
| Duty | S1 (Continuous Duty) |
| Protection Class | IP 64 |
| Thermistor Sensor | PTC |
| Thermal Class | F |
