SIEMENS 1CV3205A 3-PHASE E-MOTOR
The Siemens 1CV3205A is a high-efficiency three-phase electric motor engineered for reliable performance in demanding industrial applications. With dual voltage and frequency ratings, it ensures optimal operation across varied power systems while maintaining durability and precision.

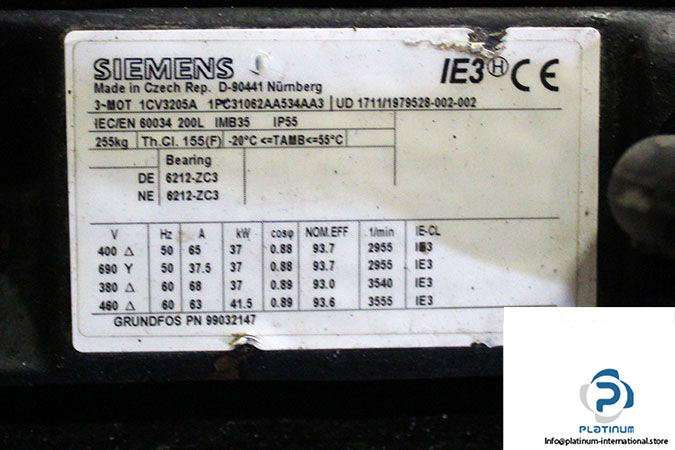

Manufacturer: Siemens
Type: 3 Phase E-Motor
Model: 1CV3205A
Product Code: 1PC31062AA534AA3
REF NO: UD 1711/1979528-002-002

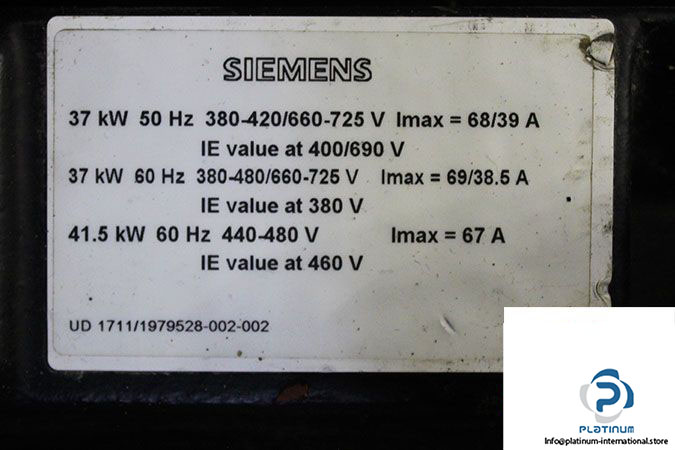

50 Hz Operation:
60 Hz Operation:
| Rated Voltage | 400/690 V (Delta/Star) |
| Rated Current | 65/37.5 A |
| Rated Speed | 2955 rpm |
| Rated Power | 37.0 kW |
| Power Factor (cosø) | 0.88 |
| Rated Voltage | 380/460 V (Delta) |
| Rated Current | 93.0/93.6 A |
| Rated Speed | 3540/3555 rpm |
| Rated Power | 37.0/41.5 kW |
| Power Factor (cosø) | 0.89 |
| Ambient Temperature | -20 / 55 °C |
| Mounting Position (IM) | B35 |
| Protection Class (IP) | 55 |
| Insulation Class | F |
