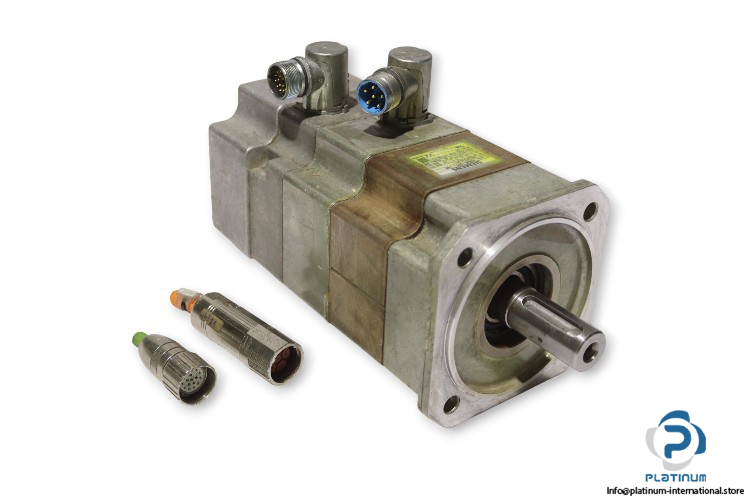

Siemens 1FK6060-6AF71-1AB0 Servomotor
1 199,99$
Servomotor
High-performance Siemens 1FK6060-6AF71-1AB0 three-phase AC servomotor with 4.0 Nm rated torque, 3000 rpm speed, and 24 V DC brake. Compact and precise motion control solution for automation and machinery applications.Siemens 1FK6060-6AF71-1AB0 SIMOTICS S Servomotor
The Siemens 1FK6060-6AF71-1AB0 is a high-performance three-phase AC servomotor from the SIMOTICS S 1FK6 series. Engineered for precision, speed, and reliability, this compact motor is ideal for demanding automation applications requiring dynamic control and energy efficiency. Its robust design ensures smooth operation even under heavy mechanical loads, providing outstanding accuracy and long service life.
Manufacturer: Siemens
Type: 3ph-AC Servomotor
MNR: 1FK6060-6AF71-1AB0
Product Family: SIMOTICS S (1FK6 Series)

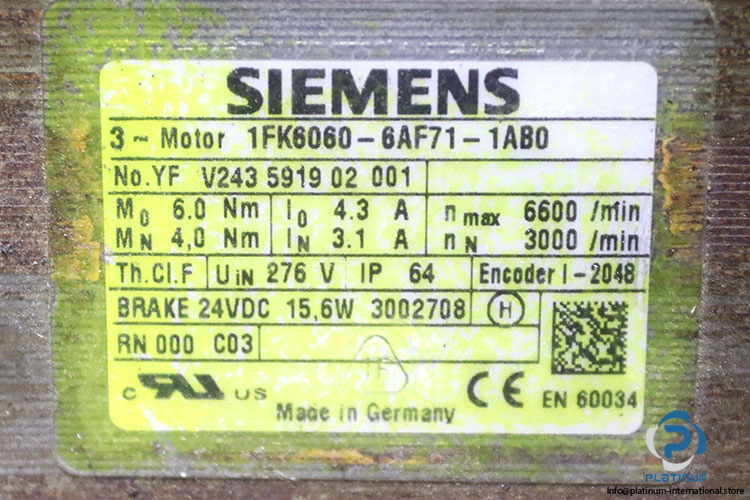

Serial / Production Code: V243 5919 02 001
Designed to deliver consistent torque and precise motion, the Siemens SIMOTICS S servomotor ensures seamless integration with drive systems, CNC machinery, and robotics. Its high-speed capability, combined with an advanced encoder, provides excellent positioning accuracy for automation lines, conveyors, and motion control assemblies. With robust construction, efficient cooling, and industry-standard compliance, this motor is built to last and maximize productivity.
| Brake Type | Electromagnetic holding brake |
| Brake Voltage | 24 V DC |
| Brake Power | 15.6 W (Type 3002708) |
| Standards Compliance | EN 60034, CE Certified, UL Recognized |
| Rated Torque (MN) | 4.0 Nm |
| Maximum Torque (M0) | 6.0 Nm |
| Rated Current (IN) | 3.1 A |
| Maximum Current (I0) | 4.3 A |
| Rated Speed (nN) | 3000 rpm |
| Maximum Speed (nmax) | 6600 rpm |
| Rated Voltage (Uin) | 276 V (3-phase AC) |
| Type of Current | Three-phase (3 phase) |
| Encoder Type | Incremental Encoder “ 2048 pulses/rev |
| Protection Class | IP64 |
| Thermal Class | F (Standard insulation system) |
| Frame Size | Compact aluminum housing (1FK6060 standard) |
| Cooling Type | Natural convection (self-cooled) |
| Shaft Type | Smooth shaft with keyway |

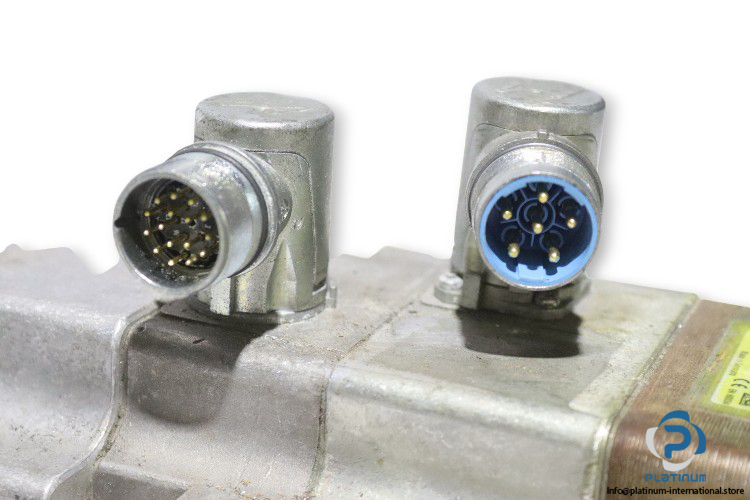

| Connector Configuration | 1x Power connector (silver), 1x Encoder connector (blue) |

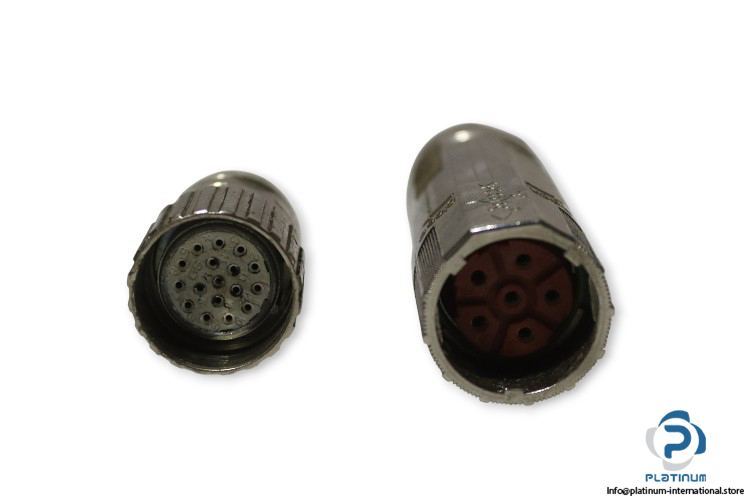

| Included Accessories | Power and feedback connectors (metal circular type) |
| Mounting Type | Flange mounting |
| Service Life of Bearing | 20000 h (guideline) |
| Ambient Temperatures | -15 to +40 °C |
