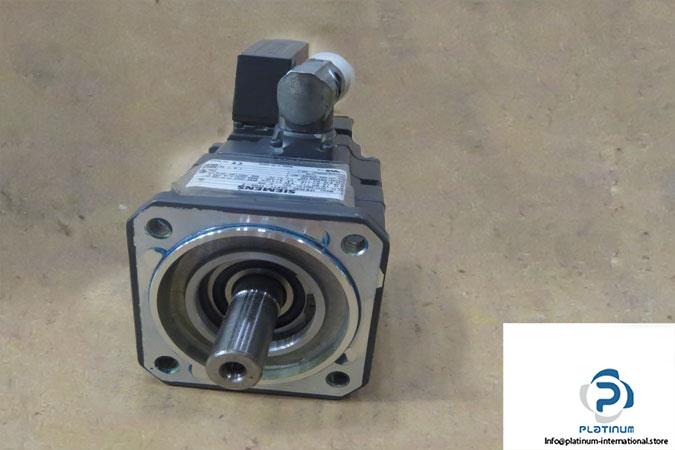

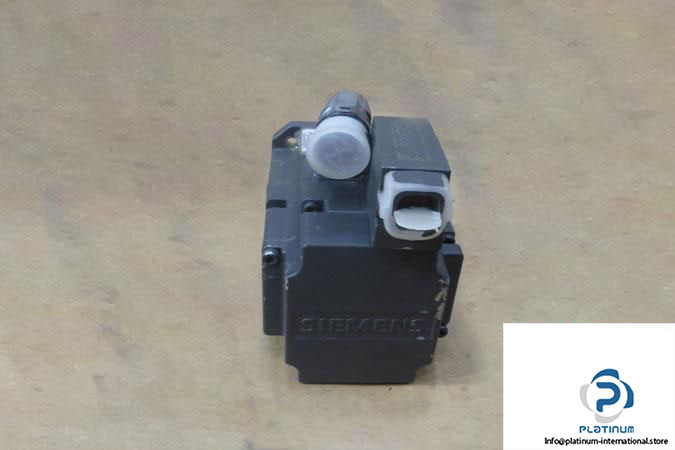

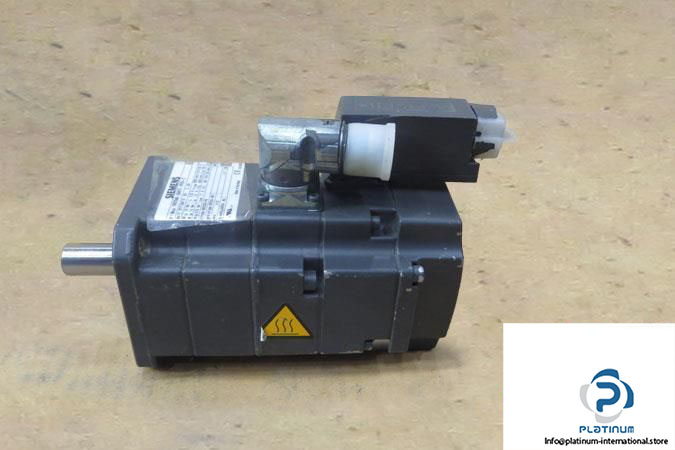

Siemens 1FK7040-5AK71-1FG5-Z AC Servo Motor
Neu
Auf Lager1 EinheitVersandbereit
1 250,00$
SIEMENS AC SERVO MOTOR
1FK7040-5AK71-1FG5-Z synchronous servo motor with integrated SP075S gear unit and AM22DQ encoder. Offers 0.57 kW power, 6000 rpm speed, and 1.6 Nm torque, suitable for demanding industrial automation systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
SIEMENS 1FK7040-5AK71-1FG5-Z SYNCHRONOUS AC SERVO MOTOR
The Siemens 1FK7040-5AK71-1FG5-Z is a high-efficiency synchronous AC servo motor engineered for precision-driven automation and motion control systems. Designed with a gear unit and advanced encoder, it delivers exceptional torque and performance under industrial conditions.

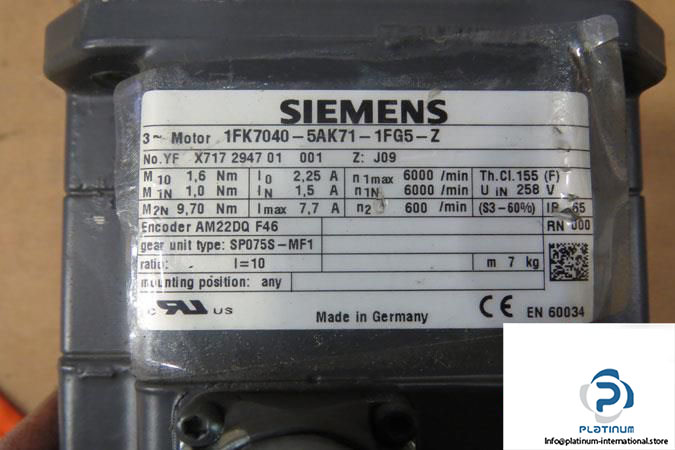

Manufacturer: SIEMENS
Type: Synchronous AC Servo Motor
Model: 1FK7040-5AK71-1FG5-Z
No. yf: X717 2947 01 001
Ref No.: J09
| Voltage | 258 V |
| Standstill Torque | 1.6 Nm |
| Rated Torque | 1 / 9.7 Nm |
| Standstill Current | 2.25 A |
| Rated Current | 1.5 A |
| Max Current | 7.7 A |
| Rated/Max Speed | 6000 rpm |
| Output Speed | 600 rpm |
| Rated Output | 0.57 kW |
| Protection Class | IP65 |
| Ambient Temperature | 40 °C |
| Insulation Class | Class F |
| Encoder | AM22DQ F46 |
| Gear Unit Type | SP075S-MF1 |
| Gear Ratio | 10 |
