Siemens 1FK7042-5AF71-1KA2 Synchronous Servomotor
Neu
Auf Lager1 EinheitVersandbereit
1 290,00$
SIEMENS SYNCHRONOUS SERVOMOTOR WITH MURR PROFIBUS CABLE
Siemens 1FK7042-5AF71-1KA2 servomotor with rated torque of 2.3 Nm and speed up to 9000 min»¹, paired with MURR Elektronik PROFIBUS B-coded cable, engineered for industrial automation and motion control.1FK7042-5AF71-1KA2AutomationB-CodedCableDriveHigh-SpeedIndustrialIP65M12motorMurrProfibusRatedServoServomotorSiemensSynchronousSystemWith
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

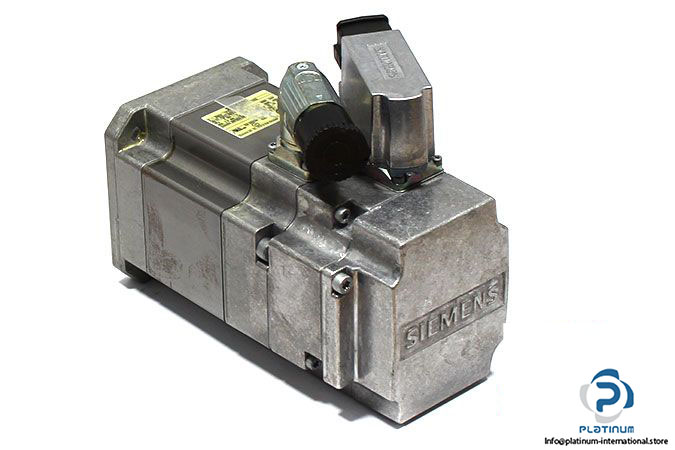

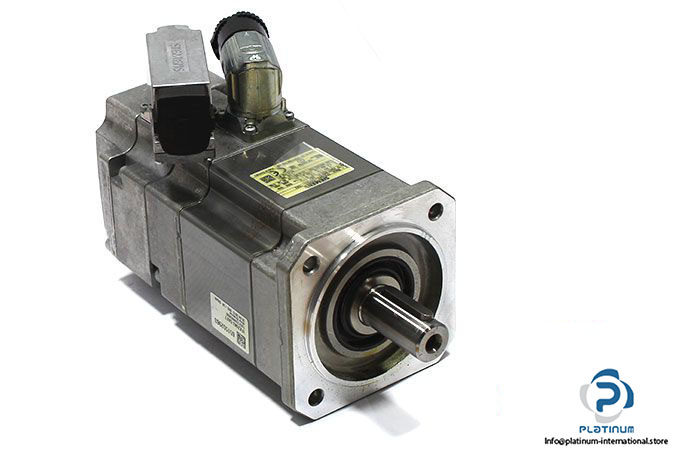

SIEMENS 1FK7042-5AF71-1KA2 SYNCHRONOUS SERVOMOTOR WITH MURR ELEKTRONIK PROFIBUS CABLE
High-performance Siemens synchronous servomotor integrated with a MURR Elektronik PROFIBUS cable, ideal for precision motion control in industrial environments. The combined solution provides powerful torque and reliable data transmission with full protection.

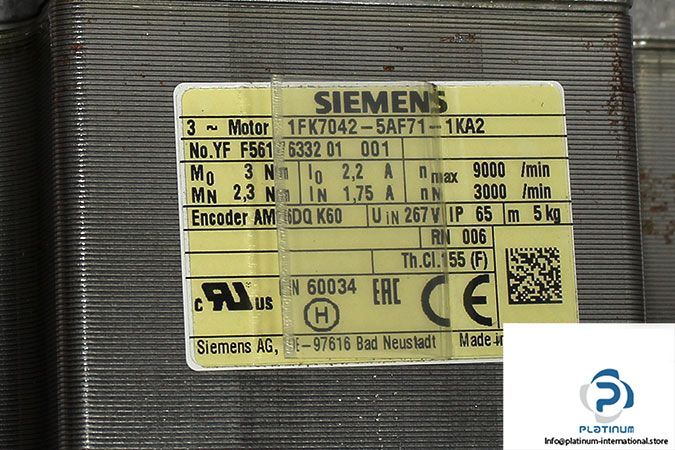

Motor Specifications
Manufacturer: Siemens
Type: Synchronous Servomotor
Model: 1FK7042-5AF71-1KA2
No yf: F561 6332 01 001
- Rated Voltage: 267 V
- Rated Current: 1.75 A
- Stall Current: 2.2 A
- Rated Speed: 3000 min»¹
- Max. Speed: 9000 min»¹
- Rated Torque: 2.3 Nm
- Stall Torque: 3 Nm
- Thermal Class: F
- Protection Class: IP65

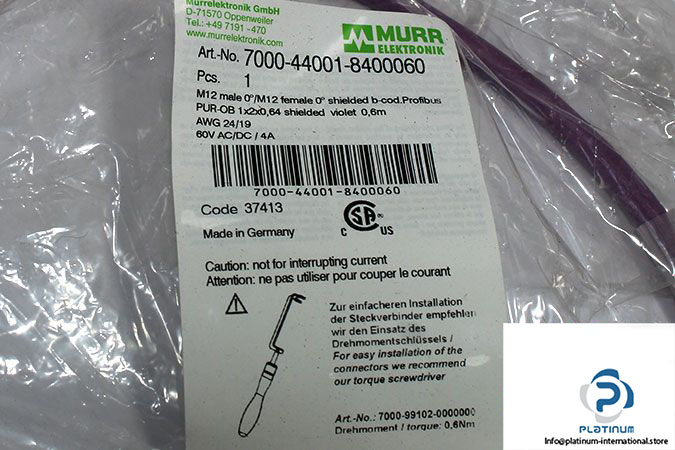

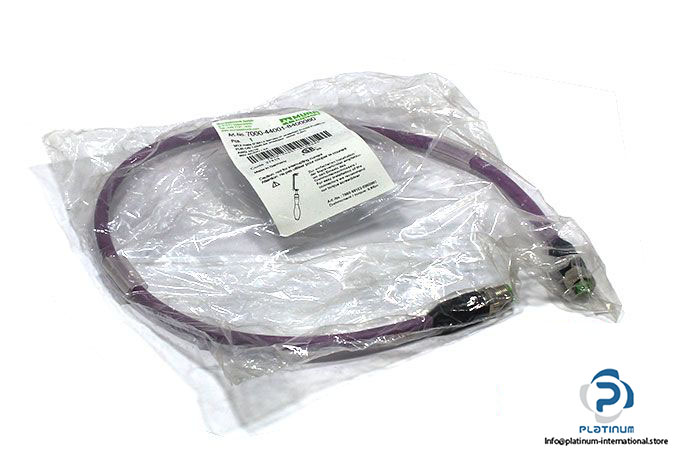

Attachment Cable Specifications
Manufacturer: MURR
Type: M12 Male 0°/M12 Female 0° Shielded B-Coded PROFIBUS Cable
Model: 7000-44001-8400060
Code: 37413
- Max. Operating Voltage: 60 V AC/DC
- UL Voltage: Max. 30 V AC/DC
- Max. Current Per Contact: 4 A
- Material Group: IEC 60664-1, Category I
- Coding: B-Coded
- Locking: Screw Thread (M12×1 mm), Torque 0.6 Nm
- Compression Gland: M12 (SW13)
- Locking Material: Zinc Die Casting, Matte Nickel Plated
- Cable Material: PUR
- Temperature Range: -25 / 85¯°C
- Protection Class: IP65
