Siemens 1FK7060-5AF71-1SA0 Synchronous Servo Motor
Neu
Auf Lager1 EinheitVersandbereit
SYNCHRONOUS SERVO MOTOR
Siemens 1FK7060-5AF71-1SA0 is a compact servo motor delivering 4.7 Nm rated torque and 7200 min-1 max speed. Ideal for dynamic motion control in industrial automation.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

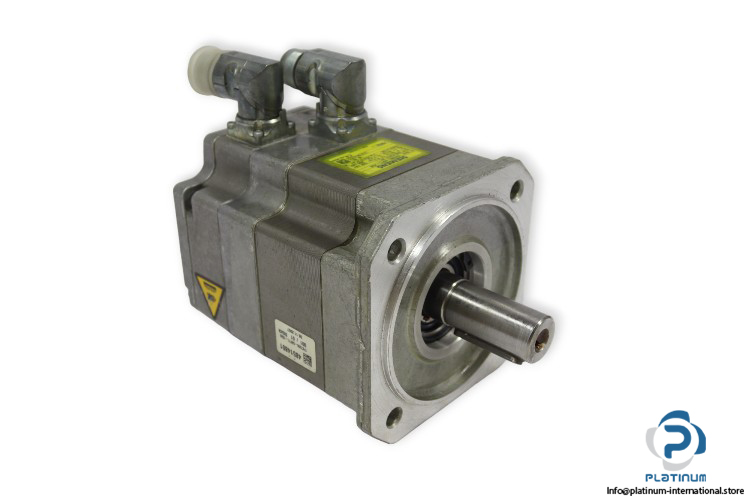

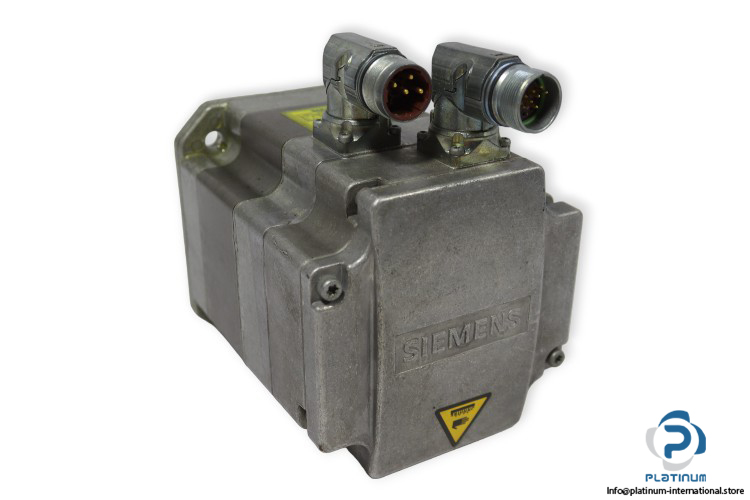

SIEMENS 1FK7060-5AF71-1SA0 SYNCHRONOUS SERVO MOTOR
The Siemens 1FK7060-5AF71-1SA0 is a compact synchronous servo motor engineered for high-performance automation. With precise control, robust construction, and reliable resolver feedback, it is ideal for dynamic and demanding industrial tasks.

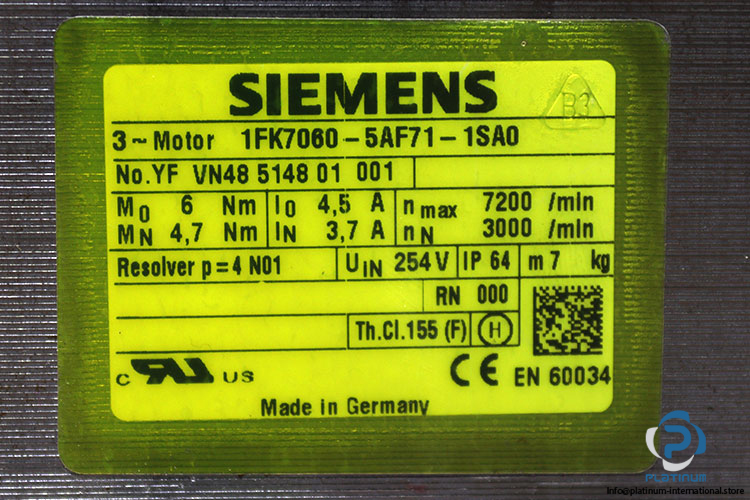

Manufacturer: SIEMENS
Type: Synchronous Servo Motor
Model: 1FK7060-5AF71-1SA0
NO.YF: VN48 5148 01 001
| Motor Type | Compact |
| Number of Poles | 8 |
| Rated Torque | 4.7 Nm |
| Rated Voltage | 254 V |
| Rated Current | 3.7 A |
| Stall Current | 4.5 A |
| Rated Speed | 3000 min-1 |
| Max. Speed | 7200 min-1 |
| Stall Torque | 6 Nm |
| Moment of Inertia | 7.950 kgcm² |
| Thermal Class | F |
| Protection Class | IP64 |
| Encoder System | Resolver p= N01 |
