Siemens 1FK7103-2AF71-1BG0 Servo Motor
Gebraucht
Auf Lager1 EinheitVersandbereit
SERVO MOTOR
Siemens 1FK7103-2AF71-1BG0 servo motor with AS24DQI P03 encoder delivers 14 Nm rated torque, 269 VDC voltage, 3000 rpm speed, and IP64 protection for high-precision automation.141FK7103-2AF71-1BG0269AS24DQIControlDriveEncoderHighIndustrialIP64MotionmotorNmPrecisionServoSiemensVDC
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

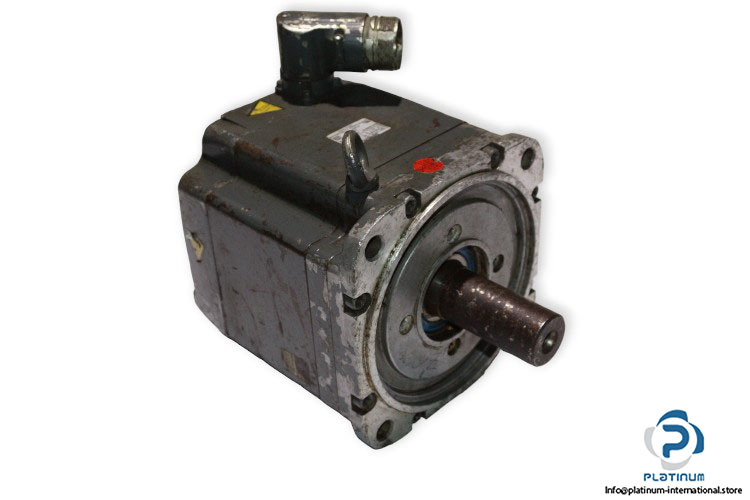

SIEMENS 1FK7103-2AF71-1BG0 SERVO MOTOR
The Siemens 1FK7103-2AF71-1BG0 servo motor is built for precise motion control in industrial automation. With robust torque output and a high IP64 protection class, it delivers stable and efficient operation in demanding environments. Equipped with AS24DQI P03 encoder for reliable positioning.
Manufacturer: Siemens
Type: Servo Motors
Model: 1FK7103-2AF71-1BG0

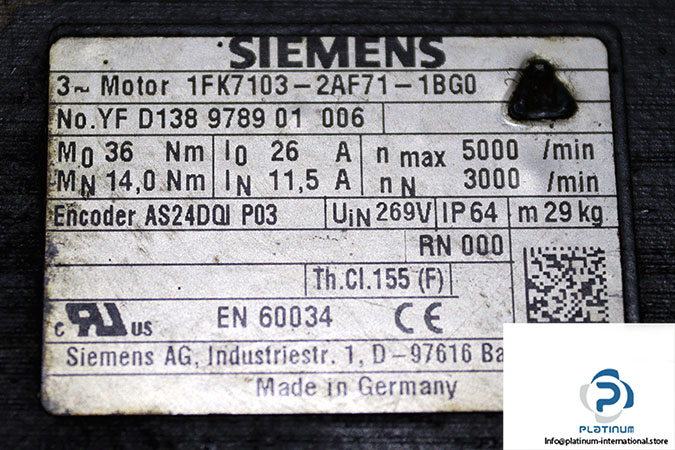

No yf: D138 9789 01 006
Encoder: AS24DQI P03
| Rated Voltage | 269 VDC |
| Rated Torque | 14 Nm |
| Stall Torque | 36 Nm |
| Rated Current | 26 A |
| Stall Current | 11.5 A |
| Rated Speed | 3000 rpm |
| Stall Speed | 5000 rpm |
| Protection Class | IP64 |
| Insulation Class | F |
