Motors & Drives Servo Motors

Siemens 1FT5070-0AF01 Permanent Magnet Motor

Name: SIEMENS 1FT5070-0AF01 PERMANENT MAGNET MOTOR
SKU: 980822
Price: 900.00 USD
Availability: InStock

siemens-1ft5070-0af01-permanent-magnet-motor-1

siemens-1ft5070-0af01-permanent-magnet-motor-2

Gebraucht

Auf Lager1 EinheitVersandbereit

900,00$

PERMANENT MAGNET MOTOR

Siemens 1FT5070-0AF01 is a compact permanent magnet motor rated at 0.94 kW and 3000 RPM, designed for high-performance industrial automation. Built to IP64 standards with Class F insulation and integrated tacho generator.

Hersteller

SIEMENS

SKU

980822

Kategorie

Servo Motors

Zustand

Gebraucht

0.94 118V 1FT5070 1FT5070-0AF01 1FU1050-3000 Automation B5 Class Drive F Generator High Industrial IP64 kW Magnet motor Mounting Permanent rpm Servo Siemens Tacho Torque

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

SIEMENS 1FT5070-0AF01 PERMANENT MAGNET MOTOR

The Siemens 1FT5070-0AF01 is a high-performance permanent magnet motor engineered for precise motion control and industrial automation. Built with durability, efficiency, and accuracy in mind, it offers dependable power delivery for demanding servo drive applications.

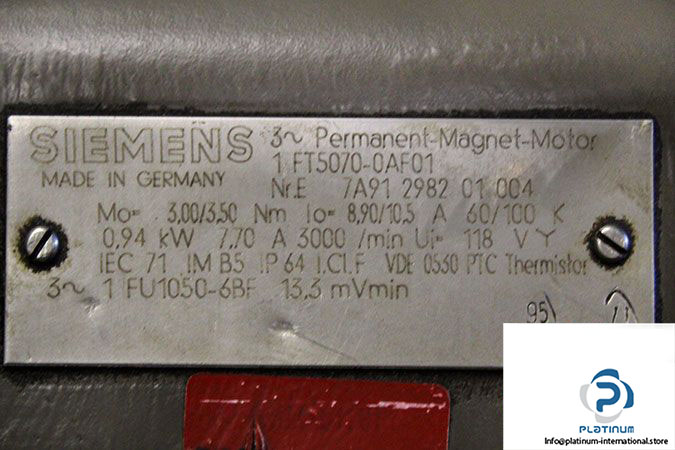

Manufacturer: Siemens

Type: Permanent Magnet Motor

Model: 1FT5070-0AF01

Part No.: 7A91 2982 01 004

Rated Voltage (Star)	118 V
Rated Current	7.7 A
Stall Current	8.9 / 10.5 A
Rated Speed	3000 min»¹
Rated Power	0.94 kW
Stall Torque	3 / 3.5 Nm
Constant Voltage	13.3 mV/min
Thermal Class	F
Mounting Position	B5
Protection Class	IP64
Tacho Generator	1FU1050-6BF
