Siemens 1FT50721AC714EH0 AC Servomotor

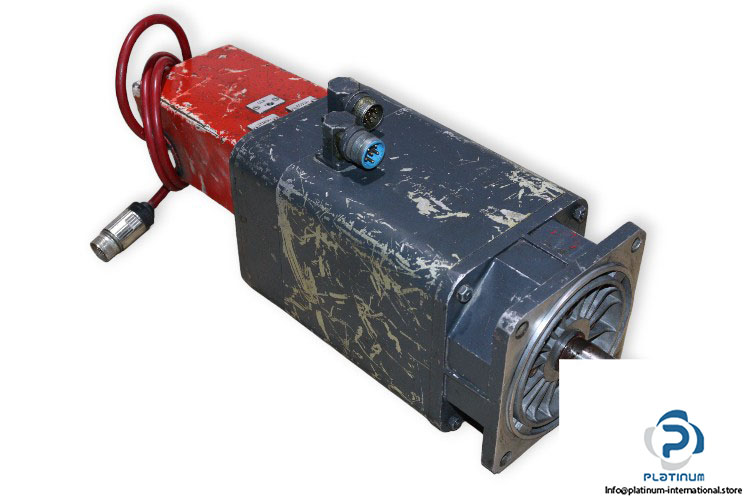

SIEMENS 1FT 5072-1AC71-4EH0 AC SERVOMOTOR WITH CE65M ABSOLUTE ROTARY ENCODER

The Siemens 1FT 5072-1AC71-4EH0 is a high-performance AC servomotor engineered for continuous-duty applications requiring reliable torque and speed. Equipped with a TR Electronic CE65M Absolute Rotary Encoder, it ensures high-resolution position feedback for precision control.

Manufacturer: Siemens
Type: AC Servomotor
Model: 1FT 5072-1AC71-4EH0
Serial No. (nr E): K669 6354 04 002

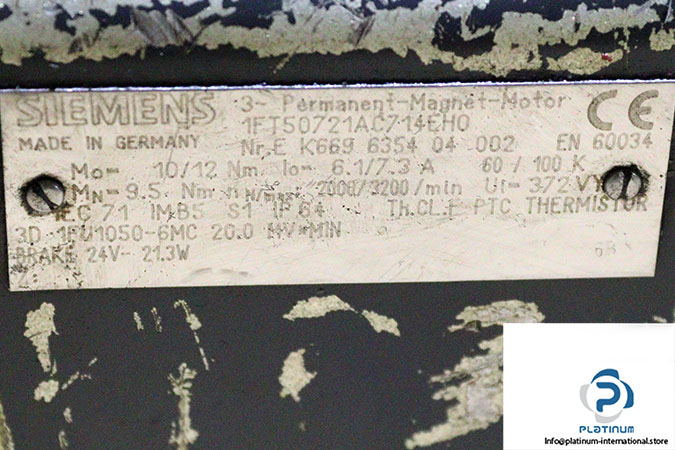

Technical Information (Motor)

• Rated Voltage: 372 V
• Stall Torque: 10/12 Nm
• Stall Current: 6.1/7.3 A
• Rated Torque: 9.5 Nm
• Rated Speed: 2000/3200 rpm
• Brake Voltage: 24 VDC
• Brake Power: 21.3 W
• Protection Class: IP64
• Duty: S1
• Mounting Position: IM B5
• Insulation Class: F

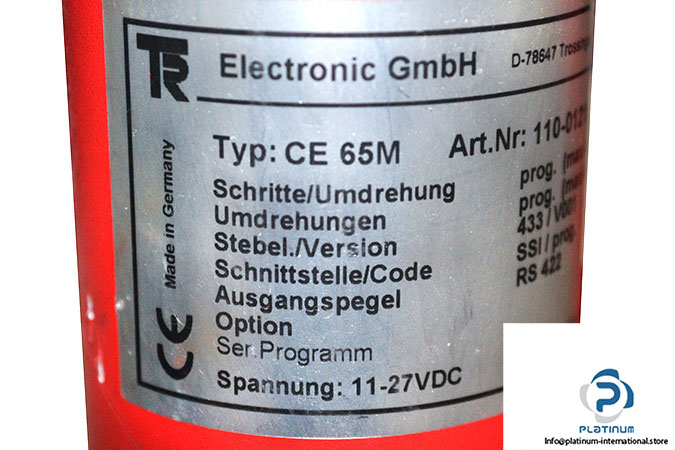

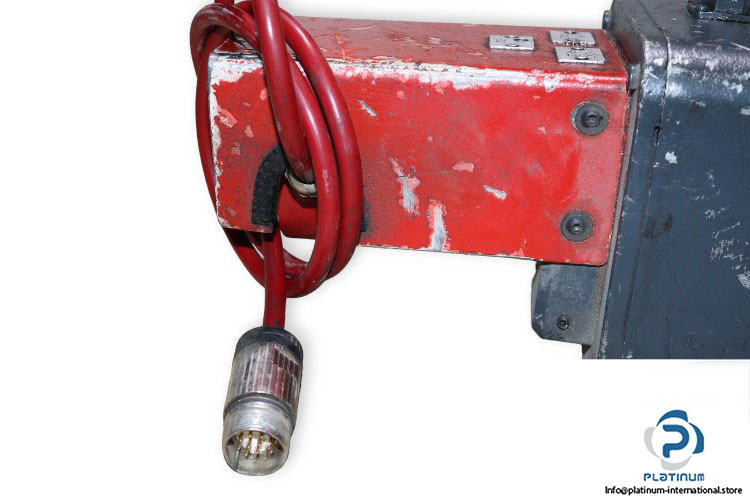

Attached Encoder

Manufacturer: TR Electronic GmbH
Type: Absolute Rotary Encoder
Model: CE65M
Art. Nr.: 110-01219
REF NO: 0216 / 30192

Technical Information (Encoder)

• Rated Voltage: 11“27 VDC
• Version: 433/V001
• Communication Interface: SSI/prog
• Signal Level: RS 485
• Resolution: 4096 steps/rev
• Measuring Range: 4096 revolutions
