Siemens 1FT5076-0AF01-2-Z Servo Motor

Name: SIEMENS 1FT5076-0AF01-2-Z SERVO MOTOR
SKU: 341095
Price: 900.00 USD
Availability: InStock

servo-motor-siemens-1ft5076-0af01-2-z3_675x450

servo-motor-siemens-1ft5076-0af01-2-z4_675x450

servo-motor-siemens-1ft5076-0af01-2-z5_675x450

Neu

Auf Lager1 EinheitVersandbereit

900,00$

AC SERVO MOTOR

High-precision Siemens AC servo motor with 18 Nm rated torque, 3000 RPM speed, and IP64 protection. Designed for continuous duty in industrial automation and motion control applications.

Hersteller

SIEMENS

SKU

341095

Kategorie

Servo Motors

Zustand

Neu

AC Automation Continuous Control Drive Duty High Industrial IP64 Motion motor Precision Servo Siemens Torque Unit

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

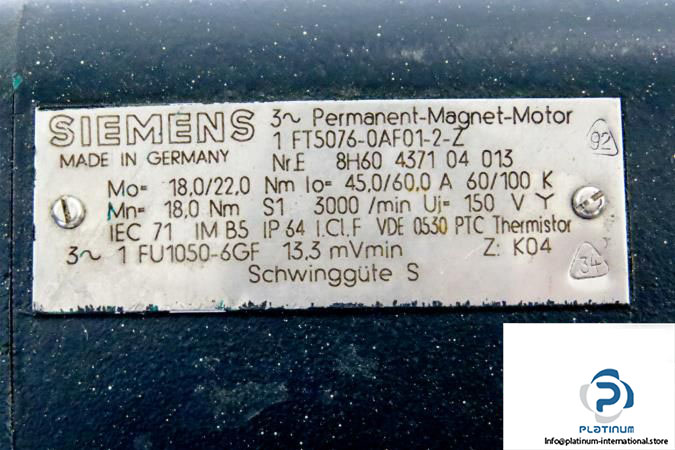

SIEMENS 1FT5076-0AF01-2-Z AC SERVO MOTOR

The Siemens 1FT5076-0AF01-2-Z is a high-performance AC servo motor engineered for precision motion control in demanding industrial applications. Built for continuous duty operation, it offers exceptional torque consistency, speed stability, and robust protection against harsh conditions.

Manufacturer: Siemens

Type: AC Servo Motor

Model: 1FT5076-0AF01-2-Z

Part No.: 8H60 4371 04 013

Rated Voltage (Star)	150 V
Stall Current	45.0 / 60.0 A
Rated Torque	18 Nm
Stall Torque	18 / 22 Nm
Rated Speed	3000 RPM
Duty	S1
Insulation Class	F
Degree of Protection	IP64
Tacho Generator	1FU1050-6GF
Voltage Constant	13.3 mV/min
