Siemens 1FT6041-4AF71-4EB1 Servomotor
Neu
Auf Lager4 EinheitenVersandbereit
1 555,55$
SERVOMOTOR
Siemens 1FT6041-4AF71-4EB1 servomotor with 2.0 Nm rated torque, 3000 rpm rated speed, 270 V input, IP65 protection, IM B5 mounting, and integrated 24 V brake.003011FT6041-4AF71-4EB12.030007191AbsoluteAutomationB5BrakeEBDEncoderIMIP65KTY84M712motorNmrpmSensorServomotorSiemensYF
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Siemens 1FT6041-4AF71-4EB1 Servomotor
The Siemens 1FT6041-4AF71-4EB1 is a high-performance servomotor designed for precise motion control in industrial automation. Equipped with an absolute encoder, integrated brake, and robust IP65 protection, it delivers reliable torque, high efficiency, and continuous-duty operation.
Manufacturer: Siemens
Type: Servomotor
Model: 1FT6041-4AF71-4EB1

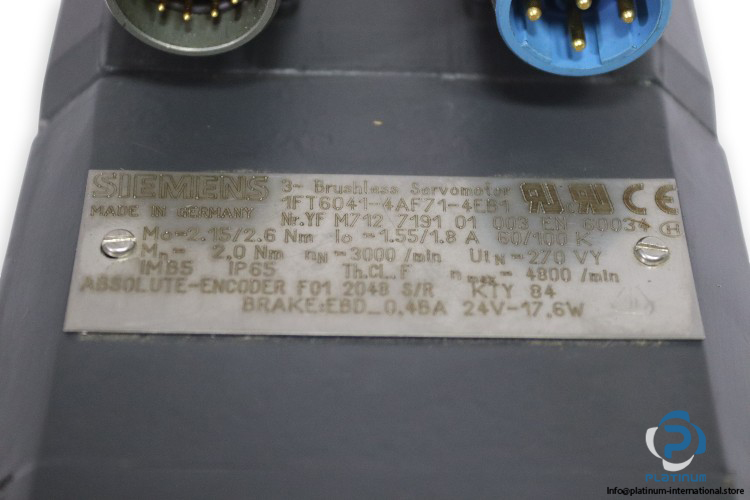

Part No.: YF M712 7191 01 003
Absolute-Encoder: F01 2048 S/R
Sensor: KTY 84
Brake: EBD
Brake
| Torque (Mo) | 2.15 / 2.6 Nm |
| Rated Torque (Mn) | 2.0 Nm |
| Current (Io) | 1.55 / 1.8 A |
| Rated Speed (n N) | 3000 rpm |
| Max Speed (n max) | 4800 rpm |
| Rated Voltage (Uin) | 270 V |
| Duty | Continuous (S1) |
| Insulation Class | F |
| Mounting | IM B5 |
| Protection Class | IP65 |
| Power | 17.6 W |
| Current | 0.48 A |
| Voltage | 24 V |
