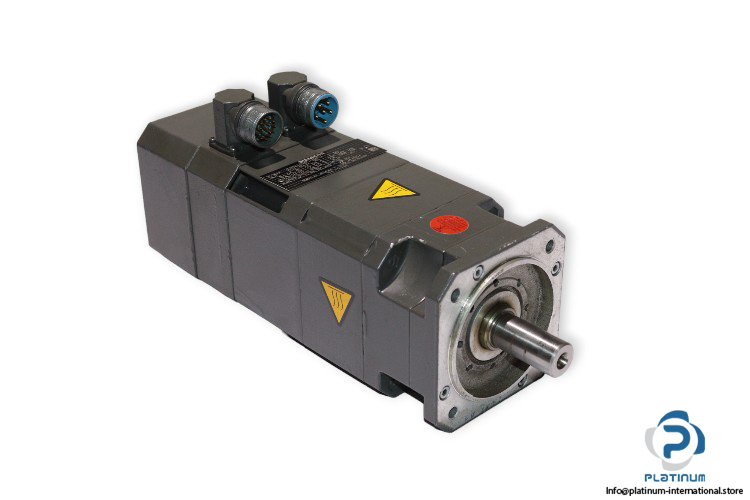

Siemens 1FT6041-4AK71-4AL0-Z AC Servomotor

SIEMENS 1FT6041-4AK71-4AL0-Z AC SERVO MOTOR

The Siemens 1FT6041-4AK71-4AL0-Z AC Servo Motor is engineered for high-performance industrial automation. With robust torque output and high-speed capability, it ensures precise motion control and reliable operation under demanding environments. Integrated with an IC2048S/R B25 encoder, it offers superior feedback accuracy.

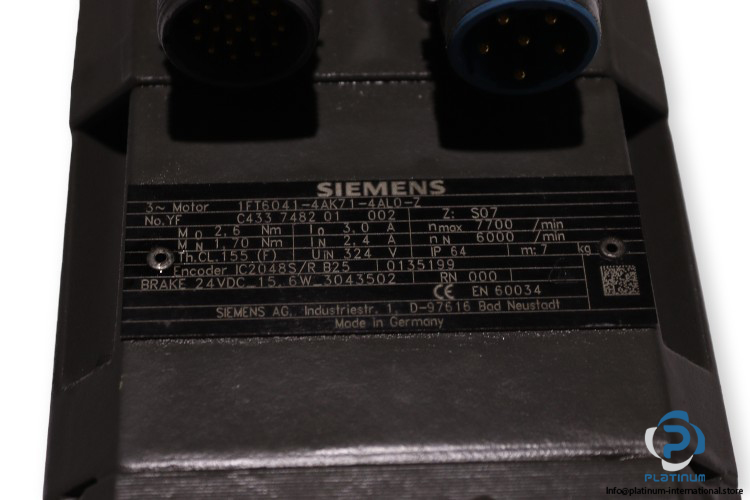

Manufacturer: Siemens
Type: AC Servo Motor
Model: 1FT6041-4AK71-4AL0-Z
No yf: C433 7482 01 002
Ref No: S07

Encoder Details

• Encoder Model: IC2048S/R B25
• Encoder Part No.: 0135199

Technical Specifications

• Rated Current: 2.4 A
• Stall Current: 3.0 A
• Rated Torque: 1.7 Nm
• Stall Torque: 2.6 Nm
• Rated Speed: 6000 min^-1
• Max. Speed: 7700 min^-1
• Rated Voltage: 324 V
• Protection Class: IP64
• Brake Power: 15.6 W
• Brake Voltage: 24 V DC
• Thermal Class: F
