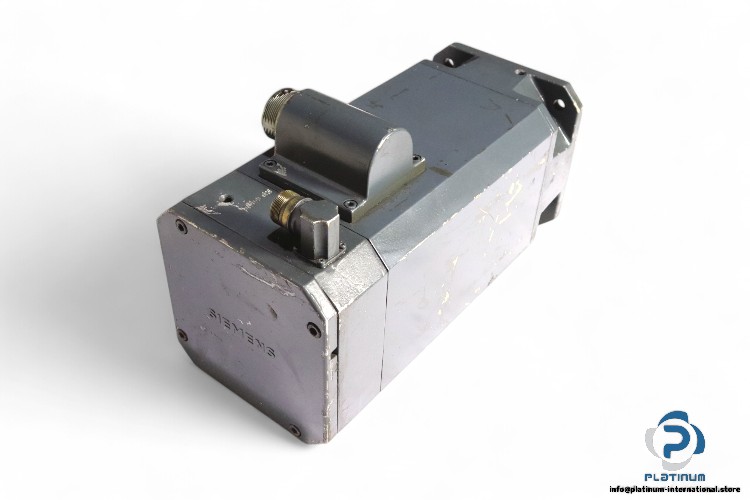

SIEMENS 1FT60861AF711AG1 PERMANENT MAGNET MOTOR
The SIEMENS 1FT60861AF711AG1 is a high-performance permanent magnet motor engineered for precision-driven industrial applications. Offering a robust torque range and multiple configuration options, this motor ensures efficient operation under demanding conditions. Built with IP65 protection and thermal class F, it is suitable for harsh environments and includes an integrated B01 2048 S/R Z optical encoder for enhanced motion control accuracy.
Manufacturer: SIEMENS
Type: Permanent Magnet Motor
Model: 1FT60861AF711AG1
Nr e: K567 6694 01 007
| Rated Voltage | 294 V star (147 V star alternate) |
| Stall Current | 14.4 A (17.3 A alternate) |
| Rated Speed | 3000 RPM (1500 RPM alternate) |
| Rated Torque | 18.5 Nm (23.5 Nm alternate) |
| Stall Torque | 22.4 Nm (27 Nm alternate) |
| Max. Speed | 3400 min»¹ |
| Mounting Position | IMB5 |
| Thermal Class | F |
| Protection Class | IP65 |
| Attached with | B01 2048 S/R Z Optical Encoder |
