Siemens 1FT6105-1AC71-1EG1 Brushless Servo Motor
Gebraucht
Auf Lager3 EinheitenVersandbereit
1 550,00$
BRUSHLESS SERVO MOTOR
Siemens 1FT6105-1AC71-1EG1 is a brushless servo motor with 46/38 Nm rated torque, IP64 protection, and F01 encoder, delivering up to 2450 rpm for precision motion control applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

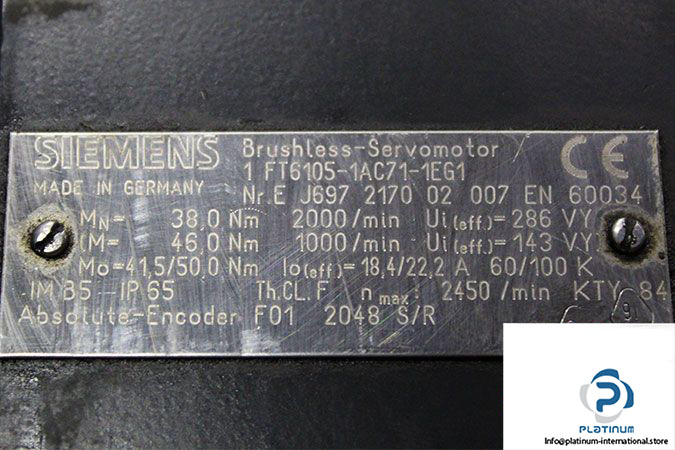

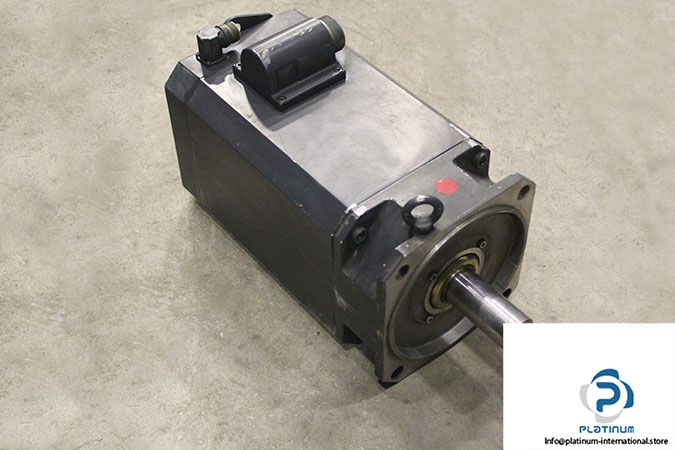

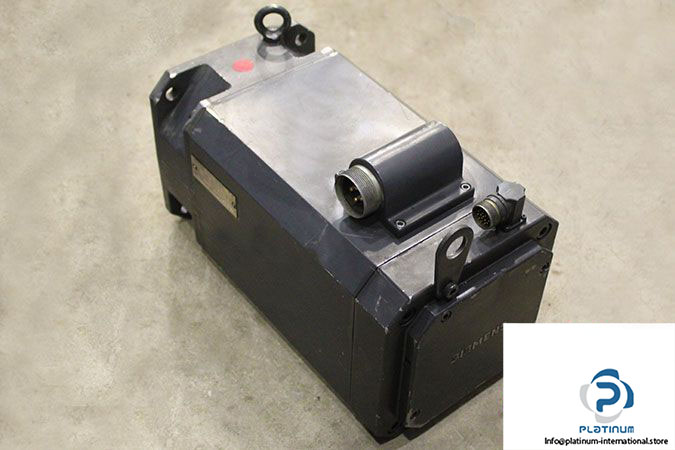

SIEMENS 1FT6105-1AC71-1EG1 BRUSHLESS SERVO MOTOR
This Siemens brushless servo motor is designed for precision, high torque, and optimal efficiency in industrial automation systems. It features a robust IP64 protection rating, high static torque capacity, and flexible mounting compatibility for demanding motion control applications.
Manufacturer: Siemens
Type: Brushless Servo Motors
Model: 1FT6105-1AC71-1EG1
Part No.: J697 2170 02 007
| Series | 6 |
| Frame Size | 10 |
| Length | 5 |
| Rated Voltage [V] | 143/286 |
| Rated Torque [Nm] | 46/38 |
| Static Torque [Nm] | 50/41.5 |
| Rated Speed [rpm] | 1000/2000 |
| Max. Speed [rpm] | 2450 |
| Stall Current [A] | 22.2/18.4 |
| Encoder | F01 2048 S/R |
| Mounting Position [IM] | B5 |
| Protection Class [IP] | 64 |
| Thermal Class | F |
