Siemens 1PH7163-2HF00-0BA3 Asynchronous Induction Motor
ASYNCHRONER INDUKTIONSMOTOR SIEMENS 1PH7163-2HF00-0BA3 der Familie SINAMICS S 1PH7 liefert ein Drehmoment von 191 Nm und eine Leistung von bis zu 37 kW. Verfügt über HTL-Encoder, SH160 Wellenhöhe, IP55/IP54 Schutz und externen Lüfter – ideal für präzise industrielle Antriebssysteme.

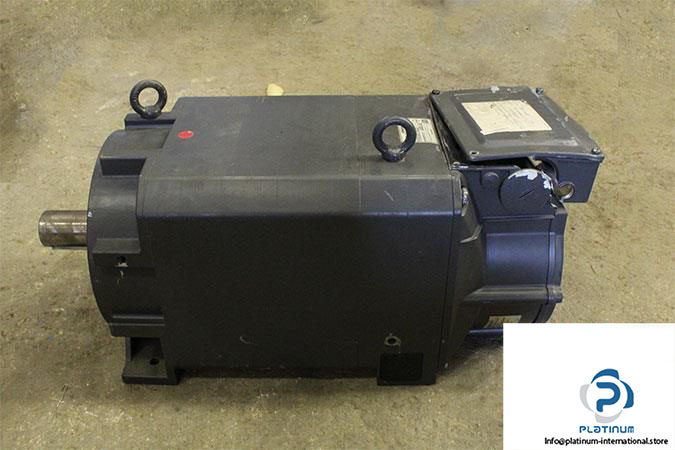

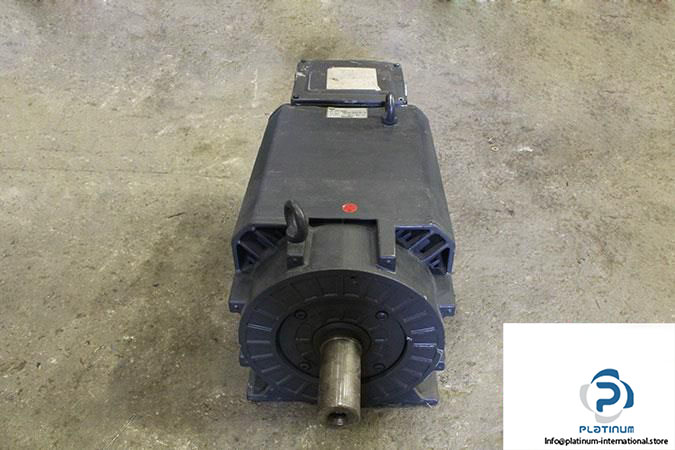

SIEMENS 1PH7163-2HF00-0BA3 ASYNCHRONOUS INDUCTION MOTOR
Engineered for high-performance industrial automation systems, the SIEMENS SINAMICS S 1PH7 asynchronous induction motor offers superior efficiency, dynamic speed control, and durability in heavy-duty environments. With a robust external fan, high torque output, and incremental encoder feedback, it is an optimal solution for advanced drive applications.

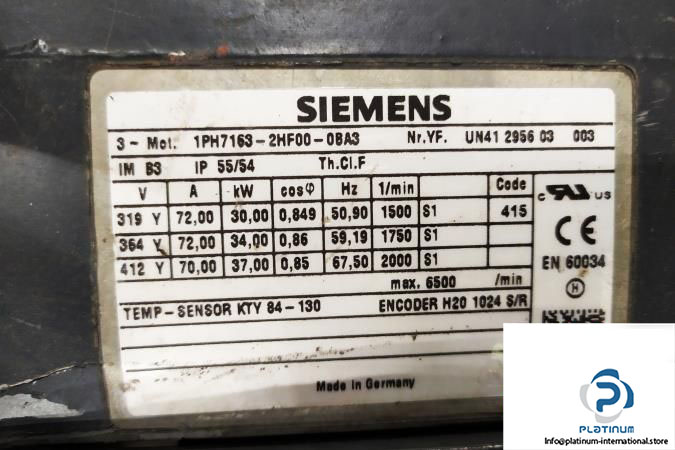

Manufacturer: SIEMENS
Type: Asynchronous Induction Motor
Family: SINAMICS S 1PH7
MRN: 1PH7163-2HF00-0BA3
Nr yf: UN41 2956 03 003
Code: 415
| Encoder System | Incremental encoder HTL, 1024 Pulses/revolution (H20 1024 S/R) |

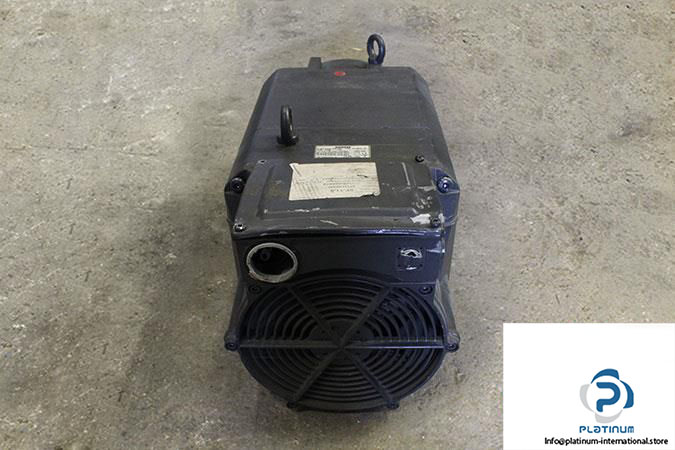

| Fan | External fan unit, heavy-gauge threaded cable entry in terminal box |
| Voltage | 319/364/412 V |
| Frequency | 50 / 59.19 / 67.50 Hz |
| Power | 30 / 34 / 37 kW |
| Torque | 191 Nm |
| Speed | Rated 1500 rpm, Max 6500 rpm |
| Current | 72 / 72 / 70 A |
| Shaft Height | SH160 |
| Moment of Inertia | 0.185 kgm² |
| Thermal Class | F |
| Protection | IP55 / IP54 |
