Protection & Control Fuses & Fuse Holders

Siemens 3NA3 824-6 Fuse Link

Name: SIEMENS 3NA3 824-6 FUSE LINK
SKU: 1075452
Availability: LimitedAvailability

Neu

Auf Lager1 EinheitVersandbereit

Sicherungseinsatz Siemens 3NA3 824-6 SENTRON ist eine NH00 LV HRC Sicherung mit 80A Nennstrom, 690V AC/250V DC Kapazität und hoher Abschaltleistung.

Hersteller

SIEMENS

SKU

1075452

Kategorie

Fuses & Fuse Holders

Zustand

Neu

250V 3NA3 690V 80A 824-6 AC Circuit dc Electrical Fuse HRC Industrial IP20 Link LV NH00 Protection Sentron Siemens

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

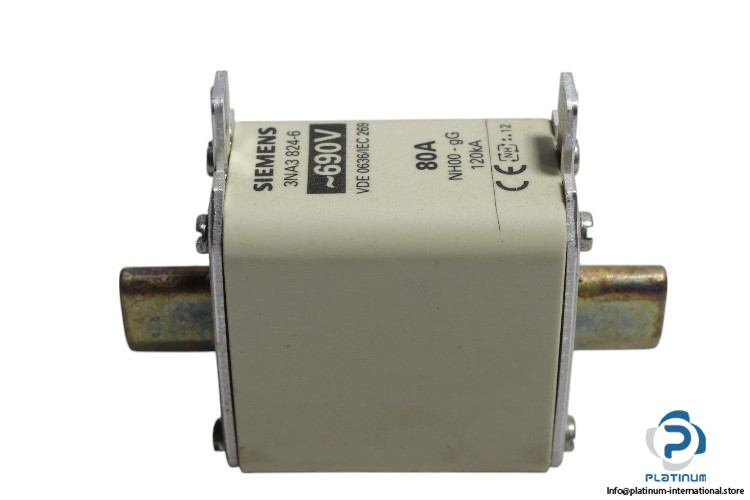

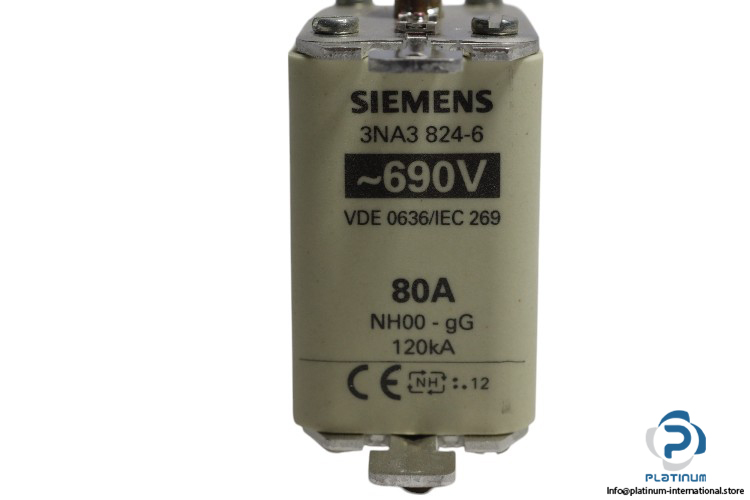

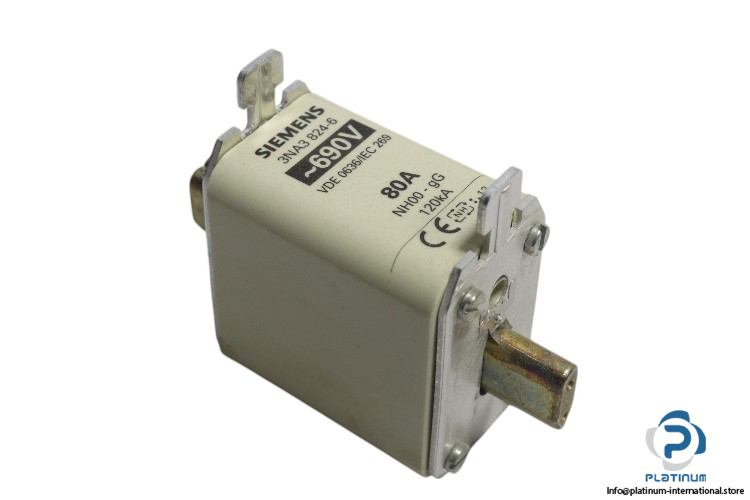

Siemens 3NA3 824-6 Fuse Link

The Siemens 3NA3 824-6 Fuse Link is a high-performance LV HRC fuse designed for reliable circuit protection in electrical systems. Part of the SENTRON series, this NH00 size fuse offers excellent breaking capacity and secure mounting options, ensuring safe operation in demanding environments.

Manufacturer: Siemens

Type: Fuse Link

Part No.: 3NA3 824-6

Brand Name: SENTRON

Size: NH00

Designation: LV HRC Fuse Link

Rated Current	80 A
Supply Voltage	690 V AC / 250 V DC
Breaking Capacity @ AC	120 kA
Breaking Capacity @ DC	25 kA
Power Loss	6.94 W
Operating Class	gG
Mounting Type	Non-Insulated Grip Lugs
Mounting Position	Any, Preferably Vertical
Identification Indicator	Front Indicators
Protection Proof	IP20
Width	30 mm
Ambient Temperature	-5 to 40°C
