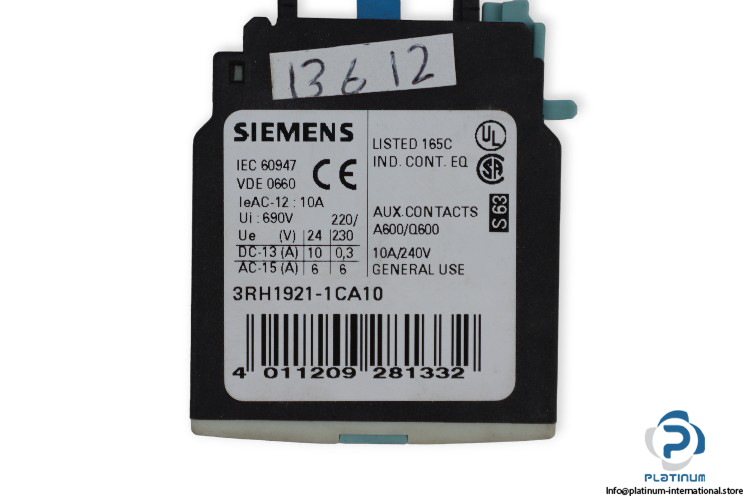

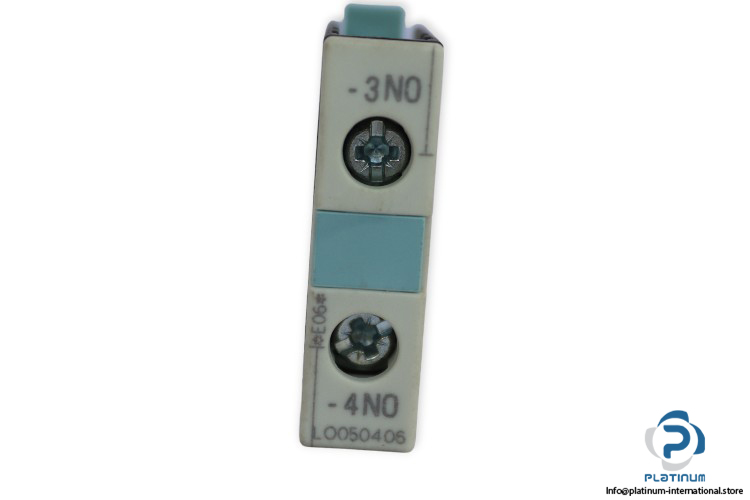

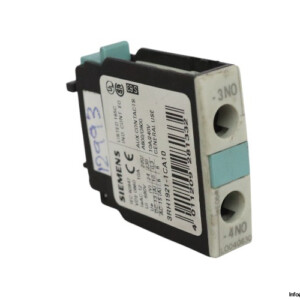

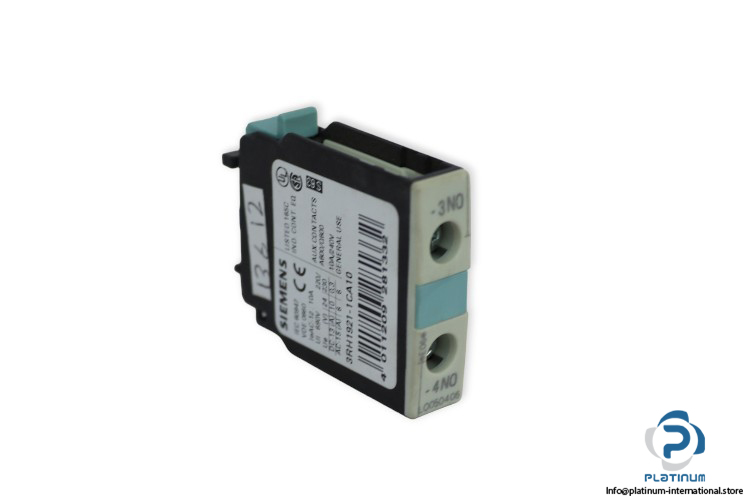

Siemens 3RH1921-1CA10 Auxiliary Switch Block

Manufacturer: Siemens
Type: Auxiliary Switch Block
MNR: 3RH19211CA10
Order No.: 3ZX1012-0RT02-1AA1

Insulation voltage Ui: 690 V
Rated current Ie AC-12: 10 A
Surge voltage resistance rated value: 6 Kv
Contact: 1 Normally open contact
Current:
DC-13: 10A@24 V DC,0.3A@220/230 V DC
AC-15: 6A@24 V AC,6A@220/230 V AC
No. of poles: 1
Protection class IP on the front: IP20
Standard: IEC 60947, VDE 0660
Ambient temperature during operation: -25 … +60 °C
Type of Electrical Connection for Auxiliary and Control Circuit: screw-type terminals
General use: 240 V/10 A
Dimensions: 38 x 10 x 51 mm
