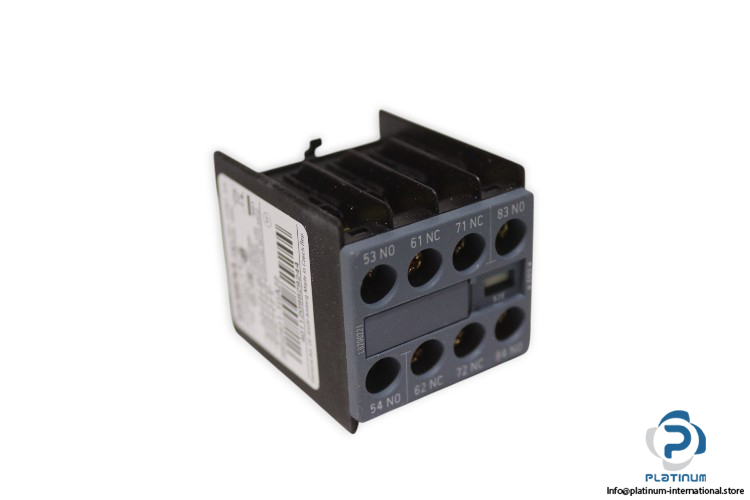

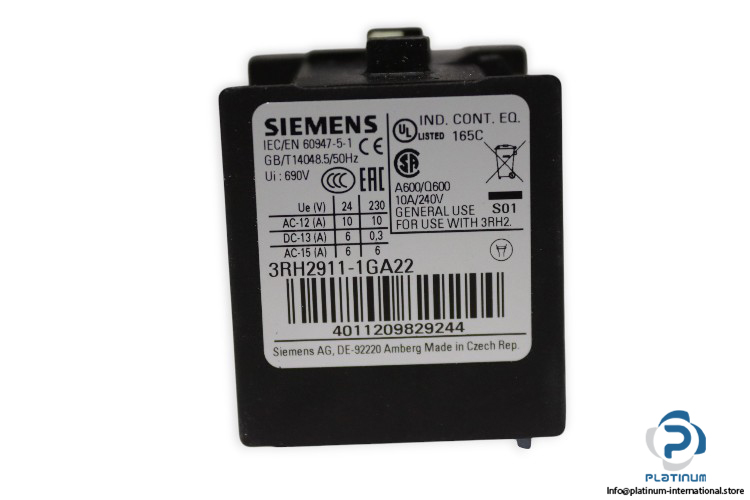

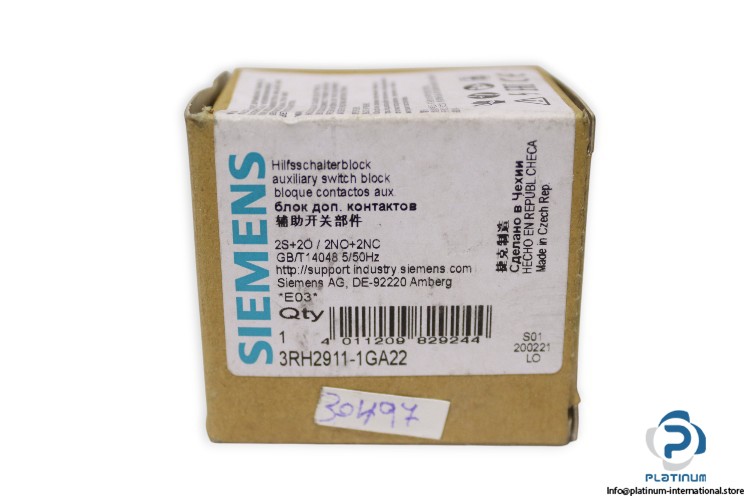

Siemens 3RH2911-1GA22 Auxiliary Switch Block

Name: SIEMENS 3RH2911-1GA22 AUXILIARY SWITCH BLOCK
SKU: 1074962
Availability: LimitedAvailability

siemens-3rh2911-1ga22-auxiliary-switch-block(new)

siemens-3rh2911-1ga22-auxiliary-switch-block(new)-1

siemens-3rh2911-1ga22-auxiliary-switch-block(new)-2

Neu

Auf Lager5 EinheitenVersandbereit

Auxiliary Switch Block

Siemens SIRIUS 3RH29111GA22 auxiliary switch block with 2 NO + 2 NC contacts, 690 V insulation voltage, 6 kV surge resistance, and screw-type terminals, designed for 3RH2 contactors.

Hersteller

SIEMENS

SKU

1074962

Kategorie

Contactors & Accessories

Zustand

Neu

2NC 2NO 3RH2 3RH29111GA22 accessory Auxiliary Block Component Contactor Electrical Industrial Siemens Sirius Switch

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Siemens 3RH29111GA22 Auxiliary Switch Block

The Siemens SIRIUS 3RH29111GA22 auxiliary switch block is designed for reliable integration with 3RH2 contactors. Built for durability and precision, it ensures safe switching performance in industrial environments.

Manufacturer: Siemens

Type: Auxiliary Switch Block

MRN: 3RH29111GA22

SN: 4011209829244

REF NO.: GB/T14048 5/50HZ

Brand Name: SIRIUS

Mounting	For use with 3RH2 contactors
Insulation Voltage	690 V (Pollution Degree 3)
Surge Voltage Resistance	6 kV
Auxiliary Contacts	2 NO + 2 NC
Operational Current at AC-12	10 A at 24 V / 10 A at 230 V
Electrical Connection	Screw-Type Terminals
Protection Class	IP20
Temperature Range	-25 / 60 °C
Dimensions	37.5 x 36 x 43.7 mm
