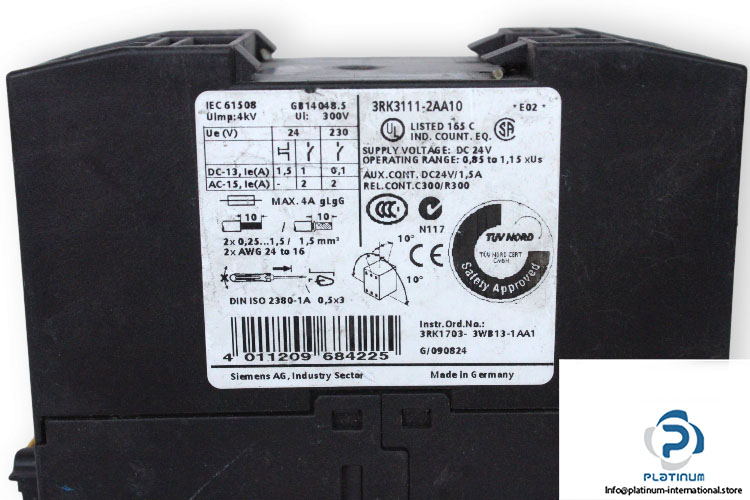

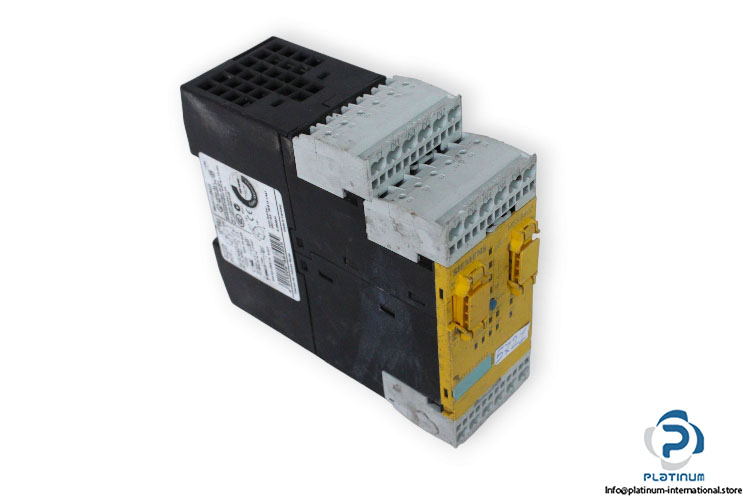

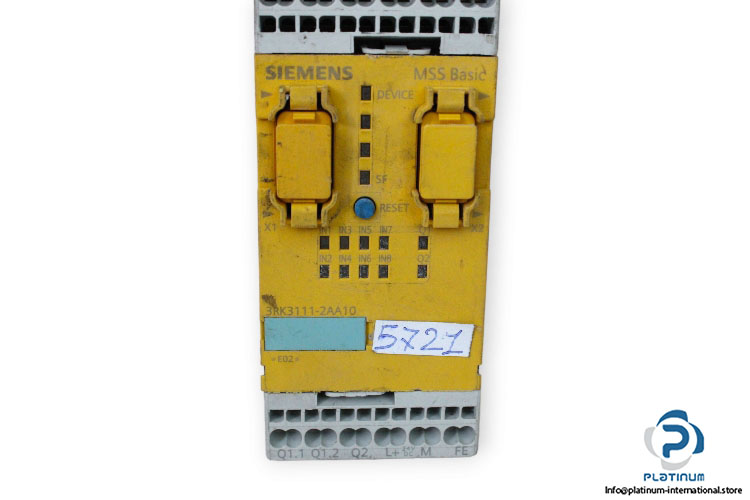

Siemens 3RK3111-2AA10 Central Unit

Manufacturer: Siemens
Type: Central Unit
Model: 3RK3111-2AA10

Supply Voltage: 24 V DC
Insulation Voltage Rated Value: 300 V
Contact Configuration: 2 Normally Open
Contact Voltage: 24 … 230 V AC/DC
Contact Current: 1.5 … 0.1 A (DC)/ 2 A ( AC)
Auxiliary Contact Rating: 24 V DC, 1.5 A
Degree Of Pollution: 3
Fastening Method: Snap-Mounted To DIN Rail Or Screw-Mounted With Additional Push-In Lug
Type Of Electrical Connection: Spring-Loaded Terminals
Rated Impulse With Stand Voltage: 4 kV
Operating Temperature: -20 … 60 °C
Degree of protection: IP20
Dimensions: 113 X 45 X 124 mm
