Siemens 3RN1011-2CB00 Thermistor Motor Protection Relay
Gebraucht
Auf Lager1 EinheitVersandbereit
THERMISTOR MOTORSCHUTZRELAIS Siemens 3RN10112CB00 Relais bietet präzise Motor-Temperaturüberwachung mit einem Ansprechbereich von 60–180°C und einem Eingang von 24–240 V AC/DC für den Industrieschutz von Motoren.
ComponentDeviceElectricalIndustrialmonitoringmotorOverheatProtectionRelaySafetySiemensTemperatureThermistor
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

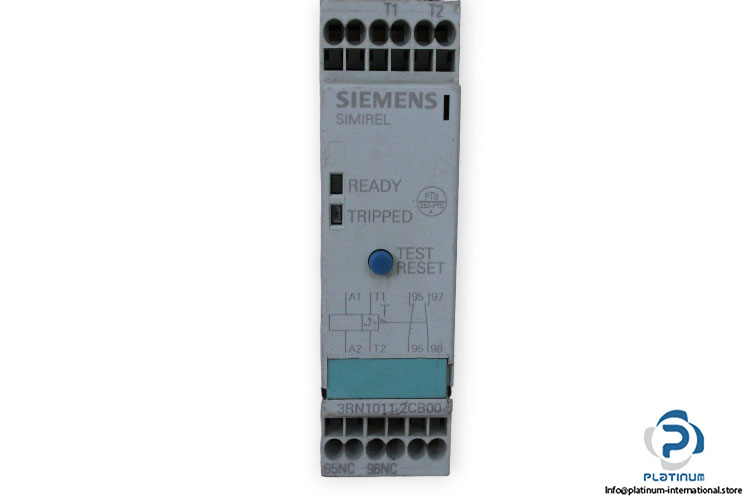

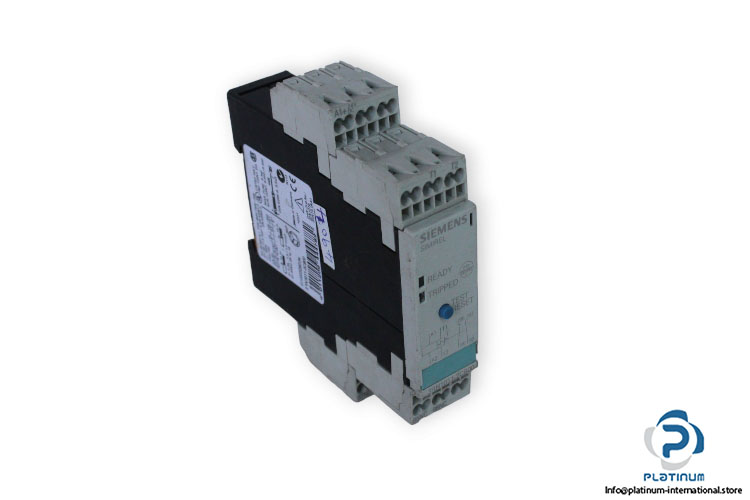

SIEMENS 3RN10112CB00 THERMISTOR MOTOR PROTECTION RELAY
The Siemens 3RN10112CB00 is a high-quality thermistor motor protection relay designed to safeguard motors against overheating. With a wide operating voltage range and precise temperature response, it ensures reliable performance in demanding industrial applications.
Manufacturer: Siemens
Type: Thermistor Motor Protection Relay
MNR: 3RN10112CB00
Rated Operational Current (Ie):
DC-13:

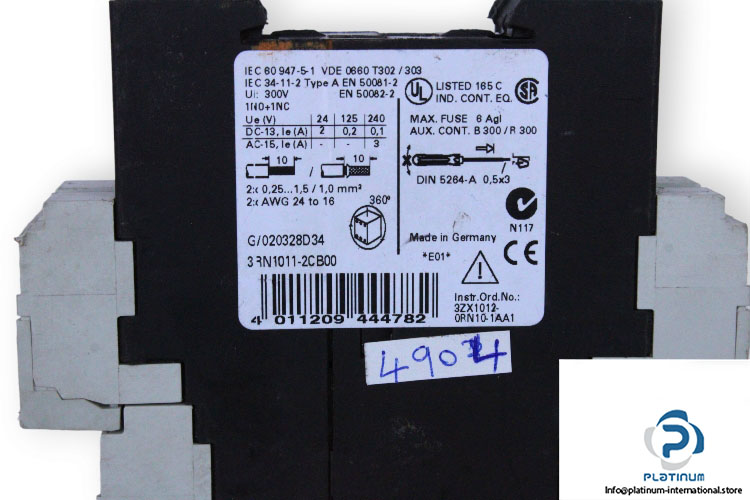

| Rated Insulation Voltage (Ui) | 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Voltage (Ue) | 24 / 240 V AC/DC |
| AC-15 / 24 / 250 V | 3 A |
| 24 V | 1 A |
| 125 V | 0.2 A |
| 240 V | 0.1 A |
| Conventional Thermal Current (Ith) | 5 A |
| Output Contact | 1 NO, 1 NC |
| Response Temperature | 60 / 180°C |
