Siemens 3RT1015-1AF02 Contactor
Gebraucht
Auf Lager1 EinheitVersandbereit
SIEMENS CONTACTOR
Compact Siemens SIRIUS 3RT10 15-1AF02 contactor with 3 poles, 2NC auxiliary contacts, 11 kW power at 400 VAC, and 110 V coil. Built for reliable switching in industrial control systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

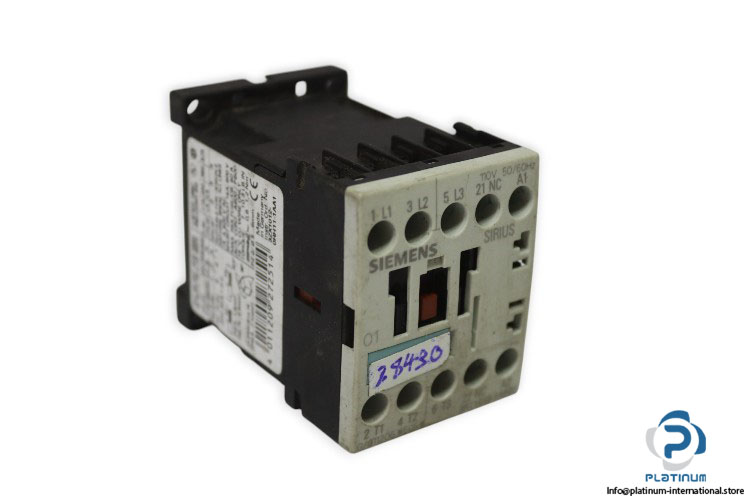

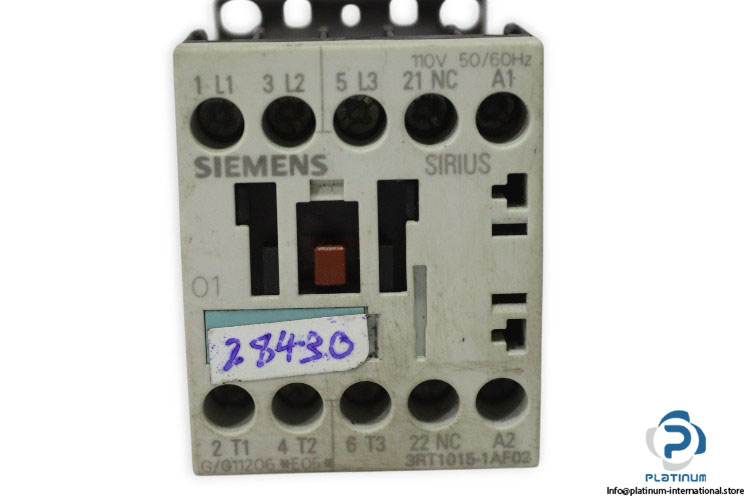

SIEMENS SIRIUS 3RT10 15-1AF02 CONTACTOR
The Siemens SIRIUS 3RT10 15-1AF02 is a compact and reliable contactor designed for high-performance switching in industrial control applications. Built to international standards, it ensures operational safety, efficiency, and long service life in demanding environments.
Manufacturer: Siemens
Type: Contactor
MNR: 3RT10 15-1AF02
INST ORD NO: 3ZX1012-0RH11-1AA1
Family: SIRIUS
Size of Contactor: S00
| Degree of Pollution | 3 |
| Ambient Temperature (Operation) | -25 / +60 °C |
| Main Current Circuit Poles | 3 |
| Auxiliary Contacts | 2 Normally Closed (2NC) |
| NC Contacts (Instantaneous) | 1 |
| NO Contacts (Instantaneous) | 0 |
| Control Supply Voltage at AC 50 Hz | 110 V |
| Control Supply Voltage at AC 60 Hz | 110 V |

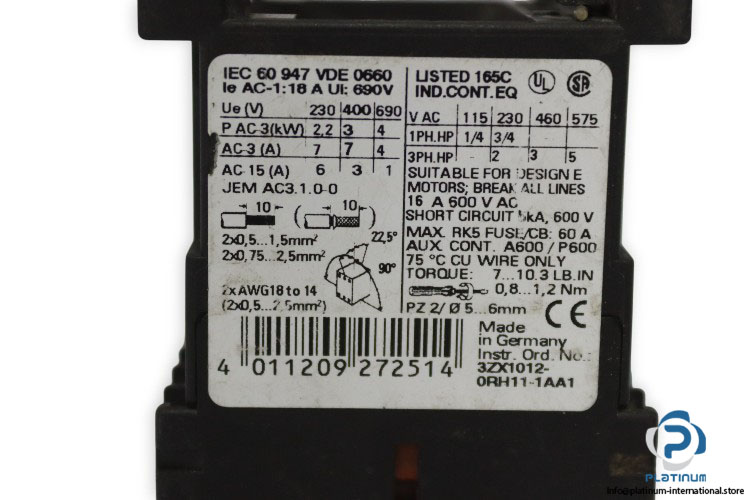

| Standard | IEC 60-947 / VDE 0660 |
| Rated Frequency | 50/60 Hz |
| Rated Operational Power at 400 VAC | 11 kW |
| Dimensions | 45 x 36 x 67 mm |
